Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

3 part groups · 2 illustrations

Illustrations

Figure ME5006A

ME5006A 1970-12 → 1975-09

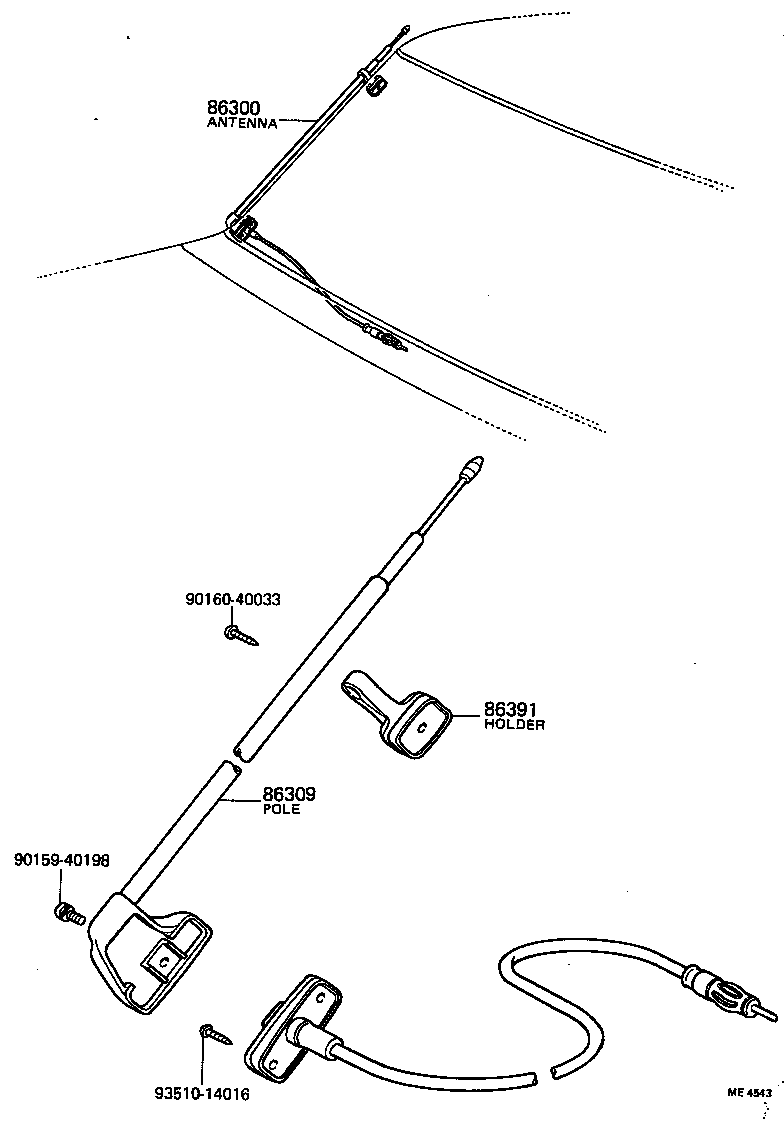

Figure ME4543

ME4543 1975-10 → 1977-07

Part groups

PNC	Description
86300	Antenna Assy, W/Holder
86309	Pole Sub-assy, Pillar Antenna
86391	Holder, Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
