Factory parts data · Europe

Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

3 part groups · 4 illustrations

Illustrations

Figure ME4986

ME4986 1970-12 → 1972-07

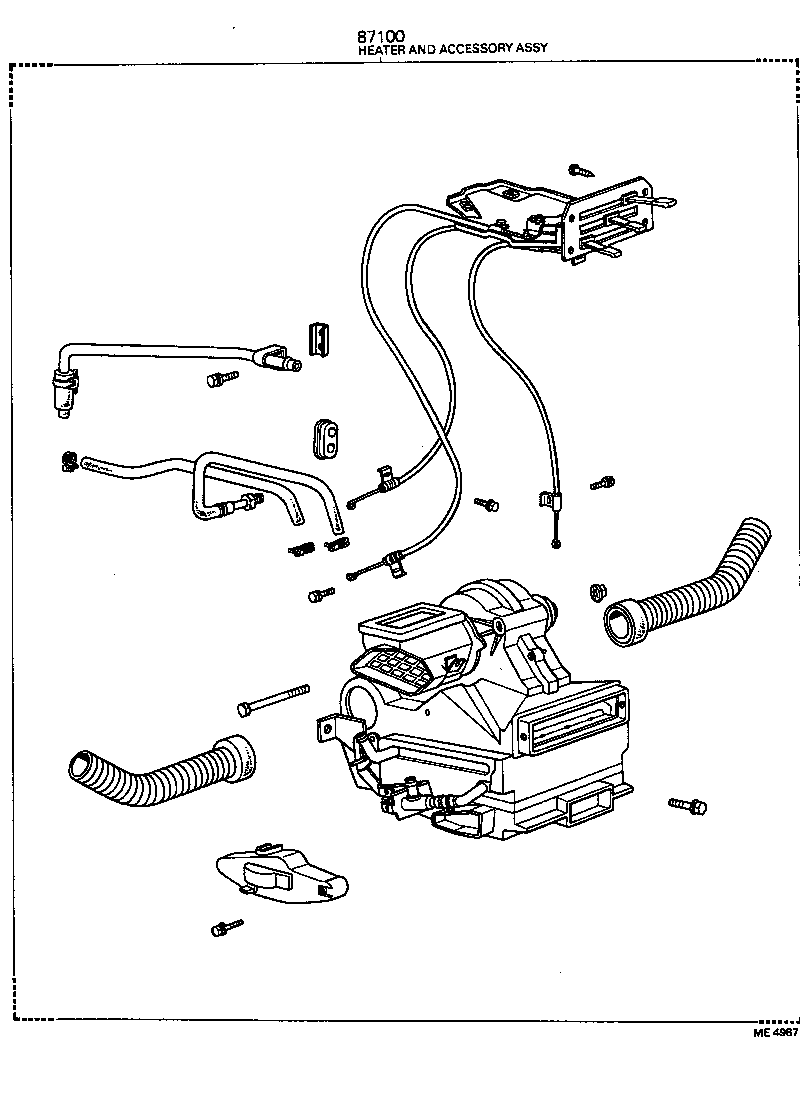

Figure ME4987

ME4987 1972-08 → 1975-09

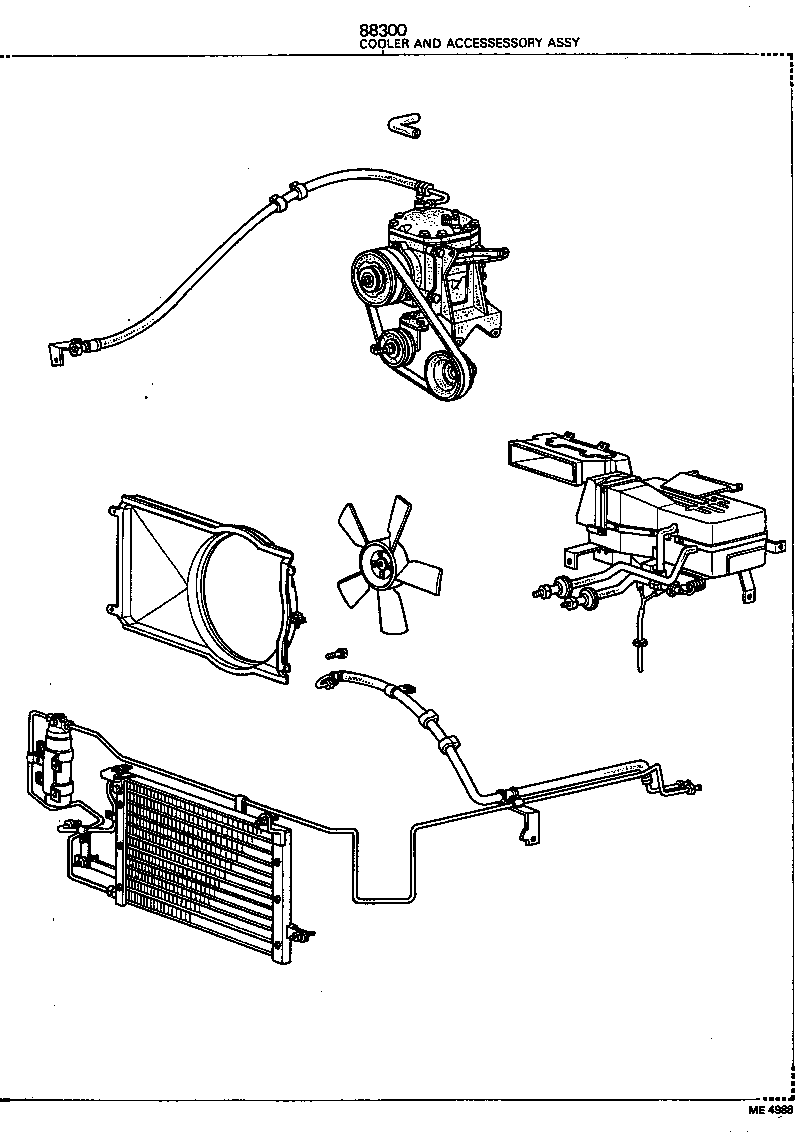

Figure ME4988

ME4988 1970-12 → 1975-09

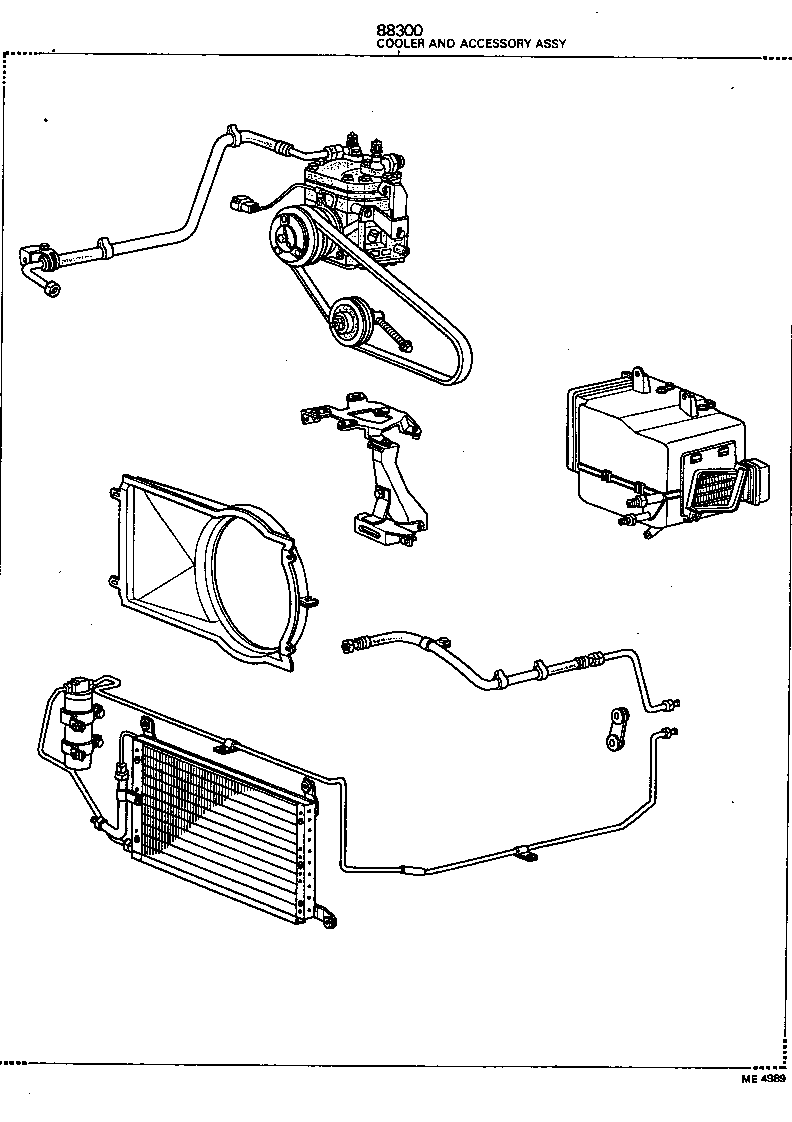

Figure ME4989

ME4989 1975-10 → 1977-07

Part groups

PNC	Description
87019	Accessory Set, Heater
87100	Heater And Accessory Assy
88300	Cooler & Accessory Assy

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
