Heating & Air Conditioning - Heater Unit & Blower

18 part groups · 5 illustrations

Illustrations

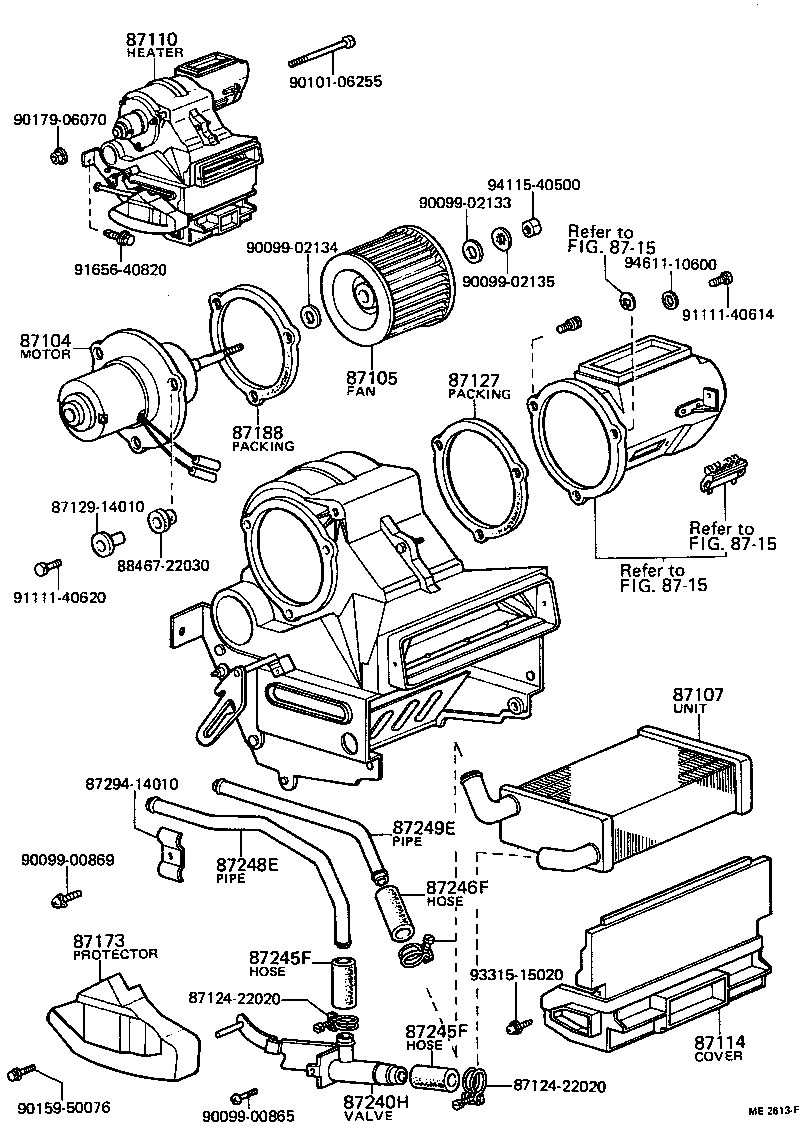

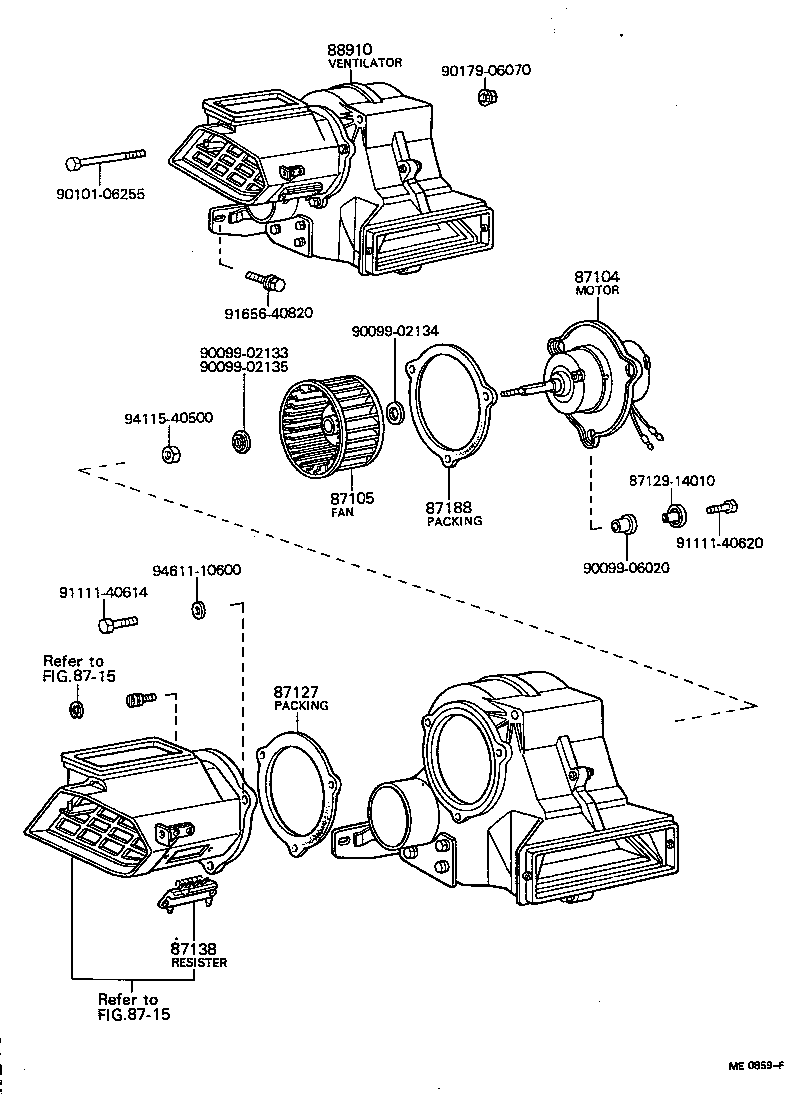

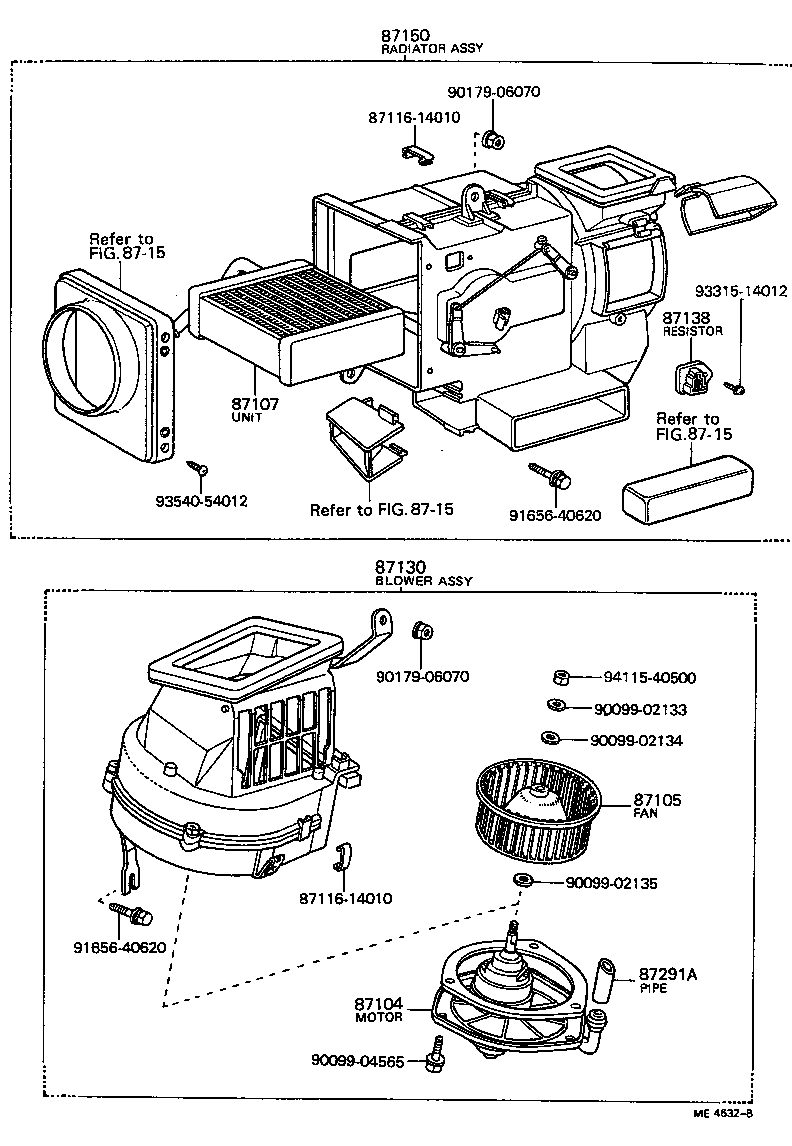

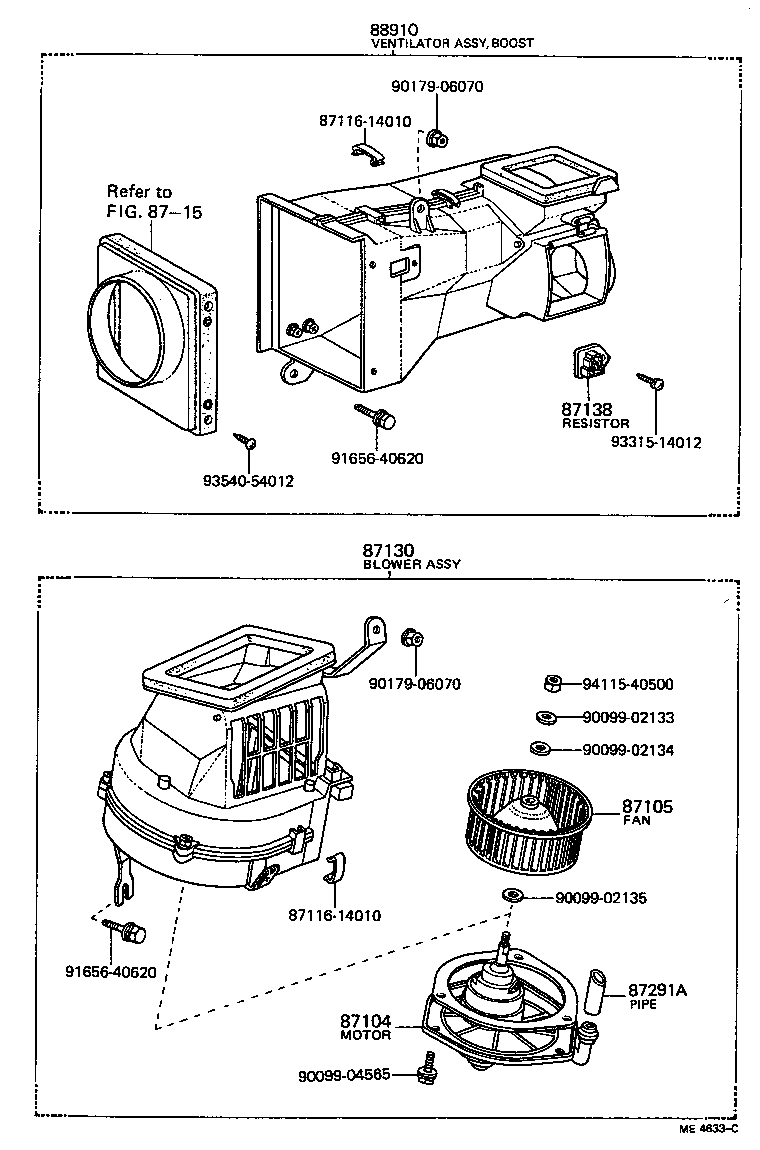

Figure ME1772E ME1772E 1970-12 → 1975-09 Figure ME2613F ME2613F 1970-12 → 1975-09 Figure ME0859F ME0859F 1970-12 → 1975-09 Figure ME4632B ME4632B 1975-10 → 1977-07 Figure ME4633C ME4633C 1975-10 → 1977-07

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87114 Cover, Heater
87127 Packing, Heater Air Damper
87130 Blower Assy, Heater, Front
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87173 Protector, Water Valve, Heater
87188 Packing, Heater Blower Motor
87240H Valve Assy, Water Unit
87245F Hose, Heater Water, Inlet F
87246F Hose, Heater Water, Outlet F
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
87291A Pipe, Air
88910 Ventilator Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
