Toyota Carina
1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe
Discontinued model
Data version 1977-09

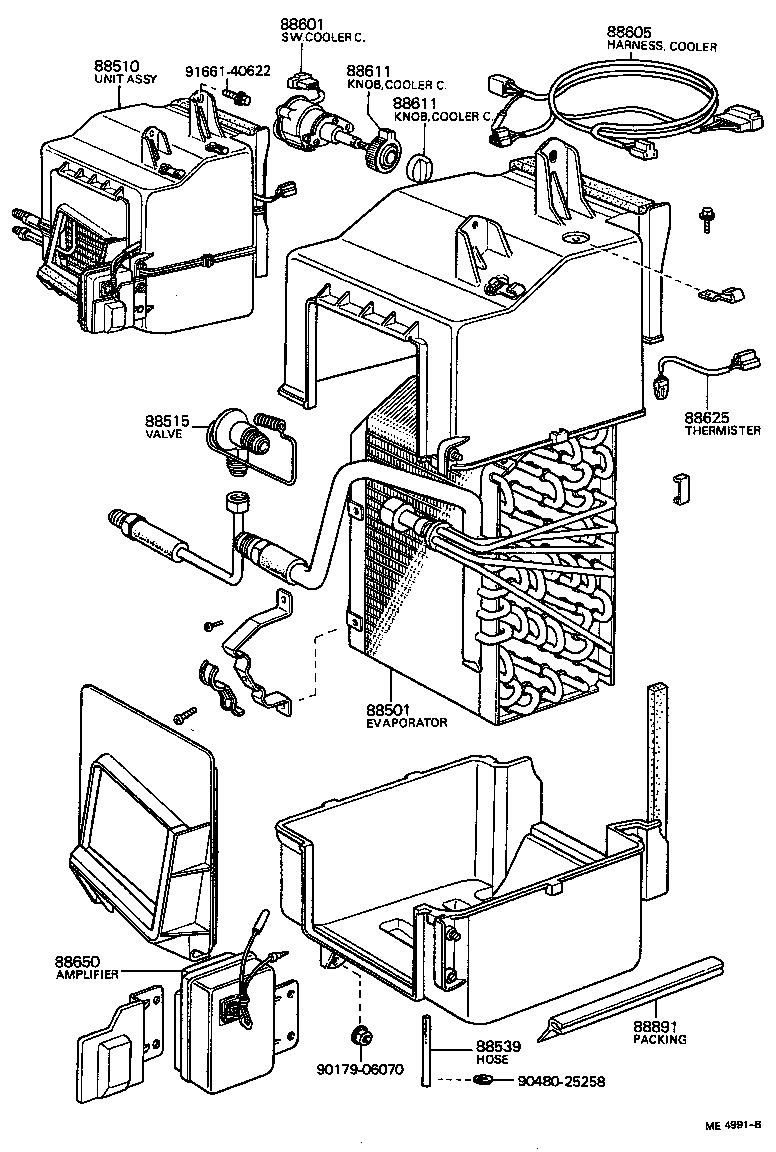

Heating & Air Conditioning - Cooler Unit
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88510 | Unit Assy, Cooler |
| 88515 | Valve, Cooler Expansion |
| 88521 | Case, Cooler Unit |
| 88536 | Bracket, Cooling Unit, NO.1 |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88539A | Wire, Drain Hose(FOR COOLER) |
| 88539B | Connector, Cooler Drain Hose |
| 88560 | Grille Assy, Cooler Air Inlet |
| 88561 | Cover, Cooler Unit |
| 88568 | Filter, Cooler Unit Cover |
| 88570 | Grille Sub-assy, Cooler Air Outlet |
| 88571 | Grille, Air Outlet |
| 88601 | Switch Sub-assy, Cooler Control |
| 88601E | Retainer, Cooler Control Switch Lever |
| 88605 | Harness Sub-assy, Cooler Wiring, NO.1 |
| 88610 | Switch Assy, Cooler Control |
| 88610A | Actuater (FOR COOLER CONTROL SWITCH) |
| 88611 | Knob, Cooler Control Switch |
| 88625 | Thermistor, Cooler, NO.1 |
| 88648 | Wiring, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88891 | Packing (FOR COOLER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
