Heating & Air Conditioning - Control & Air Duct

25 part groups · 3 illustrations

Illustrations

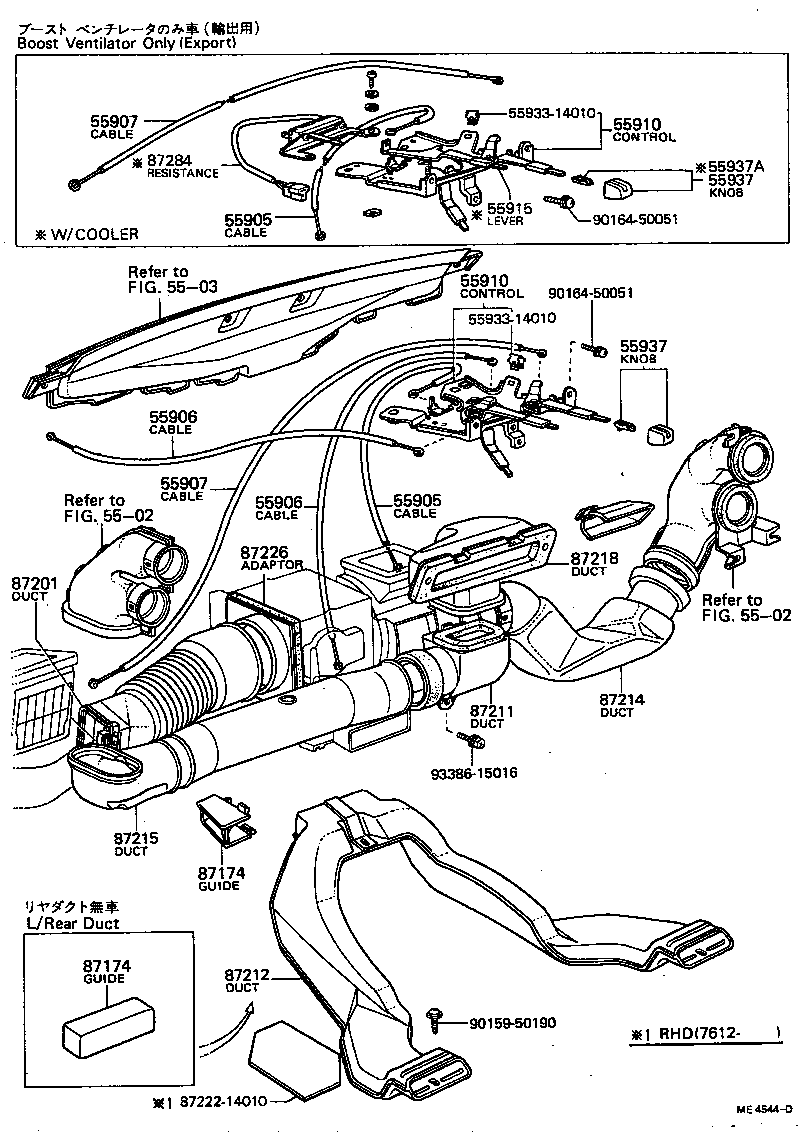

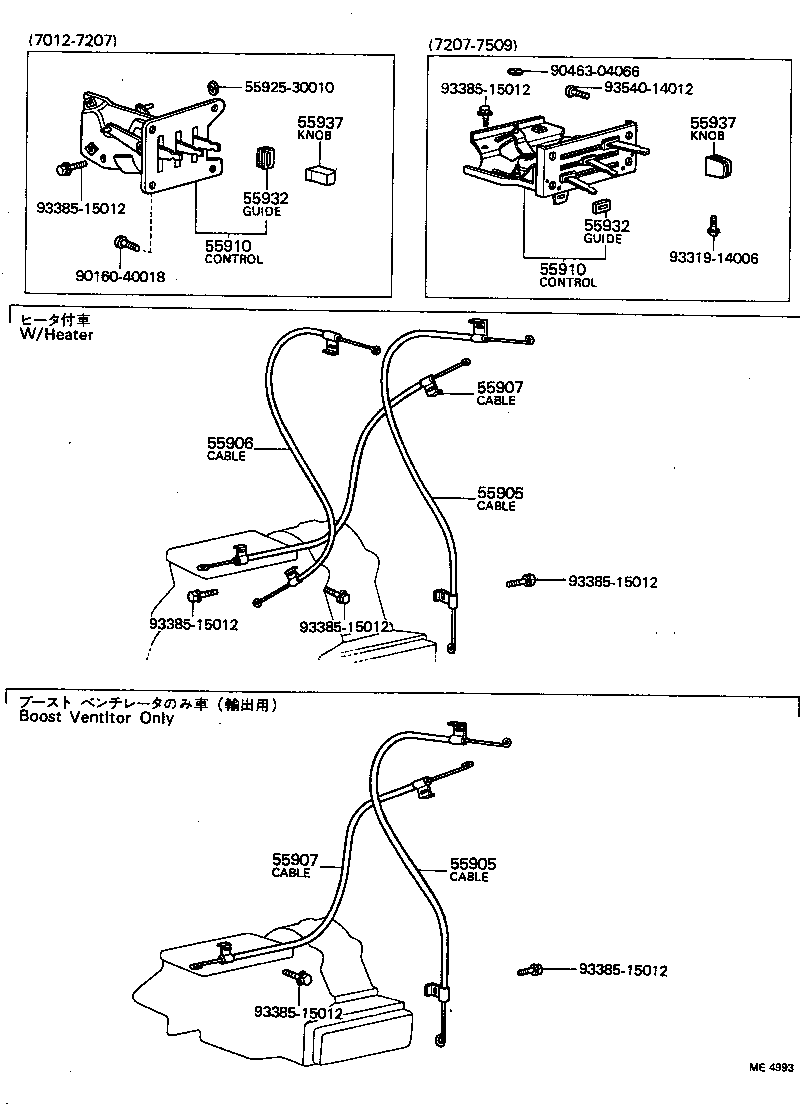

Figure ME4992A ME4992A 1970-12 → 1975-09 Figure ME4993 ME4993 1970-12 → 1975-09 Figure ME4544D ME4544D 1975-10 → 1977-07

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55915 Lever, Cooler Control
55932 Guide, Lever, NO.1
55937 Knob, Heater Control Lever
55937A Knob, Cooler Control Lever
87125 Louver, Ventilation
87174 Guide, Air Duct
87201 Duct Sub-assy, Air, NO.1
87210 Damper Assy, Air
87210A Ring, Snap(FOR HEATER AIR DAMPER)
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87224 Guide, Air Duct, RH
87225 Guide, Air Duct, LH
87226 Adapter, Air Duct
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87284 Resistor Sub-assy, Variable
