Toyota Carina

1970-12 → 1977-07 · chassis TA1# · catalogue 221210 · Europe

Discontinued model Data version 1977-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

15 part groups · 3 illustrations

Illustrations

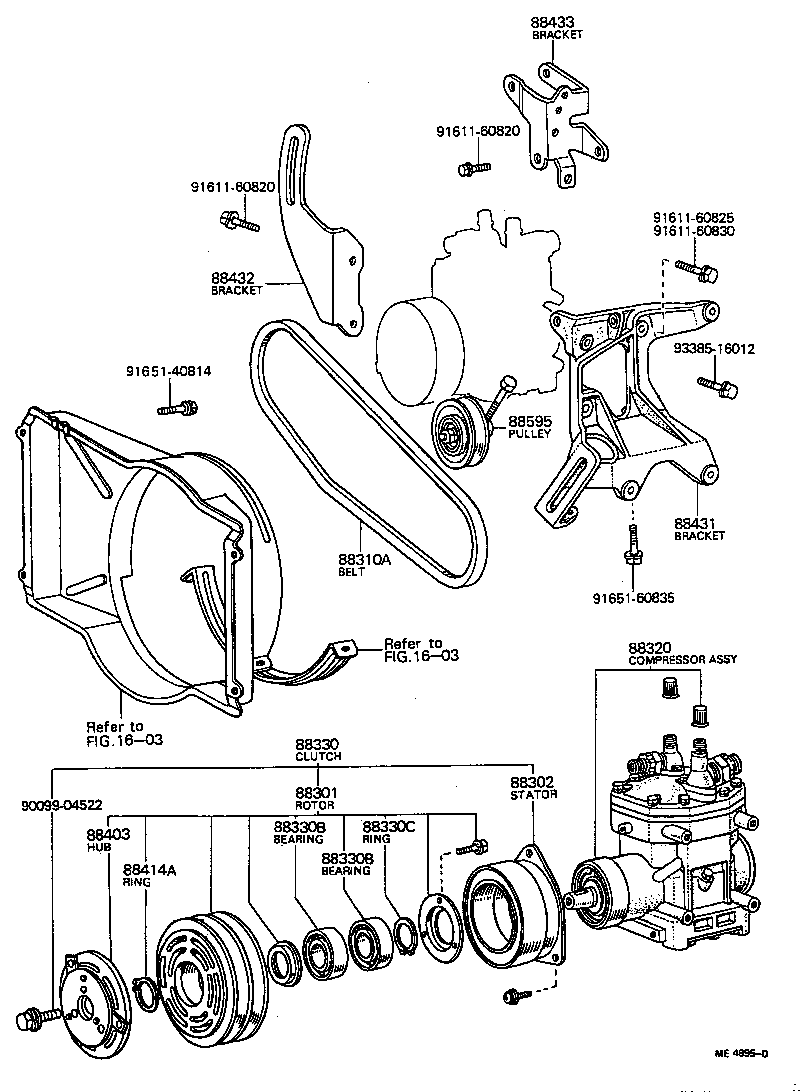

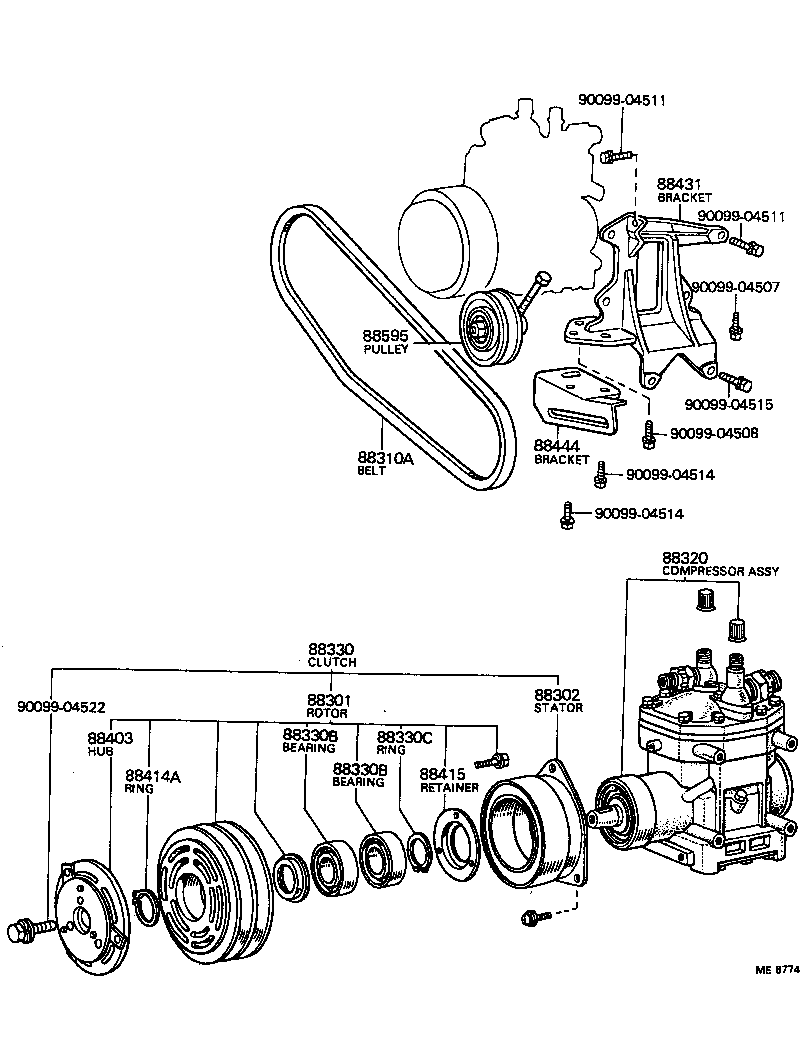

Figure ME0863E ME0863E 1970-12 → 1974-01 Figure ME6774 ME6774 1974-01 → 1975-09 Figure ME4995D ME4995D 1975-10 → 1977-07

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330 Clutch Assy, Magnet
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88413 Pulley Sub-assy, Magnet Clutch
88414 Ring, Shield
88414A Ring, Shield Snap
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
