Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

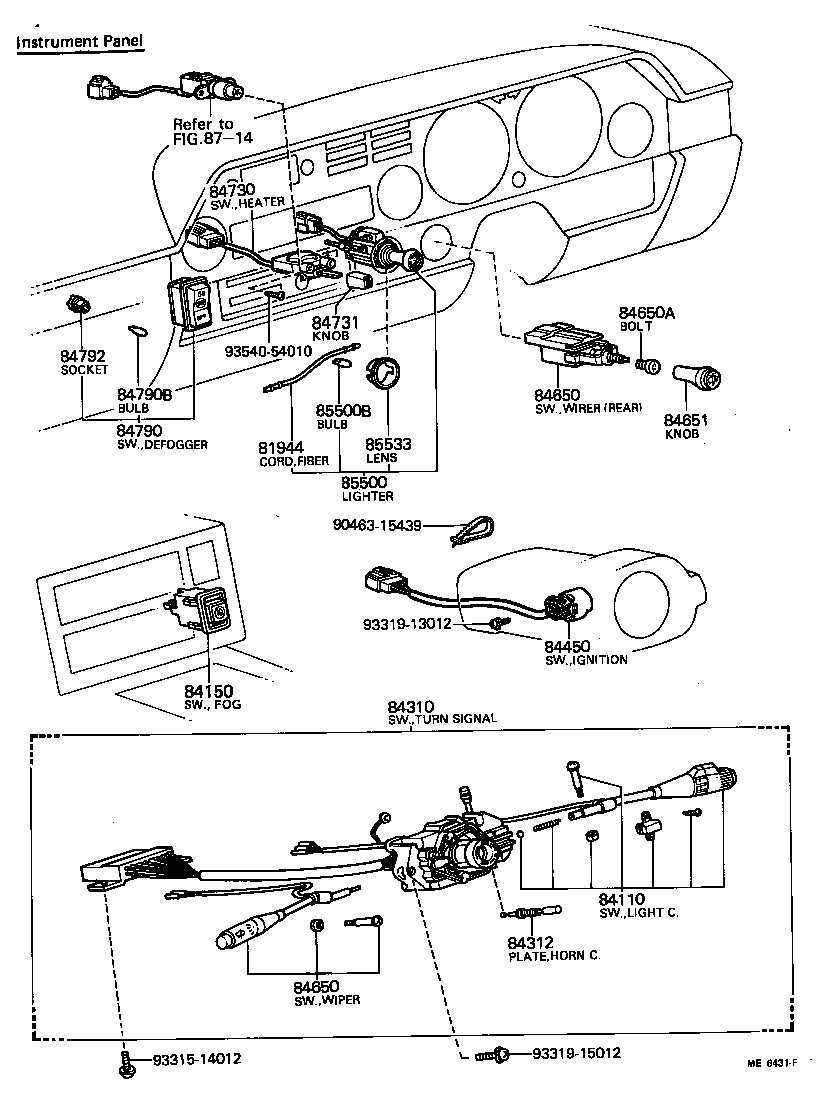

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81944 — Cord, Optical Fiber | ||||
| 81944-20021 |
Cord, Optical Fiber
1978-11 → 1981-07
ended
|
TA4# | — | |
| 81944-20021 |
Cord, Optical Fiber
1977-08 → 1978-11
ended
|
TA40 DLX,GL,ST | — | |
| 84110 — Switch Assy, Light Control, NO.1 | ||||
| 84112-19015 |
Switch Assy, Light Control, NO.1
1977-08 → 1977-12
ended
|
TA40 RHD | — | |
| 84112-19016 |
Switch Assy, Light Control, NO.1
1977-12 → 1979-08
ended
|
TA40 RHD | — | |
| 84112-19025 |
Switch Assy, Light Control, NO.1
1977-08 → 1977-12
ended
|
TA40 LHD | — | |
| 84112-19026 |
Switch Assy, Light Control, NO.1
1977-12 → 1979-08
ended
|
TA40 LHD | — | |
| 84112-19215 |
Switch Assy, Light Control, NO.1
1979-08 → 1980-08
ended
|
TA40 RHD | — | |
| 84112-19216 |
Switch Assy, Light Control, NO.1
1980-08 → 1981-07
ended
|
TA4# RHD | — | |
| 84112-19235 |
Switch Assy, Light Control, NO.1
1979-08 → 1980-08
ended
|
TA4# LHD | — | |
| 84112-19236 |
Switch Assy, Light Control, NO.1
1980-08 → 1981-07
ended
|
TA4# LHD | — | |
| 84150 — Switch Assy, Fog Lamp | ||||
| 84160-14020 |
Switch Assy, Fog Lamp
1979-08 → 1981-07
ended
|
TA4# RHD EUG | — | |
| 84310 — Switch Assy, Turn Signal | ||||
| 84310-12141 |
Switch Assy, Turn Signal
1977-08 → 1979-08
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84310-12221 |
Switch Assy, Turn Signal
1977-08 → 1979-08
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84310-12240 note |
Switch Assy, Turn Signal
1977-08 → 1979-08
ended
|
TA40 RHD (GL,ST) | — | |
| 84310-12260 note |
Switch Assy, Turn Signal
1977-08 → 1979-08
ended
|
TA40 LHD EUR | — | |
| 84310-12260 note |
Switch Assy, Turn Signal
1977-08 → 1979-08
ended
|
TA40 LHD (GL,ST) | — | |
| 84310-14091 note |
Switch Assy, Turn Signal
1979-08 → 1980-08
ended
|
TA40 RHD (GL,ST) | — | |
| 84310-14092 note |
Switch Assy, Turn Signal
1980-08 → 1981-07
ended
|
TA4# RHD GL | — | |
| 84310-14101 |
Switch Assy, Turn Signal
1979-08 → 1980-08
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84310-14102 |
Switch Assy, Turn Signal
1980-08 → 1981-07
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84310-14141 note |
Switch Assy, Turn Signal
1979-08 → 1980-08
ended
|
TA40 LHD (GL,ST) | — | |
| 84310-14142 note |
Switch Assy, Turn Signal
1980-08 → 1981-07
ended
|
TA4# LHD (GL,ST) | — | |
| 84310-14151 |
Switch Assy, Turn Signal
1979-08 → 1980-08
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84310-14152 |
Switch Assy, Turn Signal
1980-08 → 1981-07
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84312 — Plate, Horn Contact | ||||
| 84312-20011 |
Plate, Horn Contact
1977-08 → 1981-07
ended
|
TA4# | — | |
| 84450 — Switch Assy, Ignition OR Starter | ||||
| 84450-14021 |
Switch Assy, Ignition OR Starter
1977-08 → 1981-07
ended
|
TA4# | — | |
| 84650 — Switch Assy, Windshield Wiper | ||||
| 84652-19015 |
Switch Assy, Windshield Wiper
1977-08 → 1977-12
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84652-19016 |
Switch Assy, Windshield Wiper
1977-12 → 1979-08
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84652-19025 note |
Switch Assy, Windshield Wiper
1977-08 → 1977-12
ended
|
TA40 RHD (GL,ST) | — | |
| 84652-19026 note |
Switch Assy, Windshield Wiper
1977-12 → 1979-08
ended
|
TA40 RHD (GL,ST) | — | |
| 84652-19035 |
Switch Assy, Windshield Wiper
1977-08 → 1977-12
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84652-19036 |
Switch Assy, Windshield Wiper
1977-12 → 1979-08
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84652-19045 note |
Switch Assy, Windshield Wiper
1977-08 → 1977-12
ended
|
TA40 LHD EUG | — | |
| 84652-19045 note |
Switch Assy, Windshield Wiper
1977-08 → 1977-12
ended
|
TA40 LHD (GL,ST) | — | |
| 84652-19046 note |
Switch Assy, Windshield Wiper
1977-12 → 1979-08
ended
|
TA40 LHD EUR | — | |
| 84652-19046 note |
Switch Assy, Windshield Wiper
1977-12 → 1979-08
ended
|
TA40 LHD (GL,ST) | — | |
| 84652-19245 |
Switch Assy, Windshield Wiper
1979-08 → 1980-08
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84652-19246 |
Switch Assy, Windshield Wiper
1980-08 → 1981-07
ended
|
TA40 RHD (DLX,STD) GEN | — | |
| 84652-19255 |
Switch Assy, Windshield Wiper
1979-08 → 1980-08
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84652-19256 |
Switch Assy, Windshield Wiper
1980-08 → 1981-07
ended
|
TA40 LHD (DLX,STD) GEN | — | |
| 84652-19275 note |
Switch Assy, Windshield Wiper
1979-08 → 1980-08
ended
|
TA40 LHD (GL,ST) | — | |
| 84652-19276 note |
Switch Assy, Windshield Wiper
1980-08 → 1981-07
ended
|
TA4# LHD (GL,ST) | — | |
| 84652-19285 note |
Switch Assy, Windshield Wiper
1979-08 → 1980-08
ended
|
TA40 RHD (GL,ST) | — | |
| 84652-19286 note |
Switch Assy, Windshield Wiper
1980-08 → 1981-07
ended
|
TA4# RHD GL | — | |
| 84653-31010 note |
Switch Assy, Windshield Wiper
1977-08 → 1981-07
ended
|
TA4# WG | — | |
| 84650A — Bolt OR Nut, Windshield Wiper Switch Set | ||||
| 90179-11189 note |
Bolt OR Nut, Windshield Wiper Switch Set
1977-08 → 1981-07
ended
|
TA4# WG | — | |
| 84651 — Knob, Windshield Wiper Switch | ||||
| 84651-21010 note |
Knob, Windshield Wiper Switch
1977-08 → 1981-07
ended
|
TA4# WG | — | |
| 84730 — Switch Assy, Heater Blower | ||||
| 84732-14050 |
Switch Assy, Heater Blower
1977-08 → 1979-08
ended
|
TA40 | — | |
| 84732-14100 |
Switch Assy, Heater Blower
1979-08 → 1980-08
ended
|
TA4# | — | |
| 84732-14100 |
Switch Assy, Heater Blower
1980-08 → 1981-07
ended
|
TA40 RHD | — | |
| 84732-14130 |
Switch Assy, Heater Blower
1980-08 → 1981-07
ended
|
TA4# LHD | — | |
| 84731 — Knob, Heater Blower Switch | ||||
| 55905-22050 |
Knob, Heater Blower Switch
1977-08 → 1981-07
ended
|
TA4# | — | |
| 84790 — Switch Assy, Rear Window Defogger | ||||
| 84790-14060 |
Switch Assy, Rear Window Defogger
1977-08 → 1977-10
ended
|
TA40 | — | |
| 84790-14070 |
Switch Assy, Rear Window Defogger
1977-10 → 1981-07
ended
|
TA4# | — | |
| 84790B — Bulb(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 90981-11018 note |
Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
1977-08 → 1981-07
ended
|
TA4# | — | |
| 84792 — Socket Sub-assy, Rear Window Defogger Switch | ||||
| 83101-14010 |
Socket Sub-assy, Rear Window Defogger Switch
1977-08 → 1981-07
ended
|
TA40 | — | |
| 85500 — Lighter Assy, Cigarette | ||||
| 85500-14030 |
Lighter Assy, Cigarette
1977-08 → 1978-04
ended
|
TA40 DLX,GL,ST | — | |
| 85500-14040 |
Lighter Assy, Cigarette
1978-04 → 1978-08
ended
|
TA40 STD | — | |
| 85500-14041 |
Lighter Assy, Cigarette
1978-08 → 1978-11
ended
|
TA40 STD EUG | — | |
| 85500-14050 |
Lighter Assy, Cigarette
1978-04 → 1978-08
ended
|
TA40 DLX,GL,ST | — | |
| 85500-14051 |
Lighter Assy, Cigarette
1978-08 → 1978-11
ended
|
TA40 (DLX,GL,ST) EUG | — | |
| 85500-14051 |
Lighter Assy, Cigarette
1978-11 → 1979-08
ended
|
TA40 EUG | — | |
| 85500-14052 |
Lighter Assy, Cigarette
1979-08 → 1981-07
ended
|
TA4# EUG | — | |
| 85500-14060 |
Lighter Assy, Cigarette
1978-08 → 1978-11
ended
|
TA40 STD GEN | — | |
| 85500-14070 |
Lighter Assy, Cigarette
1978-08 → 1978-11
ended
|
TA40 (DLX,GL,ST) GEN | — | |
| 85500-14070 |
Lighter Assy, Cigarette
1978-11 → 1979-08
ended
|
TA40 GEN | — | |
| 85500-14071 |
Lighter Assy, Cigarette
1979-08 → 1981-07
ended
|
TA40 GEN | — | |
| 85500-30231 |
Lighter Assy, Cigarette
1977-08 → 1978-04
ended
|
TA40 STD | — | |
| 85500B — Bulb, Cigarette Lighter | ||||
| 99132-11034 note |
Bulb, Cigarette Lighter
1977-08 → 1978-11
ended
|
TA40 DLX,GL,ST | — | |
| 99132-11034 note |
Bulb, Cigarette Lighter
1978-11 → 1981-07
ended
|
TA4# | — | |
| 85533 — Lens, Cigarette Lighter Indicator | ||||
| 85533-14010 |
Lens, Cigarette Lighter Indicator
1978-04 → 1981-07
ended
|
TA4# | — | |
| 85533-20010 |
Lens, Cigarette Lighter Indicator
1977-08 → 1978-04
ended
|
TA40 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
