Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

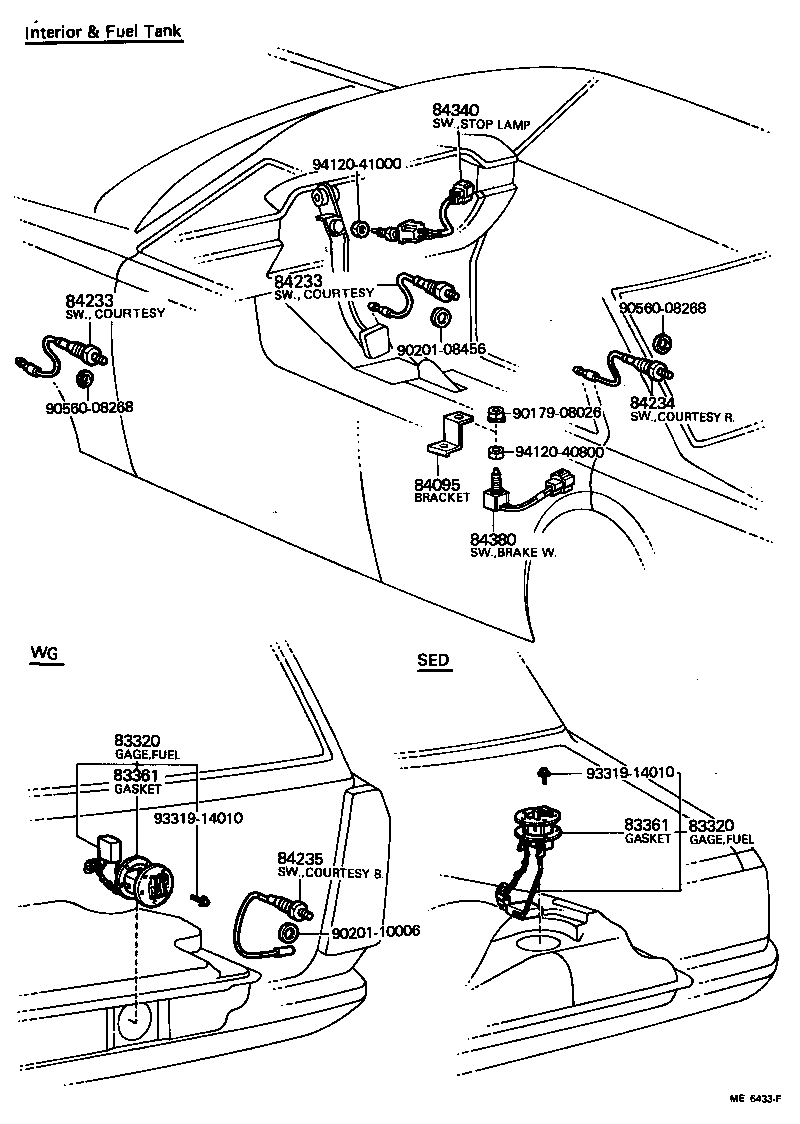

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-19295 |
Gage Assy, Fuel Sender
1977-08 → 1977-11
ended
|
TA40 SED | — | |
| 83320-19296 |
Gage Assy, Fuel Sender
1977-11 → 1979-12
ended
|
TA4# SED | — | |
| 83320-19297 |
Gage Assy, Fuel Sender
1979-12 → 1980-08
ended
|
TA4# SED | — | |
| 83320-19297 |
Gage Assy, Fuel Sender
1980-08 → 1981-06
ended
|
TA4# SED EUG | — | |
| 83320-19298 |
Gage Assy, Fuel Sender
1981-06 → 1981-07
ended
|
TA4# SED EUG | — | |
| 83320-19315 |
Gage Assy, Fuel Sender
1977-08 → 1980-08
ended
|
TA4# WG | — | |
| 83320-19315 |
Gage Assy, Fuel Sender
1980-08 → 1981-07
ended
|
TA40 WG GEN | — | |
| 83320-19495 |
Gage Assy, Fuel Sender
1980-08 → 1981-07
ended
|
TA40 4DS GEN | — | |
| 83320-19495 note |
Gage Assy, Fuel Sender
1980-08 → 1981-07
ended
|
TA4# LHD SED EUR | — | |
| 83320-19525 |
Gage Assy, Fuel Sender
1980-08 → 1981-07
ended
|
TA4# WG EUR | — | |
| 83361 — Gasket, Fuel Sender Gage | ||||
| 77169-14020 |
Gasket, Fuel Sender Gage
1979-12 → 1981-07
ended
|
TA4# | — | |
| 83361-20030 |
Gasket, Fuel Sender Gage
1977-08 → 1979-12
ended
|
TA4# | — | |
| 84095 — Bracket Sub-assy, Hand Brake Signal Switch | ||||
| 84956-14010 |
Bracket Sub-assy, Hand Brake Signal Switch
1979-08 → 1981-07
ended
|
TA4# | — | |
| 84956-20030 |
Bracket Sub-assy, Hand Brake Signal Switch
1977-08 → 1979-08
ended
|
TA40 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84230-20020 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1977-08 → 1979-08
ended
|
TA40 | — | |
| 84230-20100 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1980-01 → 1981-07
ended
|
TA4# | — | |
| 84231-20040 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
1979-08 → 1980-01
ended
|
TA4# | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84230-12080 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1981-06 → 1981-07
ended
|
TA4# 4D | — | |
| 84230-20020 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
1977-08 → 1981-06
ended
|
TA4# 4D | — | |
| 84235 — Switch Assy, Courtesy Lamp(FOR BACK DOOR) | ||||
| 84230-15010 |
Switch Assy, Courtesy Lamp(FOR BACK DOOR)
1977-08 → 1981-07
ended
|
TA4# WG | — | |
| 84340 — Switch Assy, Stop Lamp | ||||
| 84340-22060 |
Switch Assy, Stop Lamp
1977-08 → 1981-02
ended
|
TA4# | — | |
| 84340-36030 |
Switch Assy, Stop Lamp
1981-02 → 1981-07
ended
|
TA4# | — | |
| 84380 — Switch Assy, Brake Warning Test | ||||
| 84380-20010 |
Switch Assy, Brake Warning Test
1977-08 → 1981-07
ended
|
TA4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
