Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

21 part groups · 2 illustrations

Illustrations

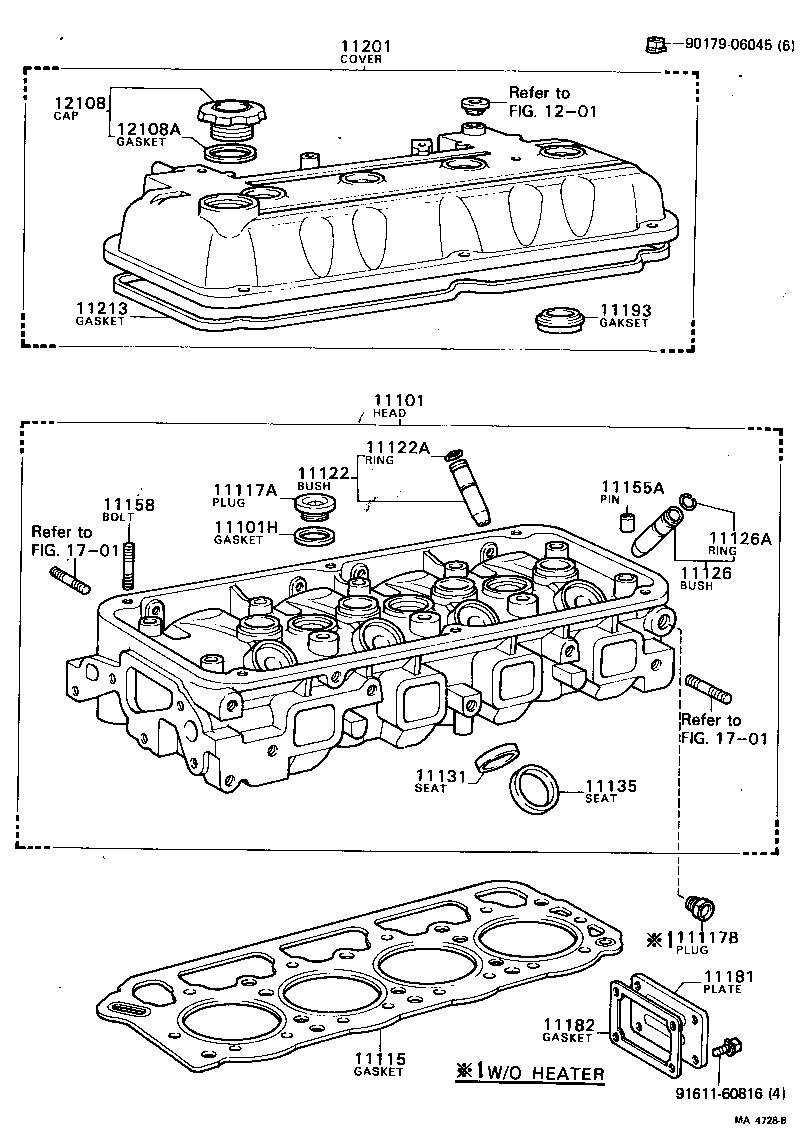

Figure MA2977D MA2977D 1977-08 → 1980-08 Figure MA4728B MA4728B 1980-08 → —

Part groups

PNCDescription
11101 Head Sub-assy, Cylinder
11101H Gasket(FOR CYLINDER HEAD SCREW PLUG)
11115 Gasket, Cylinder Head
11117A Plug, W/Head Taper Screw, NO.1
11117B Plug, W/Head Taper Screw, NO.2
11122 Bush, Intake Valve Guide
11122A Ring, Shaft Snap (FOR VALVE GUIDE BUSH)
11126 Bush, Exhaust Valve Guide
11126A Ring, Shaft Snap(FOR VALVE GUIDE BUSH)
11131 Seat, Intake Valve
11135 Seat, Exhaust Valve
11155A Pin, Ring W/Head
11158 Bolt, Stud(FOR HEAD TO CYLINDER HEAD COVER)
11181 Plate, Cylinder Head, Rear
11182 Gasket, Cylinder Head Rear Plate
11193 Gasket, Spark Plug Tube
11201 Cover Sub-assy, Cylinder Head
11213 Gasket, Cylinder Head Cover
11221 Separator, Cylinder Head Cover, NO.1
12108 Cap Sub-assy, Oil Filler
12108A Gasket(FOR OIL FILLER CAP)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
