Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

23 part groups · 4 illustrations

Illustrations

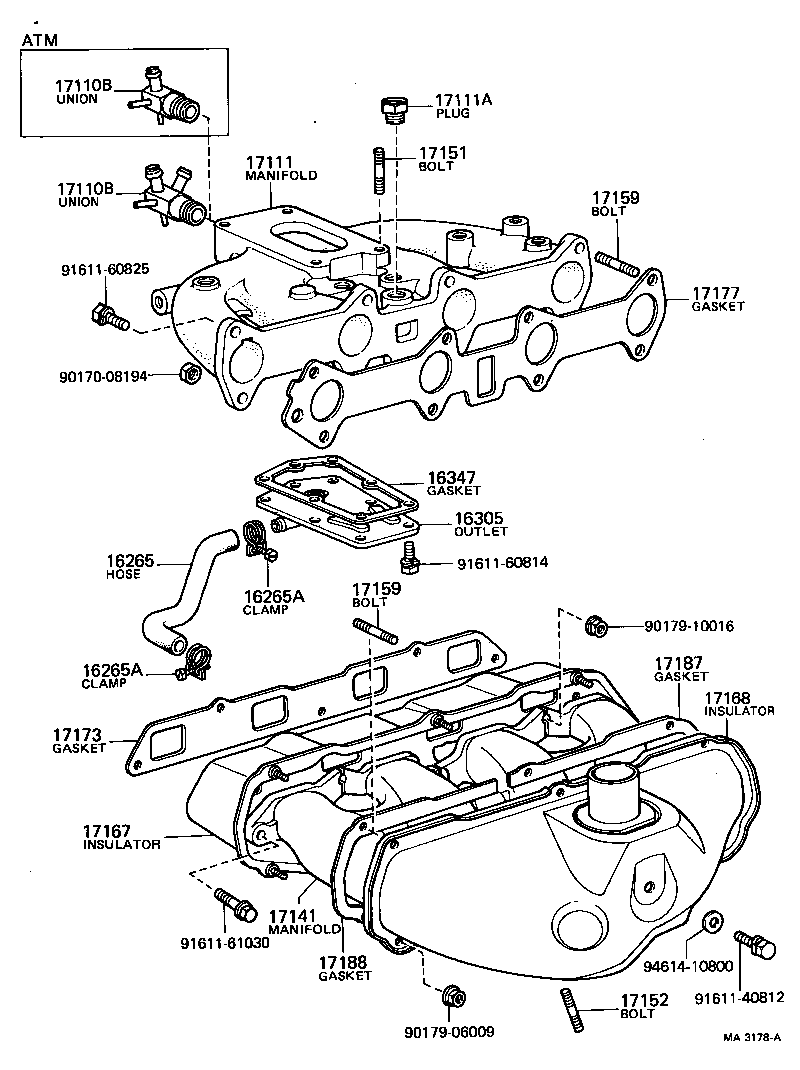

Figure MA2985D MA2985D 1977-08 → — Figure MA3178A MA3178A 1978-01 → 1979-08 Figure MA2986C MA2986C 1977-08 → — Figure MA4019B MA4019B 1979-08 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
16305 Outlet Sub-assy, Water By-pass
16305A Hose, Water By-pass Outlet
16305B Clamp, Water By-pass Outlet Hose
16305C Elbow, Water By-pass Outlet Hose
16347 Gasket, Water By-pass
16353 Flange, Water By-pass
17110B Union(FOR VENTILATION HOSE TO MANIFOLD)
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17118A Bolt, Stud(FOR MANIFOLD STAY)
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17187 Gasket, Heat Insulator, NO.1
17188 Gasket, Heat Insulator, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
