Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

18 part groups · 8 illustrations

Illustrations

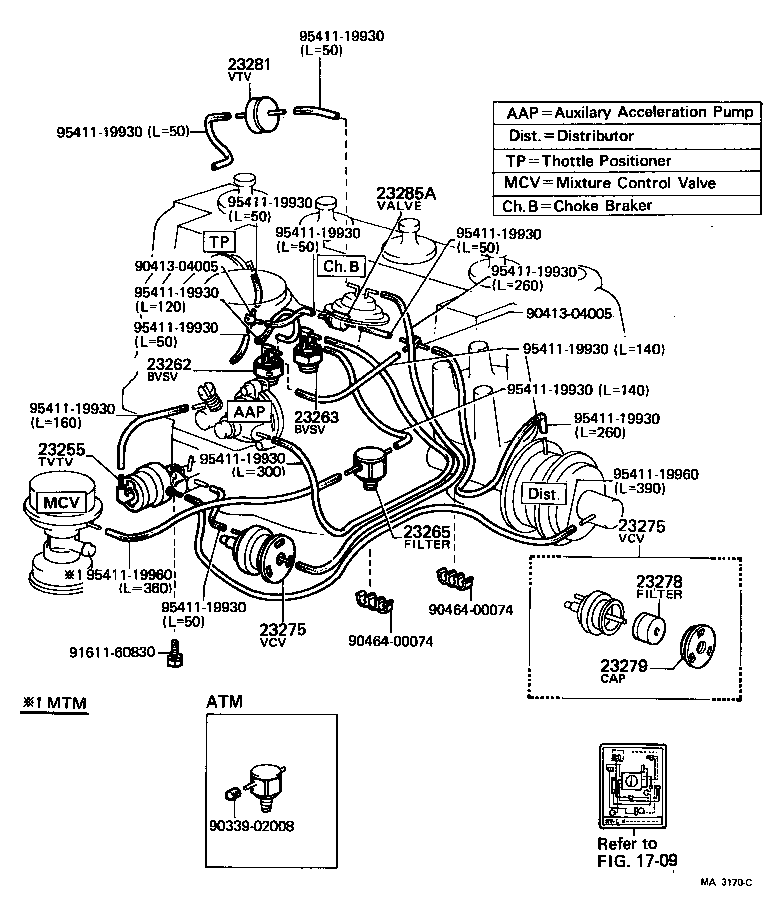

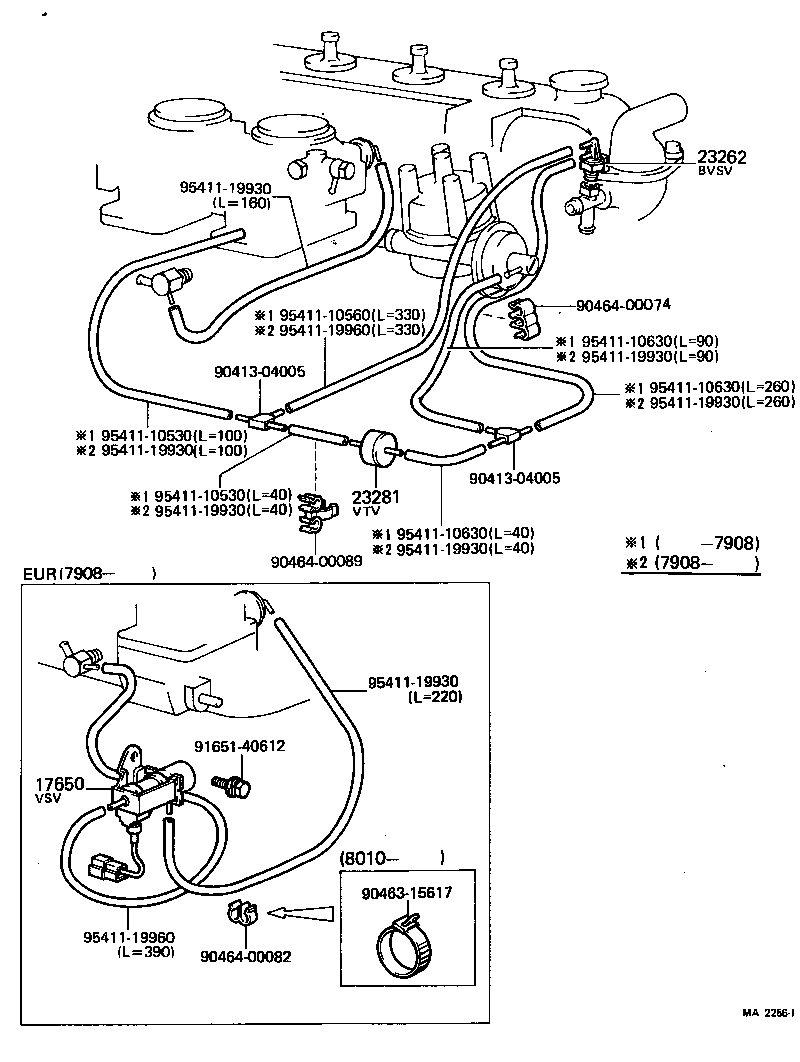

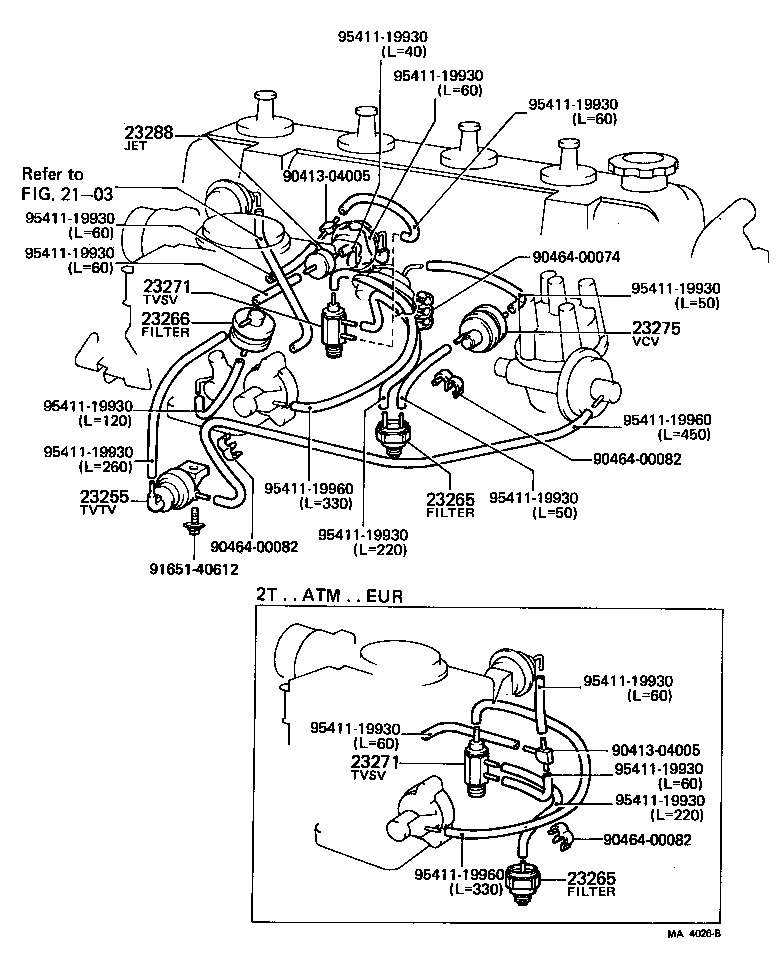

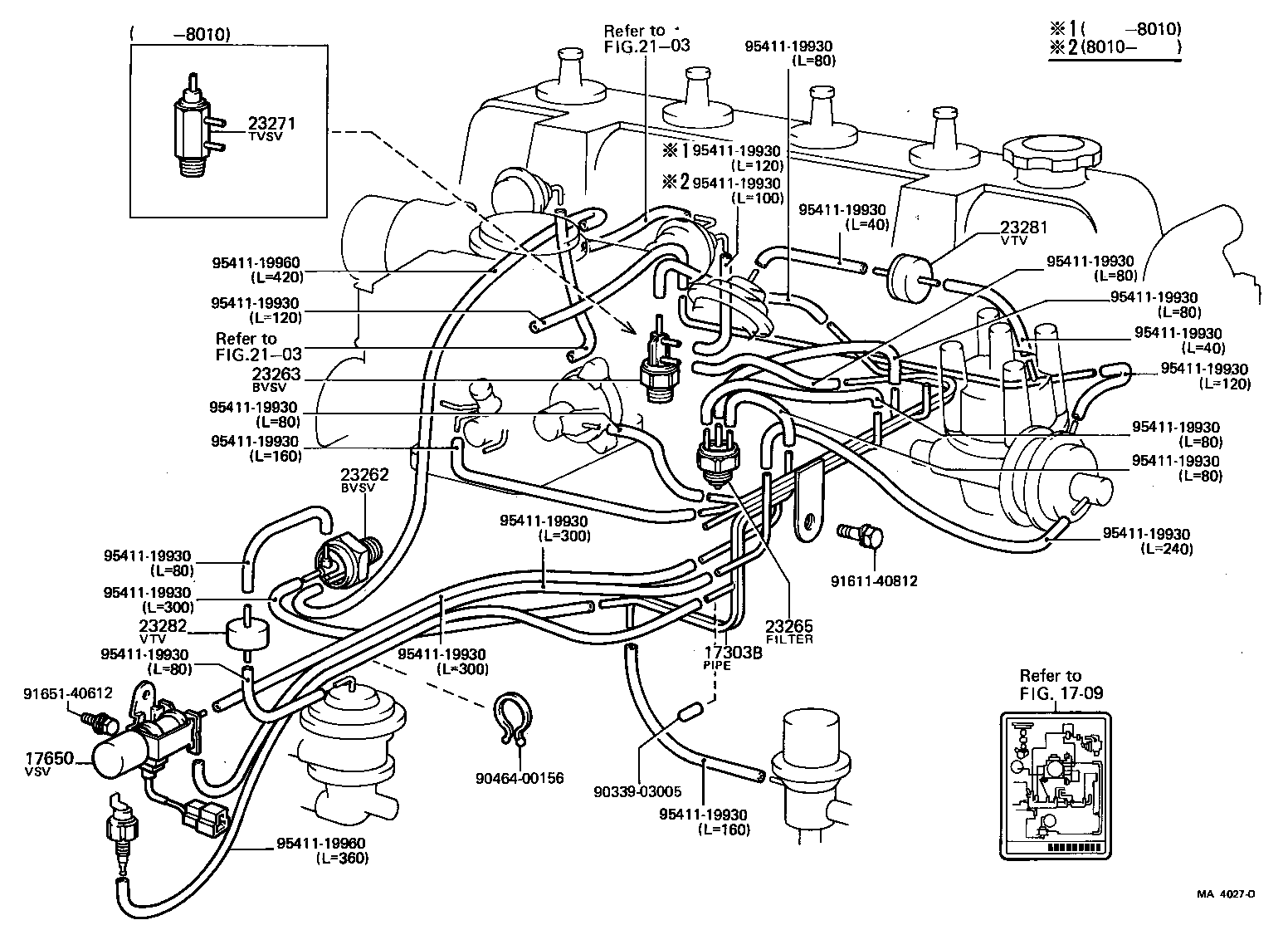

Figure MA9501 MA9501 1977-08 → — Figure MA3146A MA3146A 1977-08 → 1979-08 Figure MA4025 MA4025 1979-08 → — Figure MA4026B MA4026B 1979-08 → — Figure MA3169A MA3169A 1978-01 → 1979-08 Figure MA3170C MA3170C 1978-01 → 1979-08 Figure MA2256I MA2256I 1977-08 → — Figure MA4027D MA4027D 1979-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17680 Valve Assy, Mixture Control
17680B Hose(FOR MIXTURE CONTROL VALVE)
17681 Bracket, Mixture Control Valve
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23271 Valve, Thermostatic Vacuum Switching, NO.1
23275 Valve, Vacuum Control, NO.1
23278 Filter(FOR VACUUM CONTROL VALVE)
23279 Cap(FOR VACUUM CONTROL VALVE)
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23285A Valve, Check, NO.1
23288 Jet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
