Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

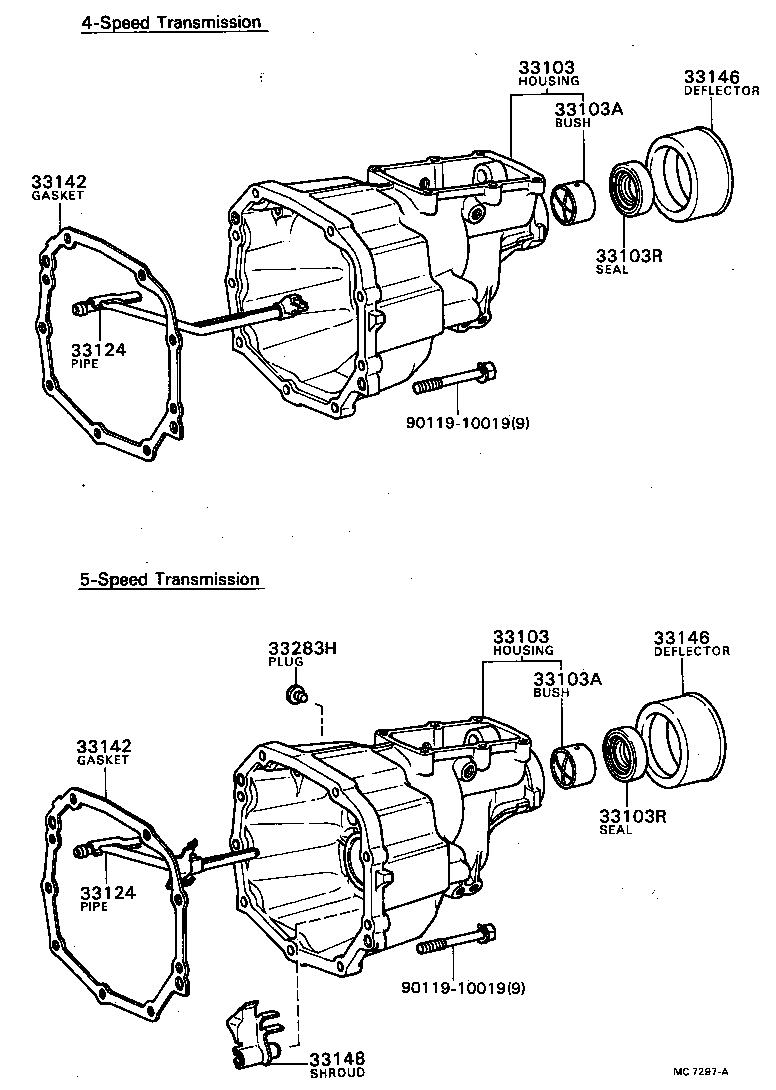

Extension Housing (MTM)
11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 33103 | Housing Sub-assy, Extension(MTM) |
| 33103A | Bush(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33103C | Plug, NO.1(FOR EXTENSION HOUSING) |
| 33103F | Gasket(FOR EXTENSION HOUSING PLUG NO.1) |
| 33103Q | Pin, Ring(FOR EXTENSION HOUSING) |
| 33103R | Seal, Oil(FOR MANUAL TRANSMISSION EXTENSION HOUSING) |
| 33124 | Pipe, Oil Receiver(MTM) |
| 33142 | Gasket, Extension Housing(MTM) |
| 33146 | Deflector, Extension Housing Dust(MTM) |
| 33148 | Shroud, Gear, NO.1 |
| 33283H | Plug, W/Head Straight Screw |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
