Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 3 illustrations

Illustrations

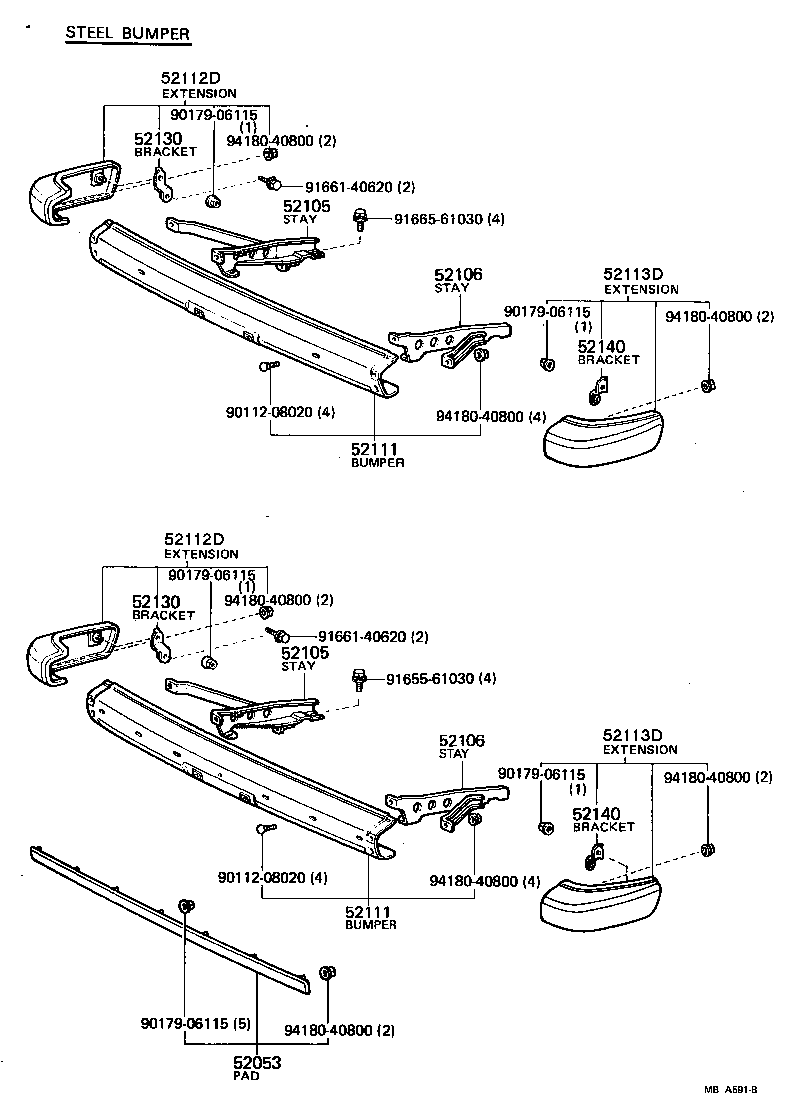

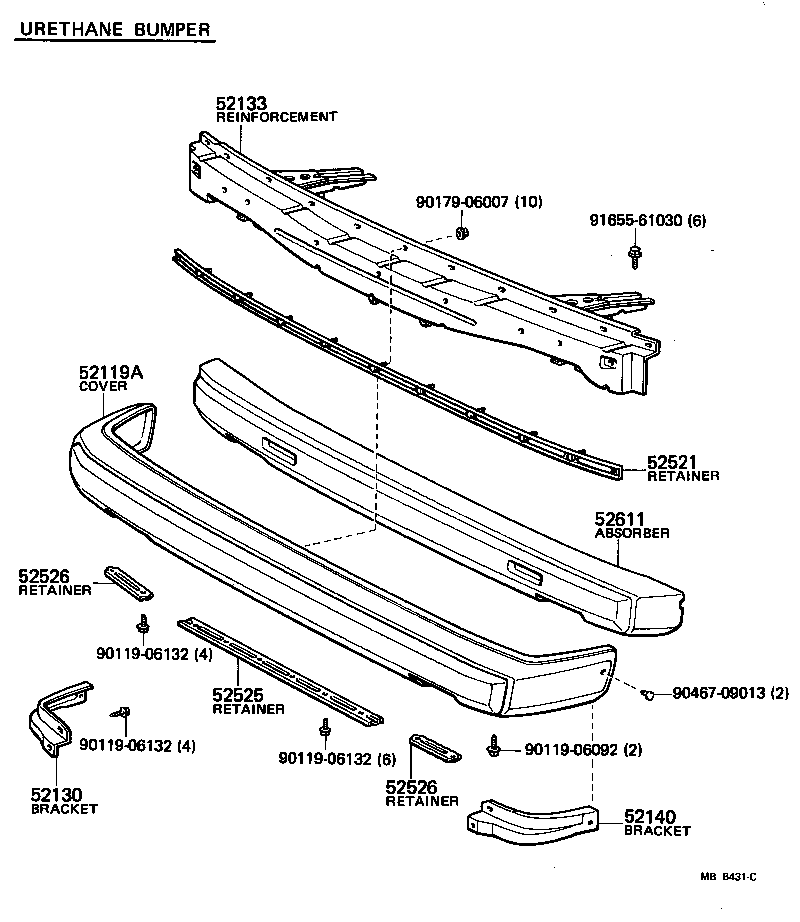

Figure MB7271E MB7271E 1977-08 → 1979-08 Figure MBA591B MBA591B 1979-08 → — Figure MBB431C MBB431C 1980-08 → —

Part groups

PNCDescription
52051 Pad Sub-assy, Front Bumper, RH
52052 Pad Sub-assy, Front Bumper, LH
52053 Pad Sub-assy, Front Bumper
52105 Stay Sub-assy, Front Bumper, RH
52106 Stay Sub-assy, Front Bumper, LH
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52119A Cover, Front Bumper
52130 Bracket Assy, Front Bumper Side Mounting, RH
52133 Reinforcement, Front Bumper
52140 Bracket Assy, Front Bumper Side Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52611 Absorber, Front Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
