Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 5 illustrations

Illustrations

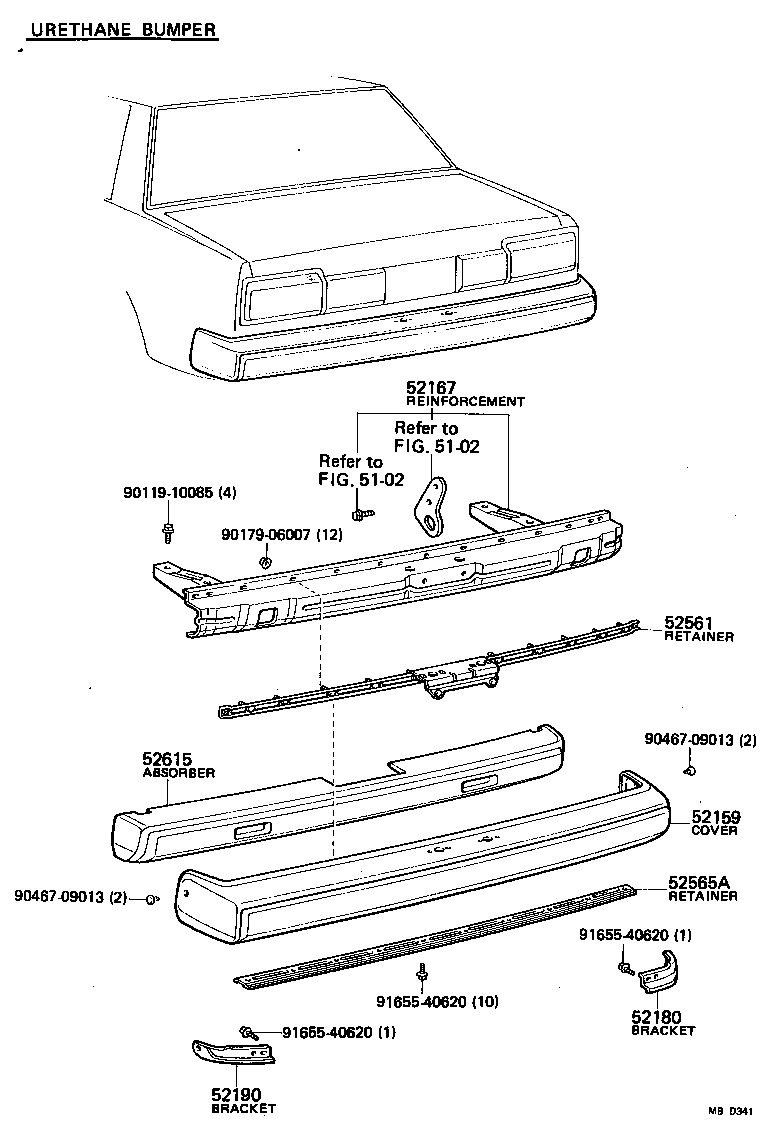

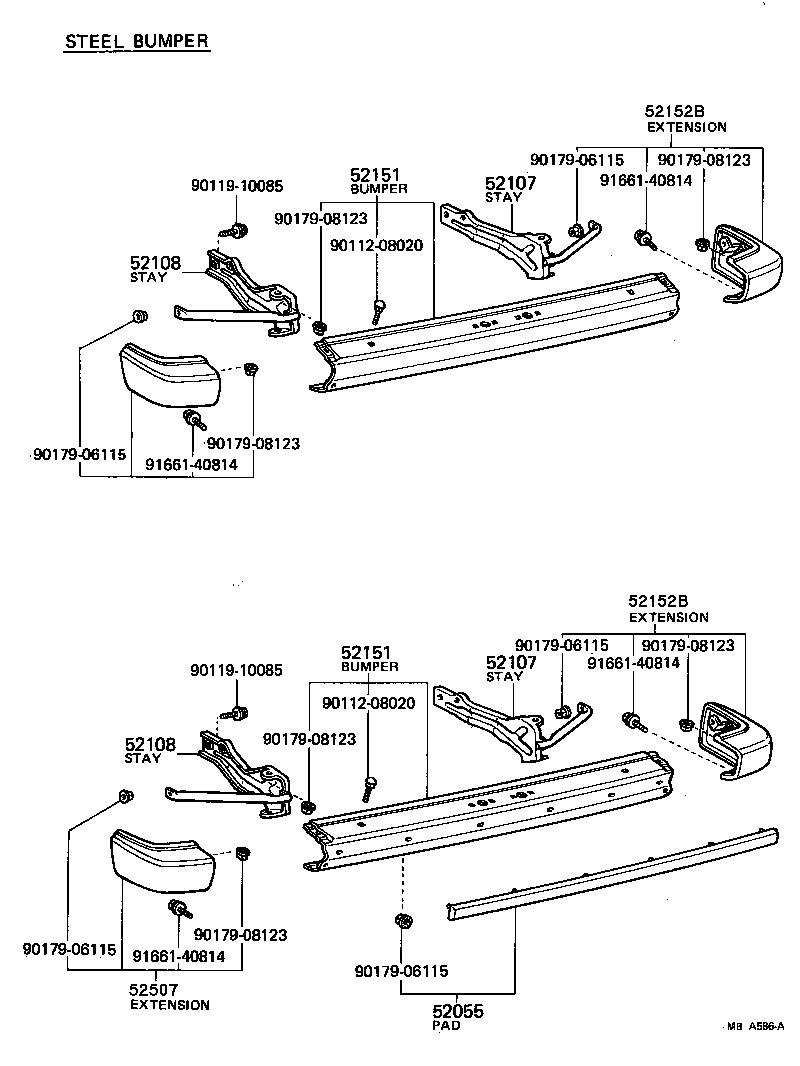

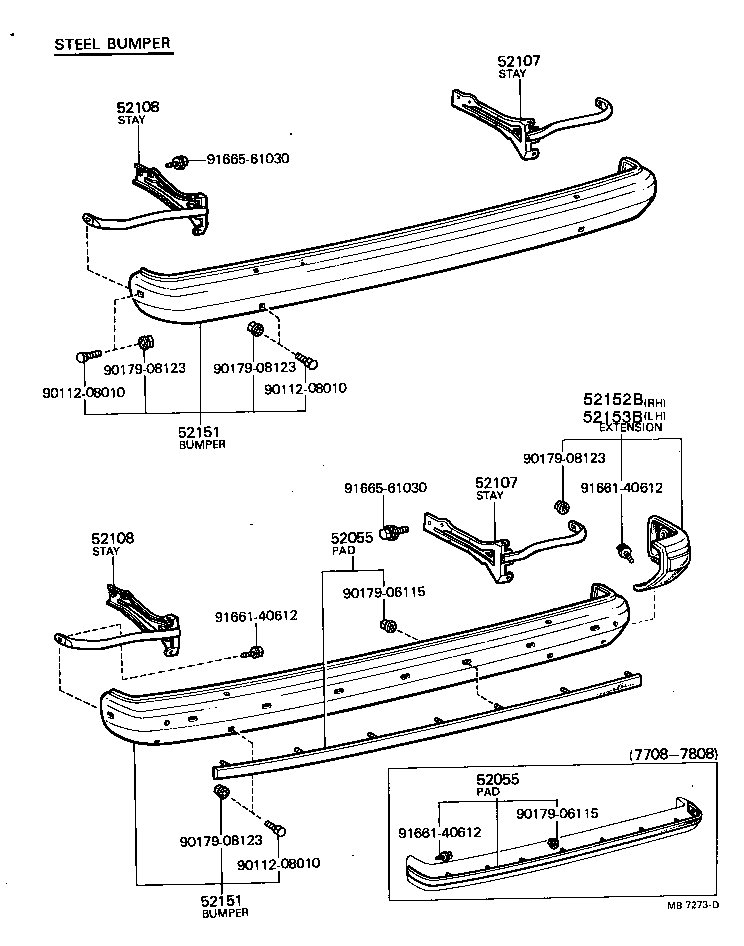

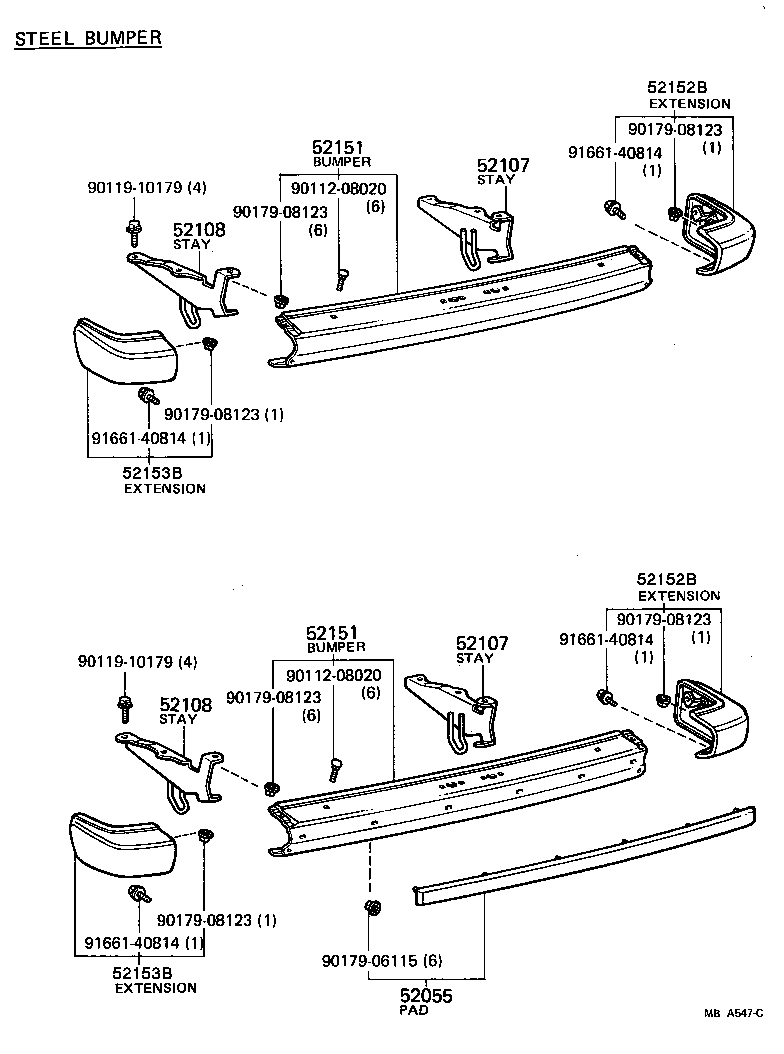

Figure MB7272F MB7272F 1977-08 → 1979-08 Figure MB7273D MB7273D 1977-08 → 1979-08 Figure MBA547C MBA547C 1979-08 → — Figure MBD341 MBD341 1980-08 → — Figure MBA586A MBA586A 1979-08 → —

Part groups

PNCDescription
52055 Pad Sub-assy, Rear Bumper
52107 Stay Sub-assy, Rear Bumper, RH
52108 Stay Sub-assy, Rear Bumper, LH
52151 Bumper Assy, Rear
52152B Extension, Rear Bumper, RH
52153B Extension, Rear Bumper, LH
52159 Cover, Rear Bumper
52167 Reinforcement, Rear Bumper
52180 Bracket Assy, Rear Bumper Side Mounting, RH
52184 Bracket, Rear Bumper Side Mounting
52190 Bracket Assy, Rear Bumper Side Mounting, LH
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
