Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

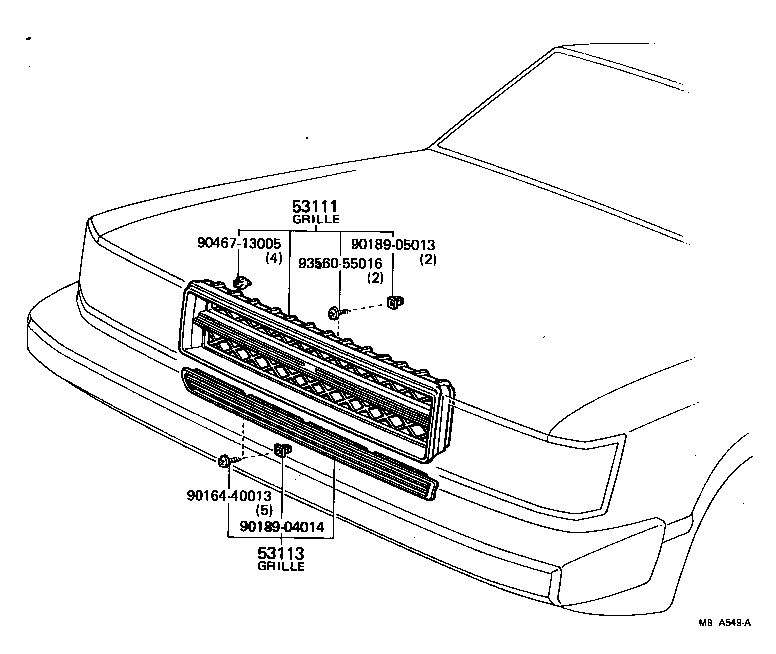

Radiator Grille
8 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53031 | Housing, Headlamp, RH |
| 53032 | Housing, Headlamp, LH |
| 53111 | Grille, Radiator |
| 53111C | Moulding, Radiator Grille, Upper |
| 53111D | Moulding, Radiator Grille, RH |
| 53111E | Moulding, Radiator Grille, LH |
| 53111G | Moulding, Radiator Grille, Lower |
| 53113 | Grille, Radiator, LH OR Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
