Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

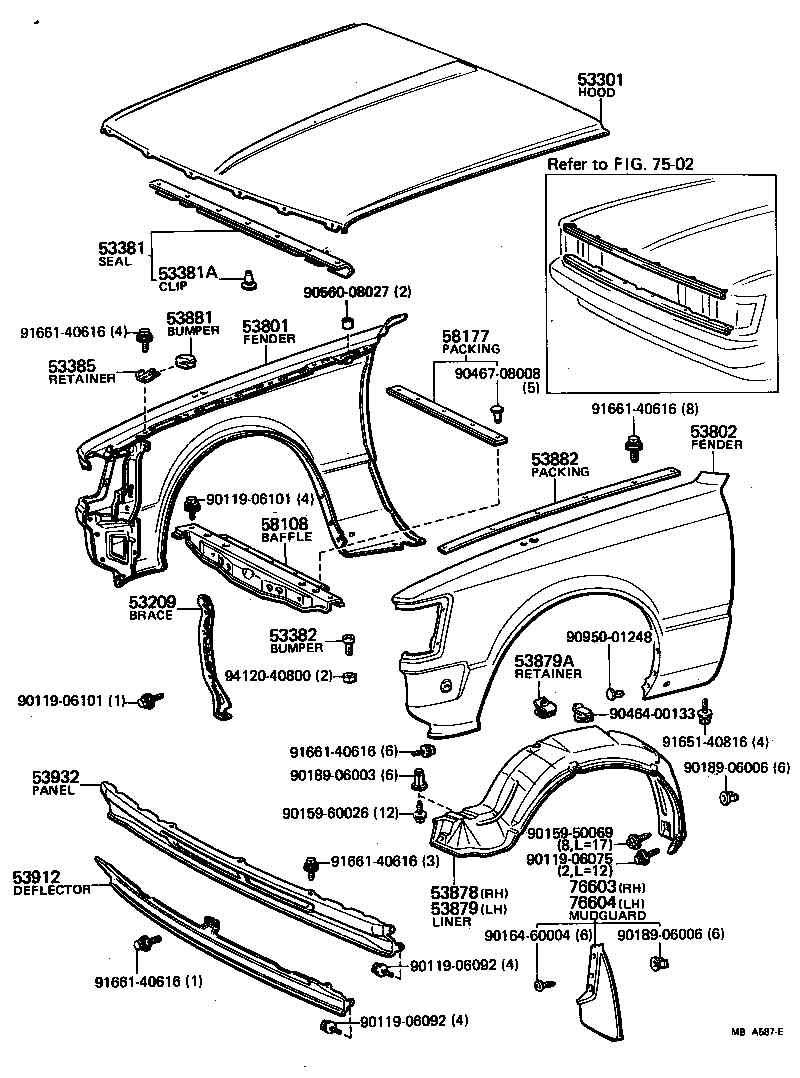

Hood & Front Fender
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53209 | Brace Sub-assy, Hood Lock |
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53382 | Bumper, Hood, Front |
| 53385 | Retainer, Hood, Bumper |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53878 | Liner, Front Fender, RH |
| 53879 | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53881 | Bumper, Fender TO Hood |
| 53882 | Packing, Front Fender Main |
| 53912 | Deflector, Front Bumper Stone |
| 53932 | Panel Sub-assy, Front End |
| 58108 | Baffle Sub-assy, Radiator Upper |
| 58177 | Packing, Radiator Baffle |
| 76603 | Mudguard Sub-assy, Front Fender, RH |
| 76604 | Mudguard Sub-assy, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
