Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Fender Apron & Dash Panel

16 part groups · 2 illustrations

Illustrations

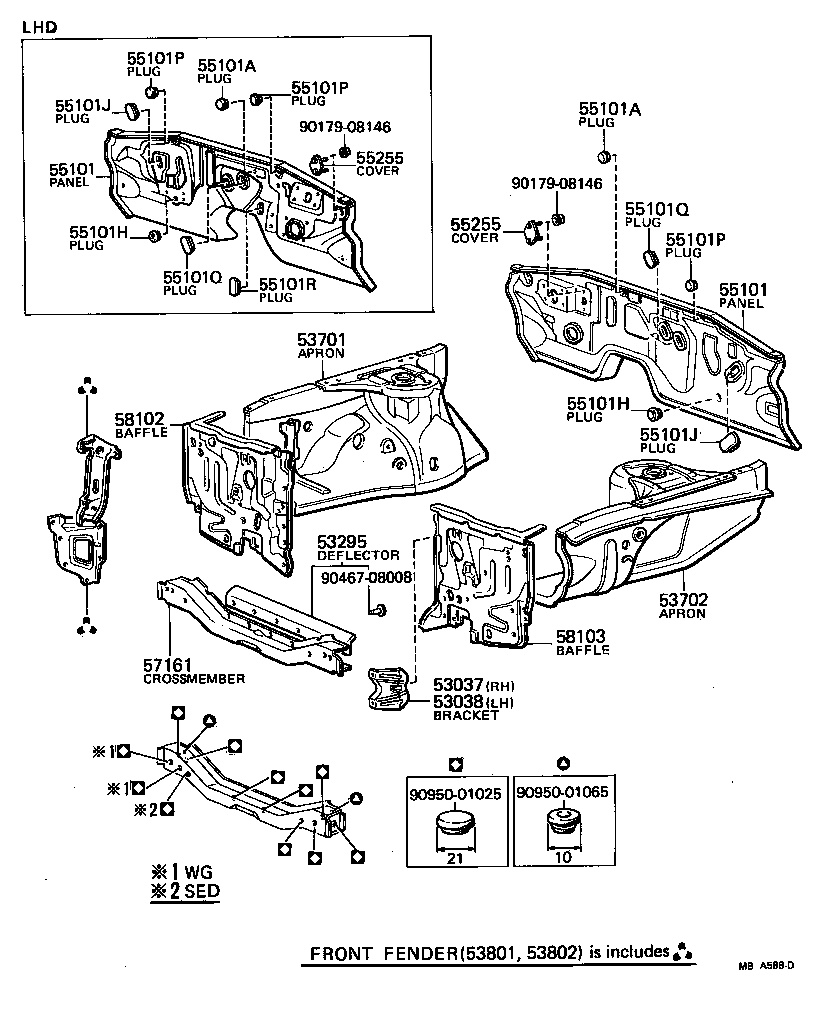

Figure MB7352B MB7352B 1977-08 → 1979-08 Figure MBA588D MBA588D 1979-08 → —

Part groups

PNCDescription
53037 Bracket Sub-assy, Headlamp, Inner RH
53038 Bracket Sub-assy, Headlamp, Inner LH
53295 Deflector, Radiator Lower Air
53701 Apron Sub-assy, Front Fender, RH
53702 Apron Sub-assy, Front Fender, LH
55101 Panel Sub-assy, Dash
55101A Plug, Hole, NO.1(FOR DASH PANEL)
55101H Plug, Hole, NO.2(FOR DASH PANEL)
55101J Plug, Hole, NO.3(FOR DASH PANEL)
55101P Plug, Hole, NO.4(FOR DASH PANEL)
55101Q Plug, Hole, NO.5(FOR DASH PANEL)
55101R Plug, Hole, NO.6(FOR DASH PANEL)
55255 Cover, Clutch Master Cylinder Hole
57161 Crossmember, Front
58102 Baffle Sub-assy, Radiator Side, RH
58103 Baffle Sub-assy,Radiator Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
