Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Side Member

17 part groups · 2 illustrations

Illustrations

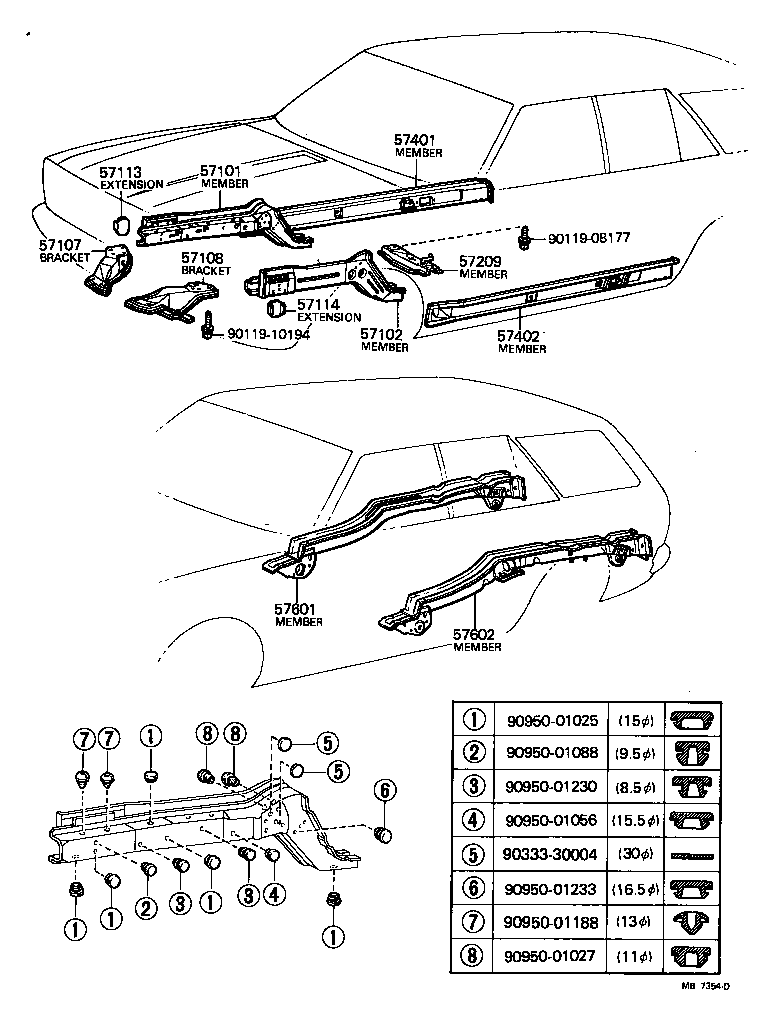

Figure MB7353H MB7353H 1977-08 → — Figure MB7354D MB7354D 1977-08 → —

Part groups

PNCDescription
57041 Member Sub-assy, Center Floor Side, RH
57042 Member Sub-assy, Center Floor Side, LH
57101 Member Sub-assy, Front Side, RH
57102 Member Sub-assy, Front Side, LH
57107 Bracket Sub-assy, Strut Bar, RH
57108 Bracket Sub-assy, Strut Bar, LH
57113 Extension, Front Side Member, RH
57114 Extension, Front Side Member, LH
57209 Member Sub-assy, Engine Rear Support
57401 Member Sub-assy, Main Floor Side, RH
57402 Member Sub-assy, Main Floor Side, LH
57407 Crossmember Sub-assy, Center Floor, NO.1
57449 Grommet, Center Floor Side Member
57601 Member Sub-assy, Rear Floor Side, RH
57602 Member Sub-assy, Rear Floor Side, LH
57704 Support Sub-assy, Rear Suspension Spring
57725 Reinforcement, Rear Suspension Spring Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
