Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

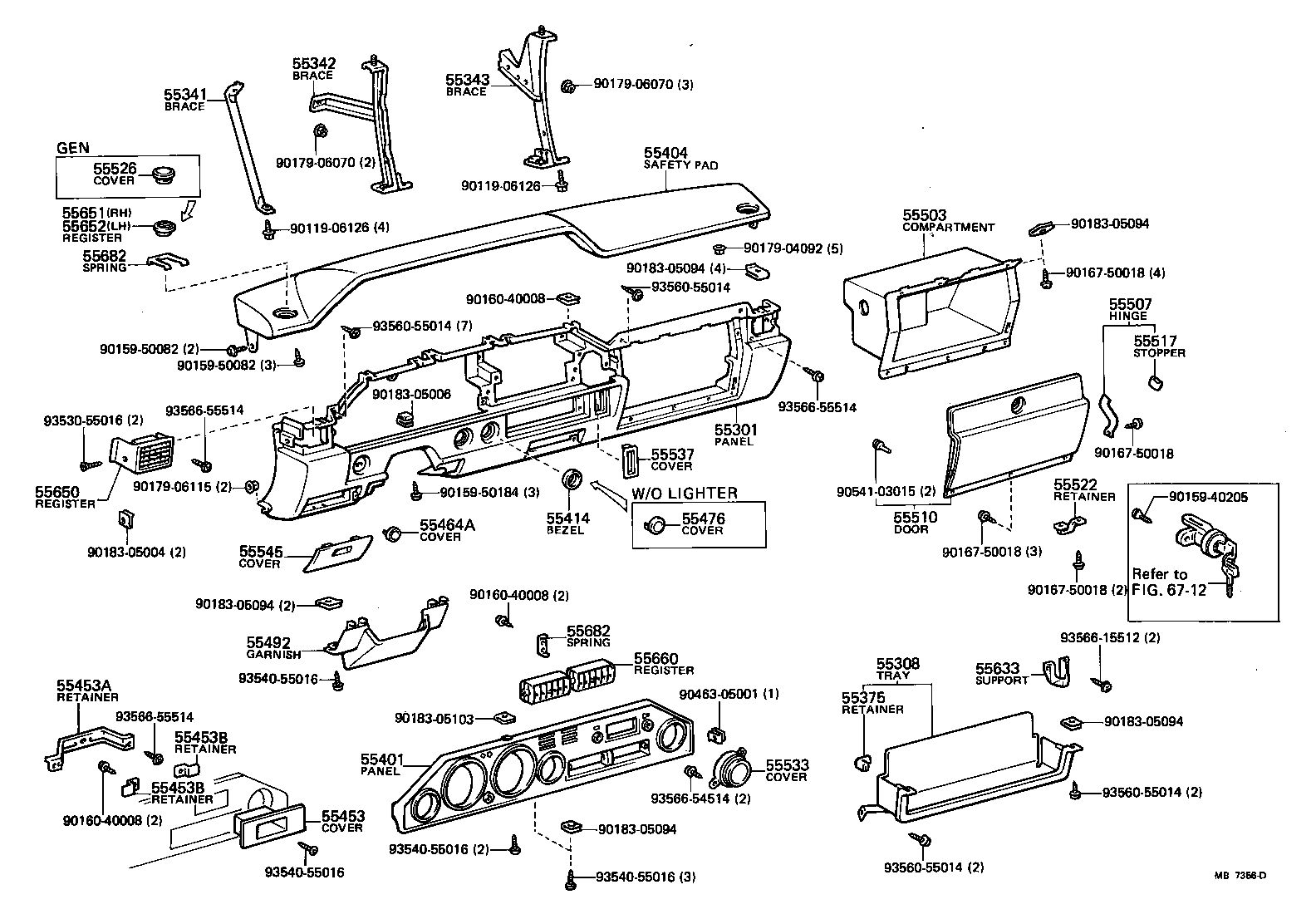

Instrument Panel & Glove Compartment
32 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55301 | Panel Sub-assy, Instrument |
| 55308 | Tray Sub-assy, Instrument Panel Under |
| 55341 | Brace, Instrument Panel, NO.1 |
| 55342 | Brace, Instrument Panel, NO.2 |
| 55343 | Brace, Instrument Panel, NO.3 |
| 55375 | Retainer, Instrument Panel Under Tray, Upper |
| 55401 | Panel Sub-assy, Instrument Cluster Finish |
| 55404 | Safety Pad Sub-assy, Instrument Panel, Upper |
| 55414 | Bezel, Cigar Lighter Hole |
| 55453 | Cover, Radio Tuner Opening |
| 55453A | Retainer, Radio Tuner Opening, NO.1 |
| 55453B | Retainer, Radio Tuner Opening, NO.2 |
| 55464A | Cover, Choke Knob Hole |
| 55476 | Cover, Cigarette Lighter Hole |
| 55492 | Garnish OR Safety Pad, Lower, RH |
| 55503 | Compartment Sub-assy, Glove |
| 55506 | Button Sub-assy, Glove Compartment Door Lock |
| 55507 | Hinge Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55517 | Stopper, Glove Compartment Door Arm |
| 55522 | Retainer, Glove Compartment Male |
| 55526 | Cover, Instrument Panel Register Opening |
| 55533 | Cover, Auto Clock Hole |
| 55537 | Cover, Rear Window Defogger Switch Hole |
| 55545 | Cover, Fuse Box Opening |
| 55547 | Cover, Remote Control Mirror Hole |
| 55633 | Support, Instrument Panel Under Tray, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55651 | Register, Instrument Panel, NO.1 |
| 55652 | Register, Instrument Panel, NO.2 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55682 | Spring, Instrument Panel Register Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
