Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

19 part groups · 2 illustrations

Illustrations

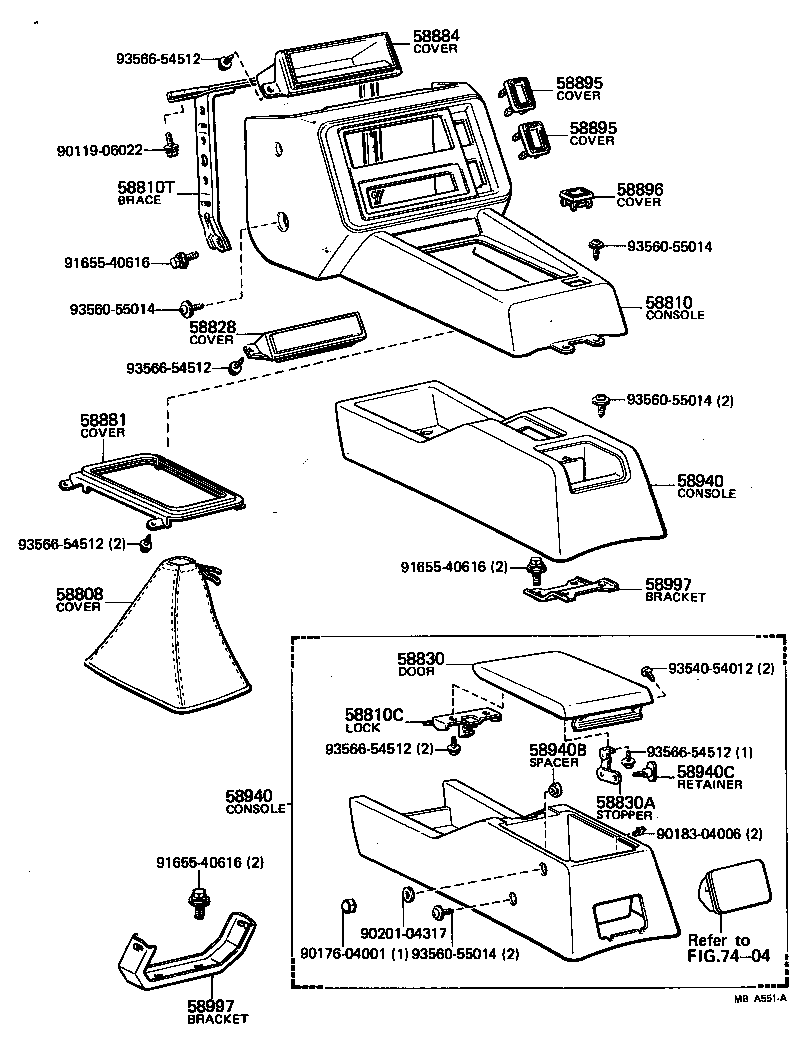

Figure MB7290B MB7290B 1977-08 → 1979-08 Figure MBA551A MBA551A 1979-08 → —

Part groups

PNCDescription
58267 Bracket, Console Box Support, Center
58268 Bracket, Console Box Support, Rear
58808 Cover Sub-assy, Shifting Hole
58810 Console Assy
58810C Lock Sub-assy, Console Compartment Door
58810T Brace Sub-assy, Instrument Panel TO Floor
58817 Retainer, Console Panel
58828 Cover, OK Monitor Opening
58830 Door Sub-assy, Console Compartment
58830A Stopper,Console Compartment Door
58881 Cover, Shifting Hole
58884 Cover, Stereo Opening
58891 Plate, Console Name
58895 Cover, Switch Hole, NO.1
58896 Cover, Switch Hole, NO.2
58940 Console Assy, Rear
58940B Spacer,Console Compartment Door Stopper
58940C Retainer, Console Compartment Door Stopper
58997 Bracket, Console Box Mounting, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
