Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

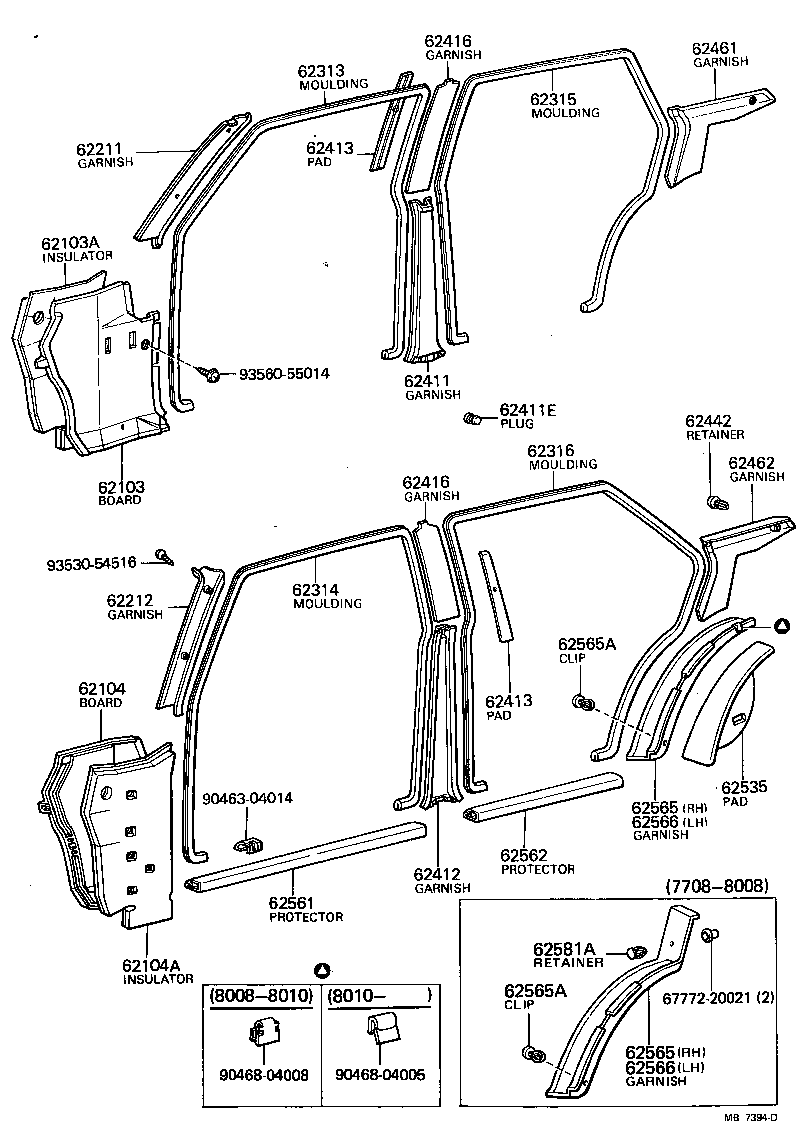

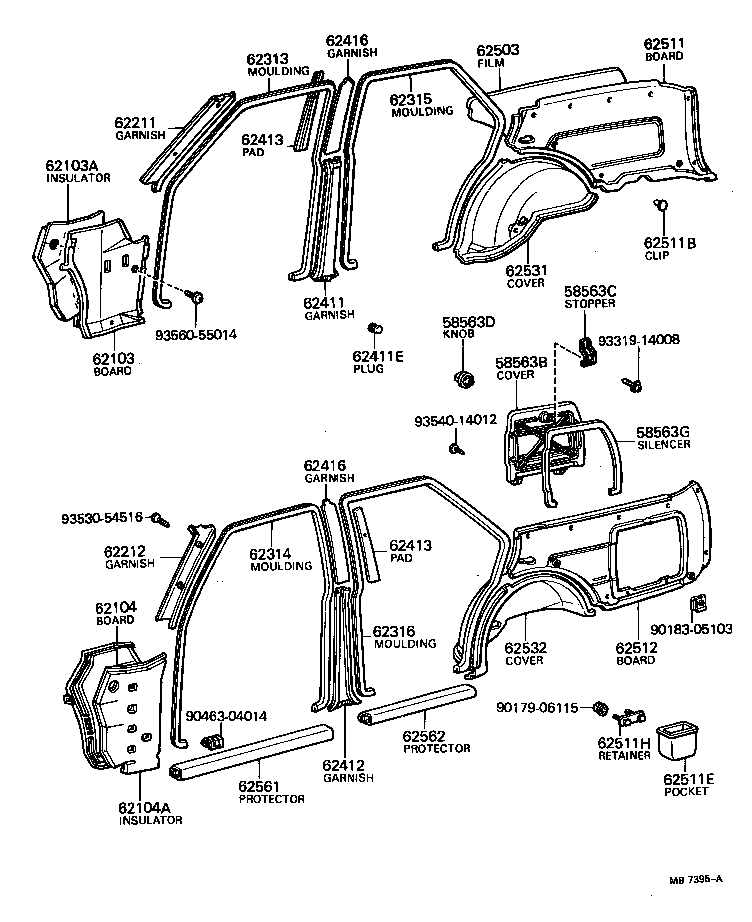

Inside Trim Board & Door Opening Trim Moulding
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62351 | Retainer, Quarter Window Inside Trim, RH |
| 62352 | Retainer, Quarter Window Inside Trim, LH |
| 62354 | Trim, Quarter Window, Inside |
| 62372 | Cover, Quarter Window Inside Trim |
| 62411 | Garnish, Center Pillar, RH |
| 62411E | Plug, Hole (FOR SEAT BELT) |
| 62412 | Garnish, Center Pillar, LH |
| 62413 | Pad, Center Pillar Garnish |
| 62416 | Garnish, Center Pillar, Upper |
| 62442 | Retainer, Roof Side Rail Garnish |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62503 | Film Sub-assy, Quarter Inside Panel, RH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511E | Pocket, Quarter Trim |
| 62511H | Retainer, Quarter Trim Pocket |
| 62512 | Board, Quarter Inside Trim, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62565 | Garnish, Rear Seat Side, RH |
| 62565A | Clip (FOR REAR SEAT SIDE GARNISH) |
| 62566 | Garnish, Rear Seat Side, LH |
| 62581 | Retainer, Quarter Trim |
| 62581A | Retainer, Quarter Trim |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
