Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

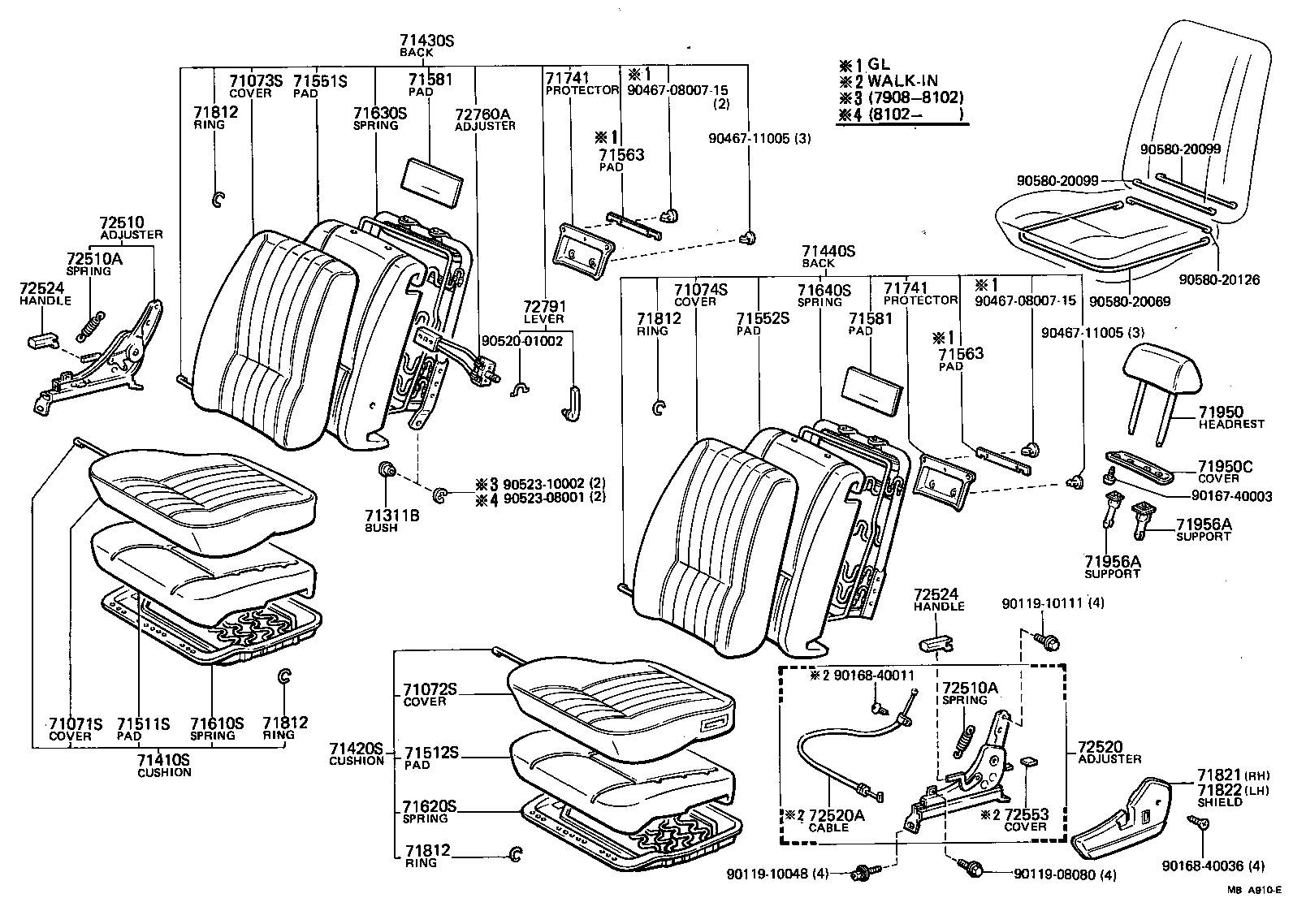

Front Seat & Seat Track
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71311B | Bush (FOR FRONT SEAT HINGE PIN) |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71563 | Pad, Front Seatback, Upper |
| 71581 | Pad, Front Seatback Silencer |
| 71610S | Spring Assy, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71620S | Spring Assy, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71741 | Protector, Front Seatback Headrest Stay |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812 | Clip (FOR FRONT SEAT CUSHION COVER) |
| 71812D | Shield, Front Seat Cushion, LH |
| 71950 | Headrest Assy, Front Seat |
| 71950C | Cover, Front Seat Headrest Under |
| 71956A | Support, Front Seat Headrest |
| 72213 | Knob, Seat Track Adjusting Handle |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72510A | Spring, Tension, NO.1(FOR RECLINING SEAT ADJUSTER) |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72520A | Cable, Adjuster TO Seat Track |
| 72524 | Handle, Reclining Adjuster Release |
| 72553 | Cover, Reclining Pedal |
| 72760A | Adjuster Assy, Lumbar Support |
| 72791 | Lever, Lumbar Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
