Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Truck

11 part groups · 2 illustrations

Illustrations

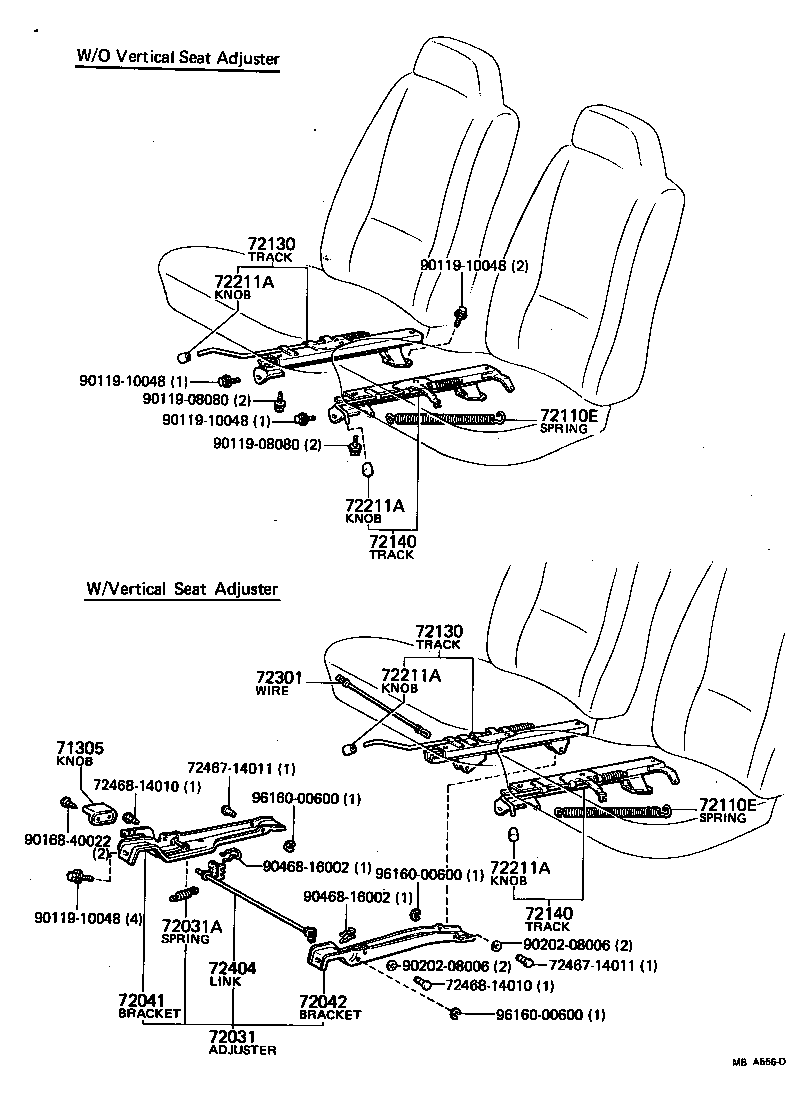

Figure MB7326J MB7326J 1977-08 → 1979-08 Figure MBA556D MBA556D 1979-08 → —

Part groups

PNCDescription
71305 Knob Sub-assy, Front Seat Adjusting
72031 Adjuster Assy, Front Seat Vertical
72031A Spring, Tension (FOR VERTICAL ADJUSTER)
72041 Bracket Sub-assy, Vertical Adjuster, Outer
72042 Bracket Sub-assy, Vertical Adjuster, Inner
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72211A Knob, Seat Track Adjusting Handle
72301 Wire Sub-assy, Seat Track Equalizing
72404 Link Sub-assy, Vertical Seat
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
