Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

9 part groups · 2 illustrations

Illustrations

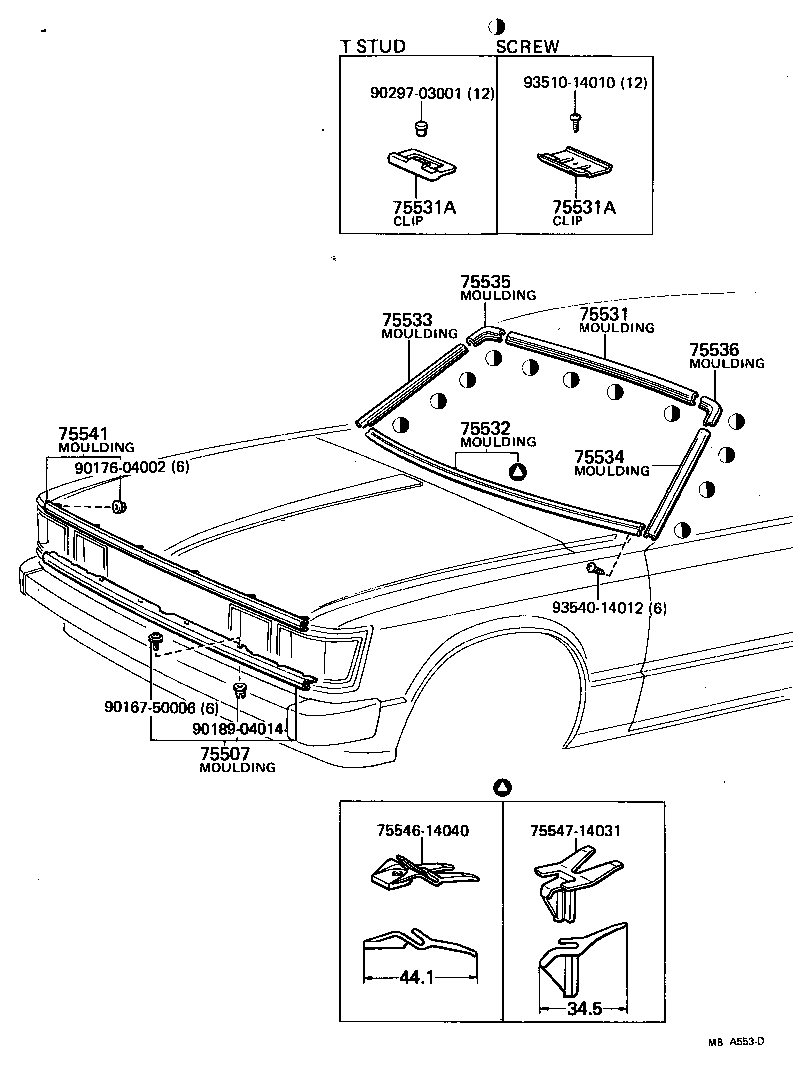

Figure MB7336C MB7336C 1977-08 → 1979-08 Figure MBA553D MBA553D 1979-08 → —

Part groups

PNCDescription
75507 Moulding Sub-assy, Radiator Grille Opening, Lower
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75534 Moulding, Windshield, Outside LH
75535 Moulding, Windshield Corner, Upper RH
75536 Moulding, Windshield Corner, Upper LH
75541 Moulding, Hood, Front
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
