Toyota Carina
1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe
Discontinued model
Data version 1982-01

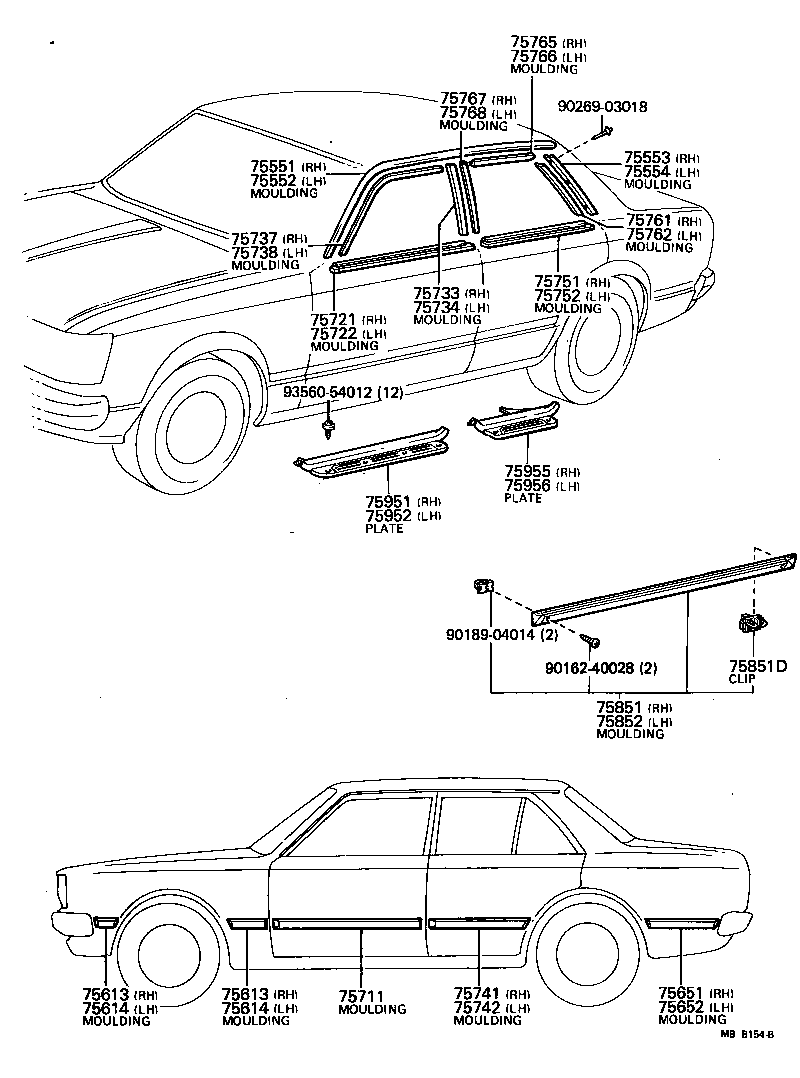

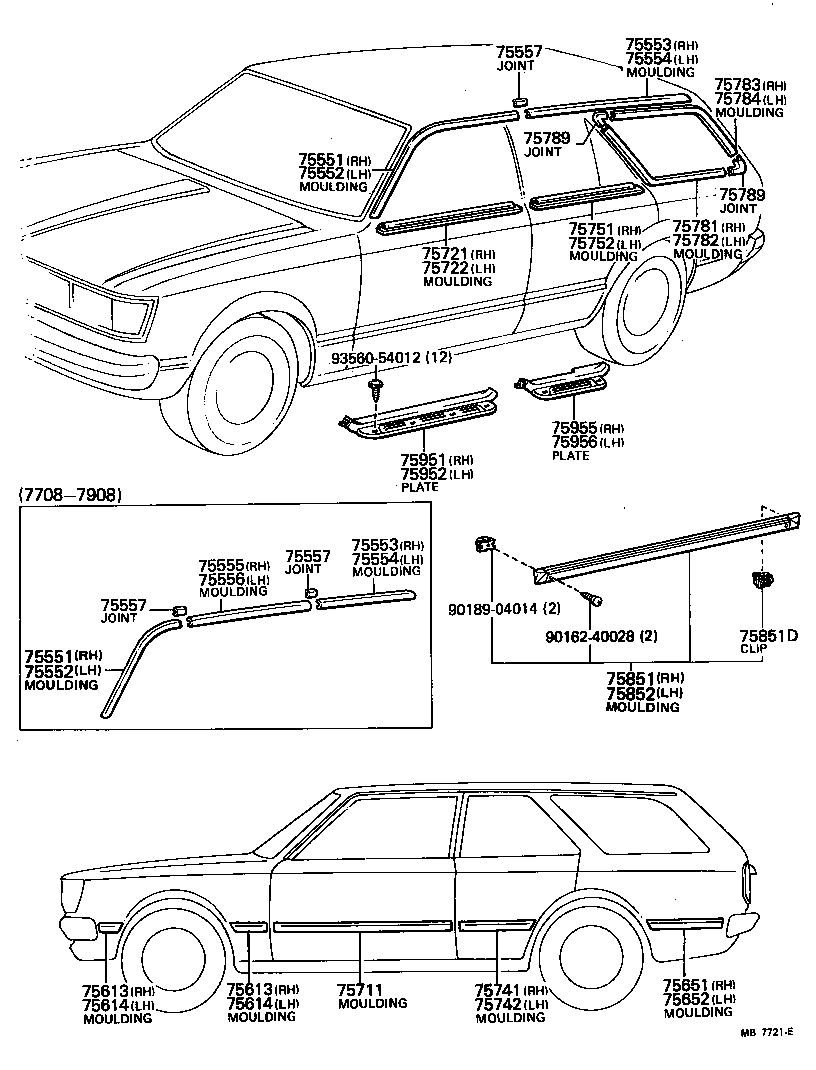

Side Moulding
42 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553 | Moulding, Roof Drip Side Finish, RH |
| 75554 | Moulding, Roof Drip Side Finish, LH |
| 75555 | Moulding, Roof Drip Side Finish, Rear RH |
| 75556 | Moulding, Roof Drip Side Finish, Rear LH |
| 75557 | Joint, Roof Drip Side Finish Moulding |
| 75613 | Moulding, Front Fender, Outside RH |
| 75614 | Moulding, Front Fender, Outside LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75711 | Moulding, Front Door Outside, NO.1 |
| 75721 | Moulding, Front Door Belt, RH |
| 75722 | Moulding, Front Door Belt, LH |
| 75733 | Moulding, Front Door Window Frame, Rear RH |
| 75734 | Moulding, Front Door Window Frame, Rear LH |
| 75737 | Moulding, Front Door Window Frame, Front RH |
| 75738 | Moulding, Front Door Window Frame, Front LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75751 | Moulding, Rear Door Belt, RH |
| 75752 | Moulding, Rear Door Belt, LH |
| 75756 | Moulding, Quarter Belt, RH |
| 75757 | Moulding, Quarter Belt, LH |
| 75761 | Moulding, Rear Door Window Frame, Rear RH |
| 75762 | Moulding, Rear Door Window Frame, Rear LH |
| 75765 | Moulding, Rear Door Window Frame, Upper RH |
| 75766 | Moulding, Rear Door Window Frame, Upper LH |
| 75767 | Moulding, Rear Door Window Frame, Front RH |
| 75768 | Moulding, Rear Door Window Frame, Front LH |
| 75781 | Moulding, Quarter Window, Lower RH |
| 75782 | Moulding, Quarter Window, Lower LH |
| 75783 | Moulding, Quarter Window, Upper RH |
| 75784 | Moulding, Quarter Window, Upper LH |
| 75789 | Joint, Quarter Window Moulding |
| 75851 | Moulding, Rocker Panel, RH |
| 75851D | Clip(FOR ROCKER PANEL MOULDING SET) |
| 75852 | Moulding, Rocker Panel, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 75955 | Plate, Rear Door Scuff, Outside RH |
| 75956 | Plate, Rear Door Scuff, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
