Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Turn Signal Lamp

10 part groups · 2 illustrations

Illustrations

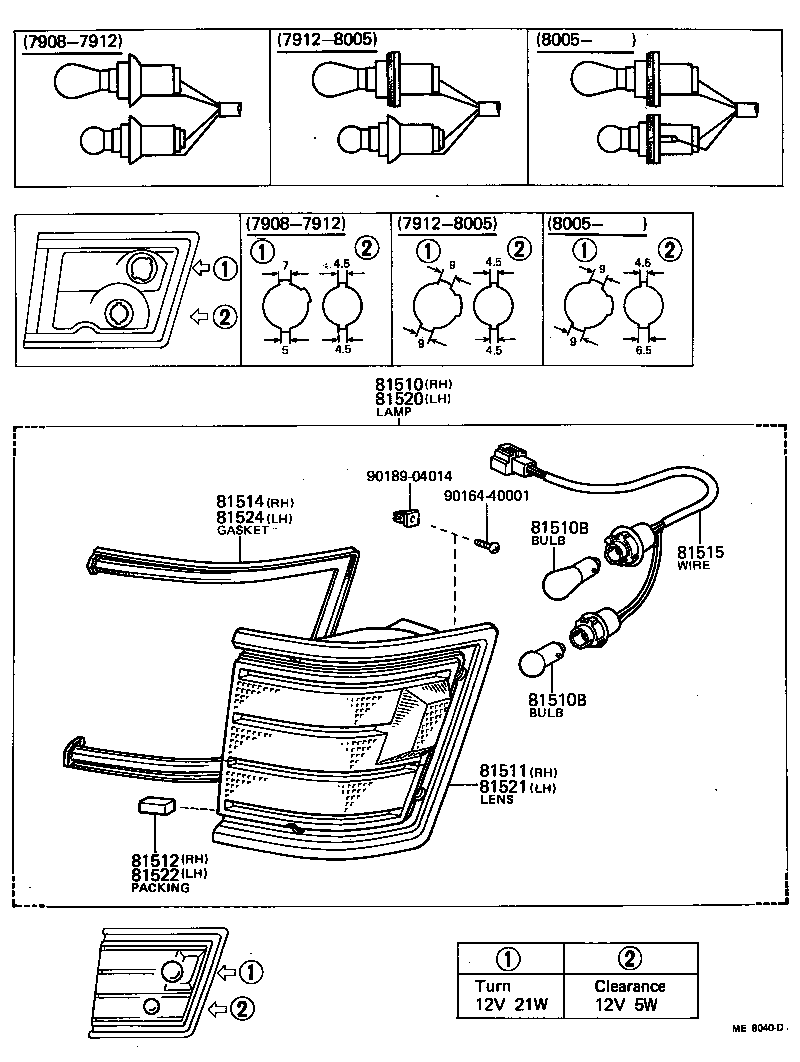

Figure ME6421 ME6421 1977-08 → 1979-08 Figure ME8040D ME8040D 1979-08 → —

Part groups

PNCDescription
81510 Lamp Assy, Front Turn Signal, RH
81510B Bulb (FOR FRONT TURN SIGNAL LAMP)
81511 Lens, Front Turn Signal Lamp, RH
81512 Gasket, Front Turn Signal Lamp Lens, RH
81514 Gasket, Front Turn Signal Lamp Body, RH
81515 Wire Sub-assy, Front Turn Signal Lamp Body
81520 Lamp Assy, Front Turn Signal, LH
81521 Lens, Front Turn Signal Lamp, LH
81522 Gasket, Front Turn Signal Lamp Lens, LH
81524 Gasket, Front Turn Signal Lamp Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
