Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

11 part groups · 3 illustrations

Illustrations

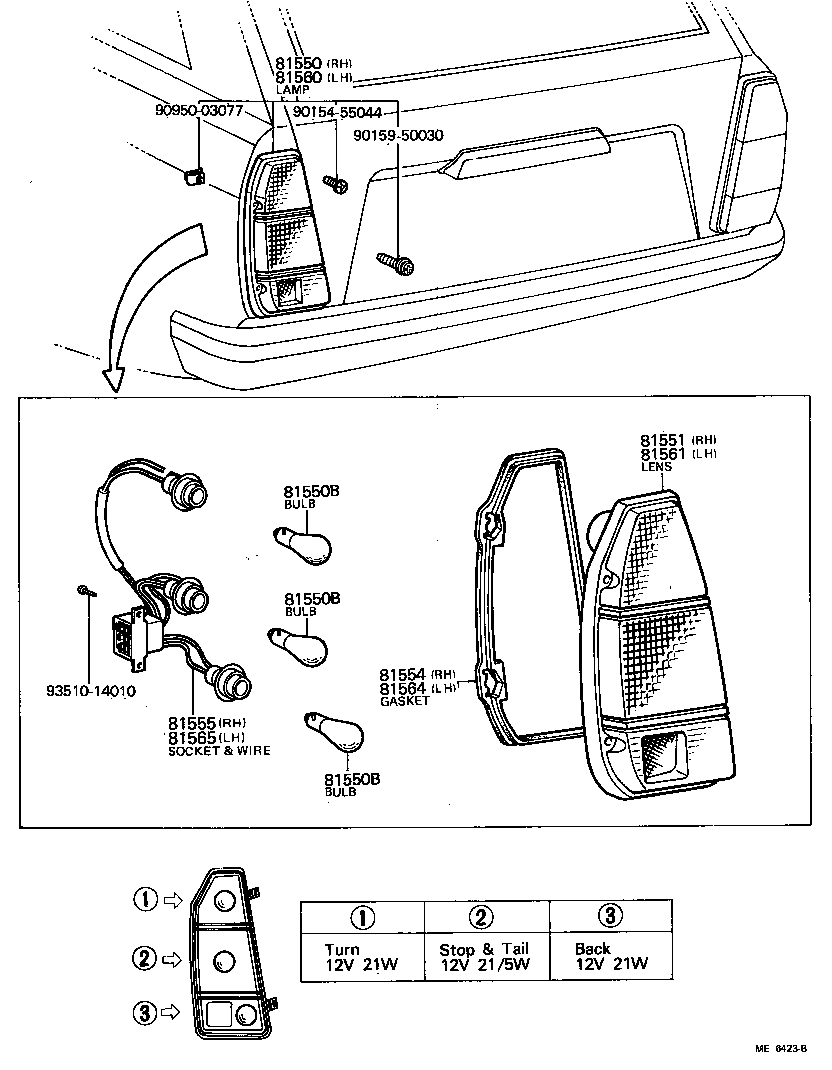

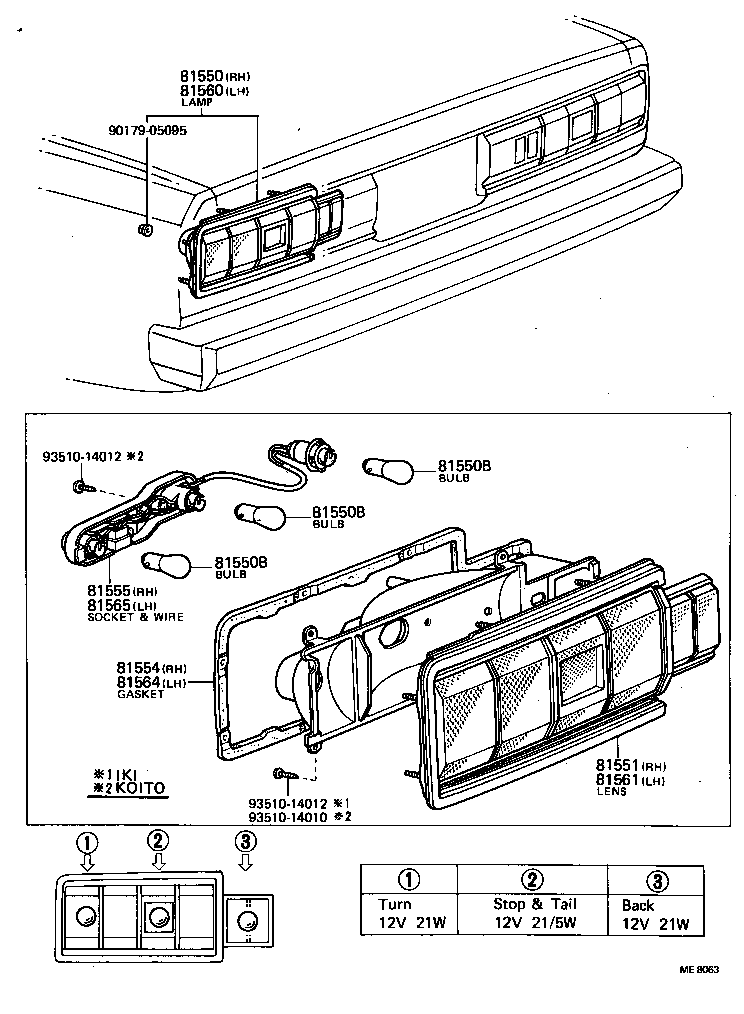

Figure ME6422B ME6422B 1977-08 → 1979-08 Figure ME8063 ME8063 1979-08 → — Figure ME6423B ME6423B 1977-08 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81558 Shade, Rear Combination Lamp, NO.1 RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
