Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

15 part groups · 2 illustrations

Illustrations

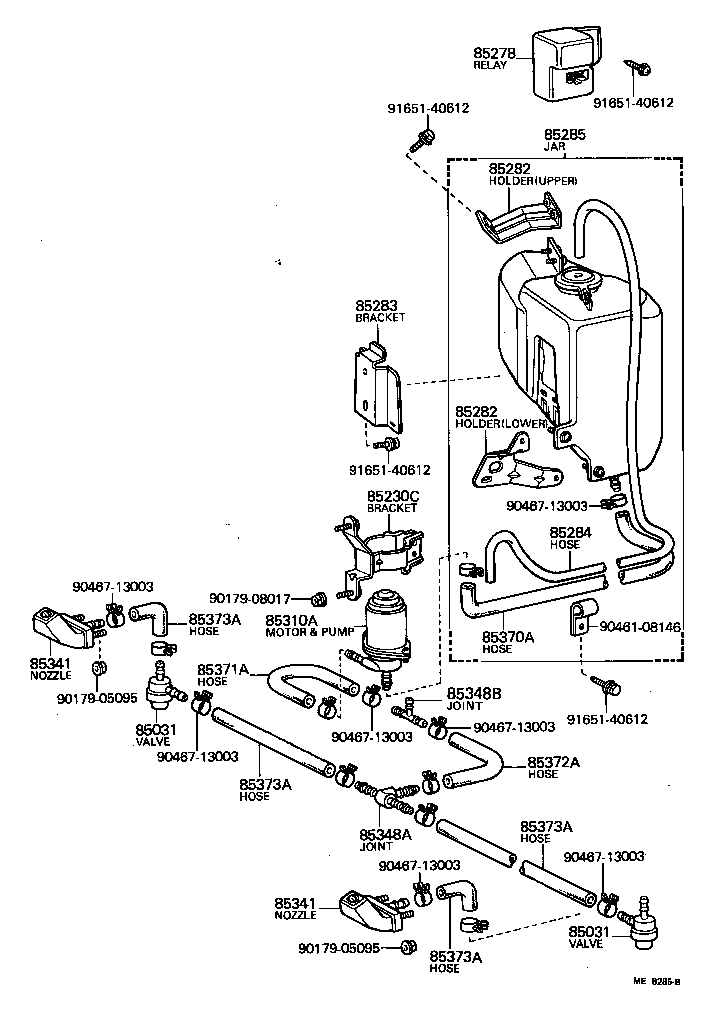

Figure ME6967A ME6967A 1978-01 → 1979-08 Figure ME8285B ME8285B 1979-08 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85230C Bracket Assy, Headlamp Cleaner
85278 Relay Assy, Headlamp Cleaner Control
85282 Holder Assy, Headlamp Cleaner Washer Jar
85283 Bracket, Headlamp Cleaner Washer
85284 Hose Assy, Headlamp Cleaner Washer
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85370A Hose Assy, Headlamp Cleaner Washer, NO.1
85371A Hose, Headlamp Cleaner(FROM MOTOR TO JOINT)
85372A Hose, Headlamp Cleaner (FROM JOINT TO JOINT OR NOZZLE)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
