Toyota Carina

1977-08 → 1981-07 · chassis TA4#(A) · catalogue 221220 · Europe

Discontinued model Data version 1982-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

14 part groups · 3 illustrations

Illustrations

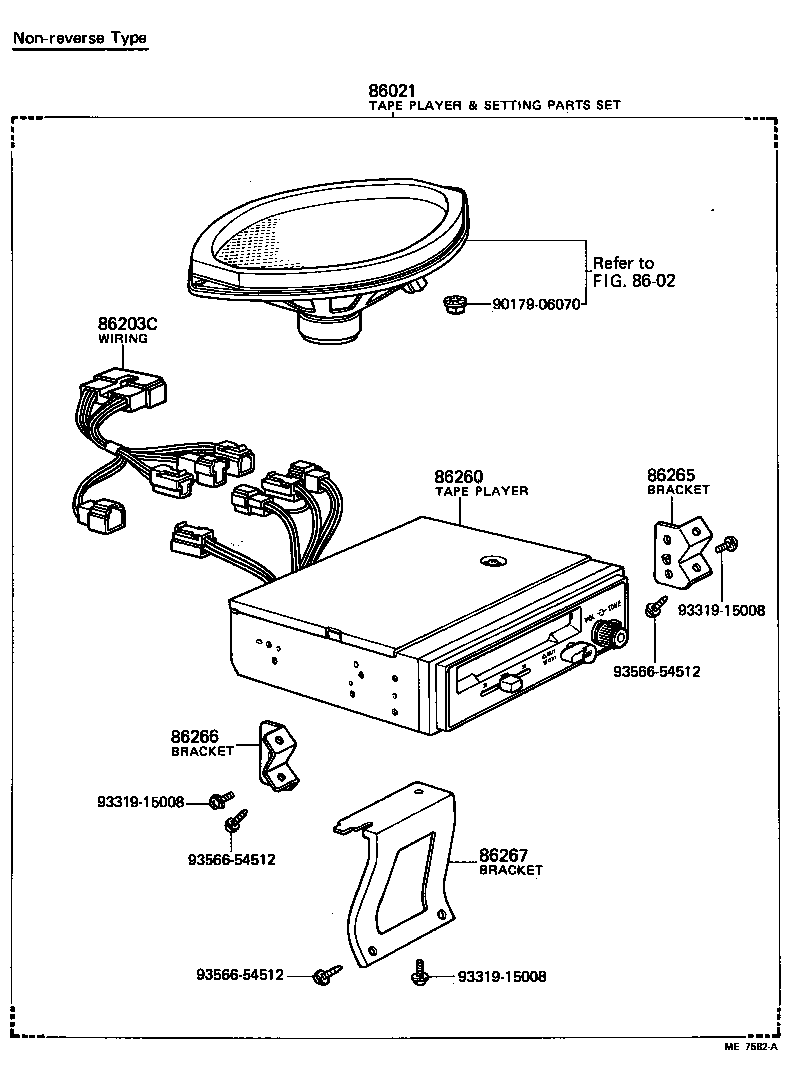

Figure ME6633E ME6633E 1977-08 → — Figure ME6412C ME6412C 1977-08 → — Figure ME7582A ME7582A 1978-08 → —

Part groups

PNCDescription
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86011C Filter, Noise
86021 Tape Player And Setting Parts Set
86120 Receiver Assy, Radio
86124 Knob, Radio Receiver Control
86125 Knob, Radio Receiver Switch
86203C Wire, Tape Player
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86260 Tape Player Assy
86265 Bracket, Tape Player, NO.1
86266 Bracket, Tape Player, NO.2
86267 Bracket, Tape Player, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
