Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

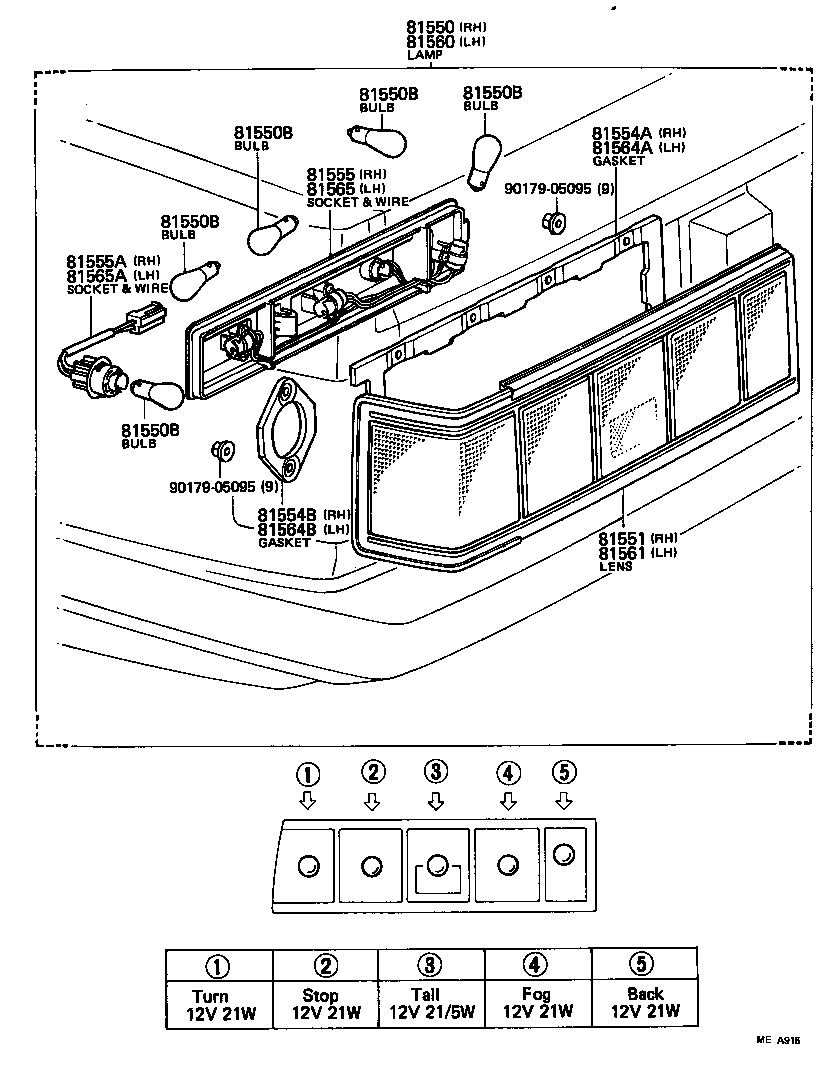

Exploded illustration MEA915 81550 — LAMP ASSY, REAR COMBINATION, RH (4 parts) 81560 — LAMP ASSY, REAR COMBINATION, LH (4 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (5 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (5 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (5 parts) 81554A — GASKET, REAR COMBINATION LAMP BODY, NO.1 RH (1 parts) 81564A — GASKET, REAR COMBINATION LAMP BODY, NO.1 LH (1 parts) 81555 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (4 parts) 81565 — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (4 parts) 9017905095 — not listed in this catalogue 81550B — BULB(FOR REAR COMBINATION LAMP) (5 parts) 81555A — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH (1 parts) 81565A — SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH (1 parts) 81550B — BULB(FOR REAR COMBINATION LAMP) (5 parts) 9017905095 — not listed in this catalogue 81554B — GASKET, REAR COMBINATION LAMP BODY, NO.2 RH (1 parts) 81564B — GASKET, REAR COMBINATION LAMP BODY, NO.2 LH (1 parts) 81551 — LENS, REAR COMBINATION LAMP, RH (4 parts) 81561 — LENS, REAR COMBINATION LAMP, LH (4 parts)
MEA915 · 17 callouts, 2 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
35 parts on this figure
Part number Description Fitment Price
81550 — Lamp Assy, Rear Combination, RH
81550-80098 Lamp Assy, Rear Combination, RH
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
81550-80108 Lamp Assy, Rear Combination, RH
1981-08 → 1983-09 ended
TA60 SED GEN —
81550-80111 Lamp Assy, Rear Combination, RH
1981-08 → 1983-09 ended
CA60,TA6# WG —
81550-80114 Lamp Assy, Rear Combination, RH
1981-08 → 1983-09 ended
TA6# CP —
81550B — Bulb(FOR REAR COMBINATION LAMP)
99132-11050 note Bulb(FOR REAR COMBINATION LAMP)
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
99132-11210 note Bulb(FOR REAR COMBINATION LAMP)
1981-08 → 1983-09 ended
CA60,TA6# CP,WG —
99132-11210 note Bulb(FOR REAR COMBINATION LAMP)
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
99132-11230 note Bulb(FOR REAR COMBINATION LAMP)
1981-08 → 1983-09 ended
TA60 SED GEN —
99132-21210 note Bulb(FOR REAR COMBINATION LAMP)
1981-08 → 1983-09 ended
TA60 GEN;CA60,TA6# (CP,WG) EUR —
81551 — Lens, Rear Combination Lamp, RH
81551-14420 Lens, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
81551-14550 Lens, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
TA60 SED GEN —
81551-14600 Lens, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
TA6# CP —
81551-91C01 Lens, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
CA60,TA6# WG —
81554A — Gasket, Rear Combination Lamp Body, NO.1 RH
81552-14600 Gasket, Rear Combination Lamp Body, NO.1 RH
1981-08 → 1983-09 ended
TA6# CP —
81554B — Gasket, Rear Combination Lamp Body, NO.2 RH
81552-14390 Gasket, Rear Combination Lamp Body, NO.2 RH
1981-08 → 1983-09 ended
TA6# CP —
81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81555-14420 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
81555-14550 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
TA60 SED GEN —
81555-14600 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
TA6# CP —
81555-91C02 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
CA60,TA6# WG —
81555A — Socket & Wire Sub-assy, Rear Combination Lamp, RH
81556-14600 Socket & Wire Sub-assy, Rear Combination Lamp, RH
1981-08 → 1983-09 ended
TA6# CP —
81560 — Lamp Assy, Rear Combination, LH
81560-80102 Lamp Assy, Rear Combination, LH
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
81560-80112 Lamp Assy, Rear Combination, LH
1981-08 → 1983-09 ended
TA60 SED GEN —
81560-80115 Lamp Assy, Rear Combination, LH
1981-08 → 1983-09 ended
CA60,TA6# WG —
81560-80118 Lamp Assy, Rear Combination, LH
1981-08 → 1983-09 ended
TA6# CP —
81561 — Lens, Rear Combination Lamp, LH
81561-14420 Lens, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
81561-14550 Lens, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
TA60 SED GEN —
81561-14590 Lens, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
TA6# CP —
81561-91C01 Lens, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
CA60,TA6# WG —
81564A — Gasket, Rear Combination Lamp Body, NO.1 LH
81552-14600 Gasket, Rear Combination Lamp Body, NO.1 LH
1981-08 → 1983-09 ended
TA6# CP —
81564B — Gasket, Rear Combination Lamp Body, NO.2 LH
81552-14390 Gasket, Rear Combination Lamp Body, NO.2 LH
1981-08 → 1983-09 ended
TA6# CP —
81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81555-91C02 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
CA60,TA6# WG —
81565-14420 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
CA60,TA6# SED EUR —
81565-14550 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
TA60 SED GEN —
81565-14590 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
TA6# CP —
81565A — Socket & Wire Sub-assy, Rear Combination Lamp, LH
81556-14600 Socket & Wire Sub-assy, Rear Combination Lamp, LH
1981-08 → 1983-09 ended
TA6# CP —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
