Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe
Discontinued model
Data version 1984-02

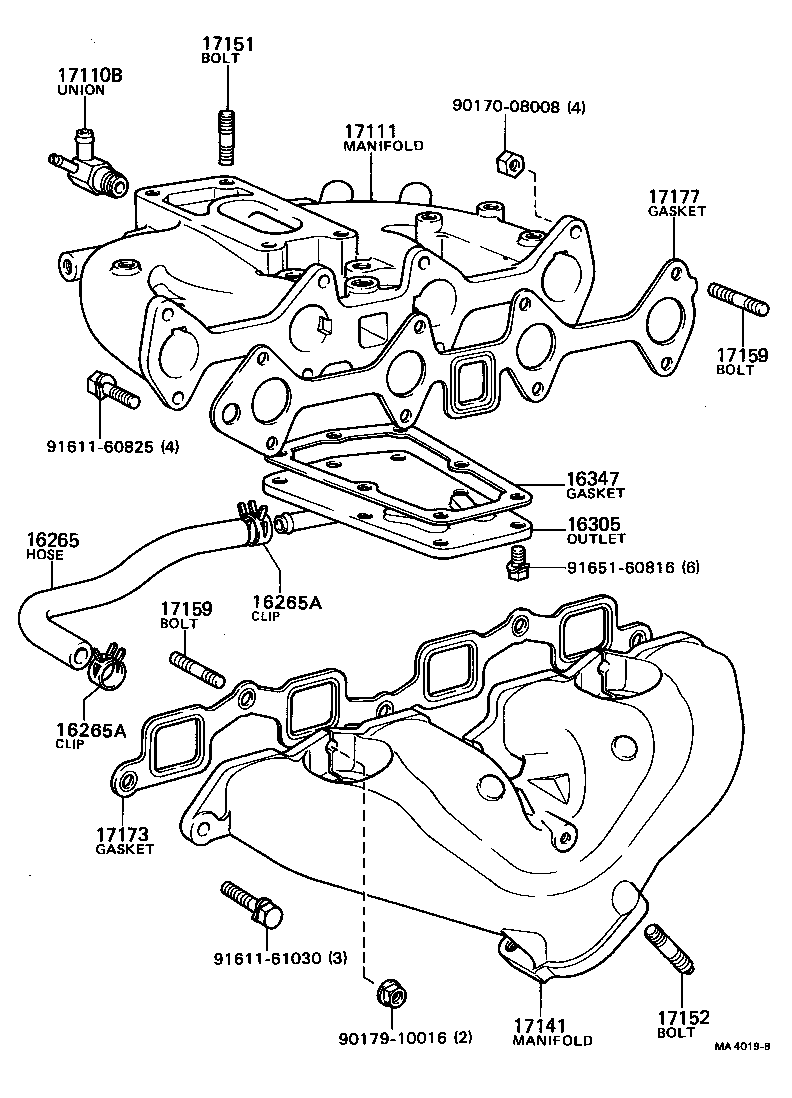

Manifold
21 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 16265 | Hose, Intake Manifold Water |
| 16265A | Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER) |
| 16305 | Outlet Sub-assy, Water By-pass |
| 16347 | Gasket, Water By-pass |
| 17110B | Union(FOR VENTILATION HOSE TO MANIFOLD) |
| 17111 | Manifold, Intake |
| 17111A | Plug, NO.1 |
| 17112 | Manifold, Intake, NO.2 |
| 17112A | Bolt, Stud(FOR INTAKE MANIFOLD NO.2 SET) |
| 17112B | Washer, Seal(FOR INTAKE MANIFOLD NO.2 SET) |
| 17118 | Stay, Manifold |
| 17118B | Insulator, Intake Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17151 | Bolt, Stud(FOR MANIFOLD TO CARBURETOR) |
| 17152 | Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
