Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 3 illustrations

Illustrations

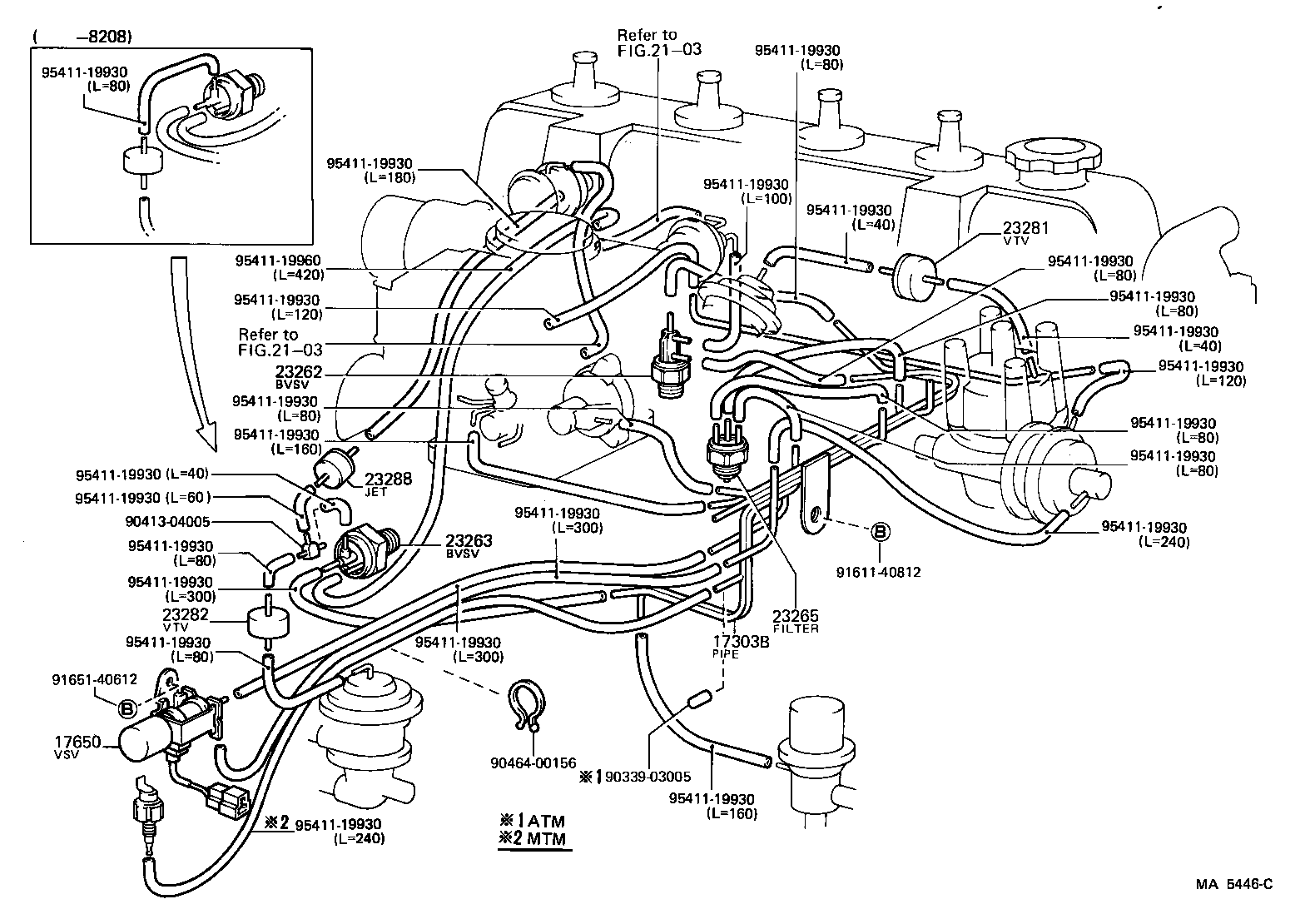

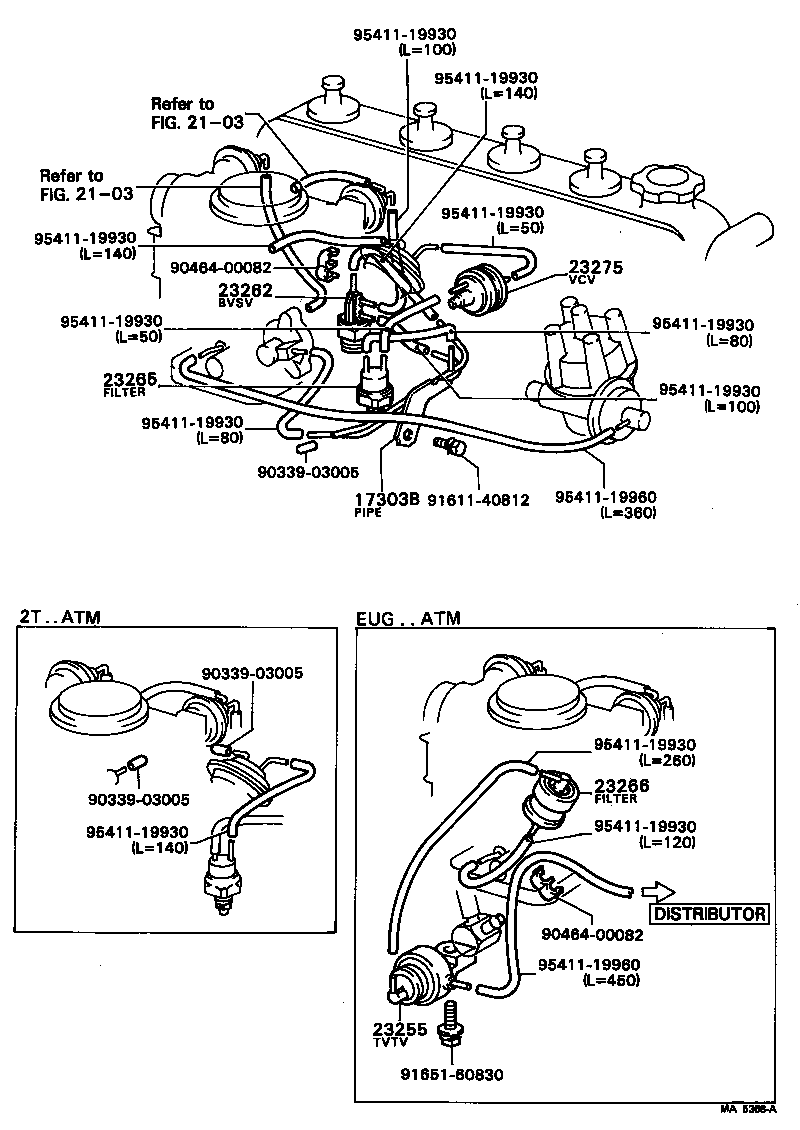

Figure MA9501 MA9501 1981-08 → — Figure MA5368A MA5368A 1981-08 → — Figure MA5446C MA5446C 1981-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
23255 Valve, Thermostatic Vacuum Transmitting, NO.1
23262 Valve, Bimetal Vacuum Switching, NO.1
23263 Valve, Bimetal Vacuum Switching, NO.2
23265 Filter, Gas, NO.1
23266 Filter, Gas, NO.2
23275 Valve, Vacuum Control, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23282 Valve, Vacuum Transmitting, NO.2
23288 Jet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
