Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Propeller Shaft & Universal Joint

24 part groups · 3 illustrations

Illustrations

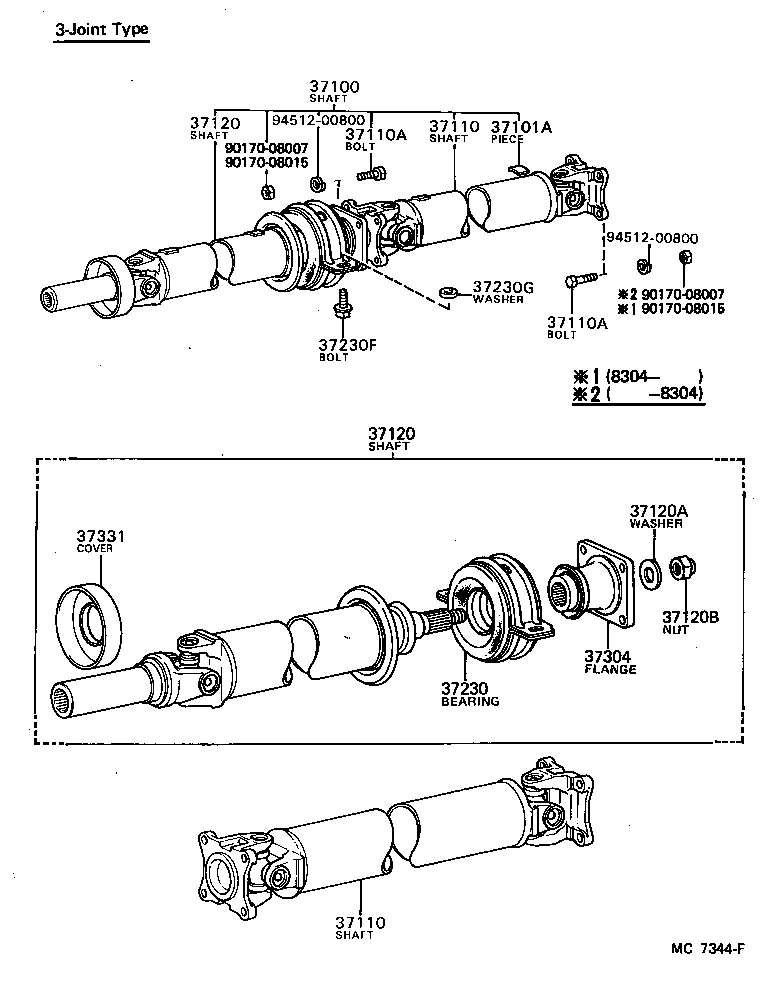

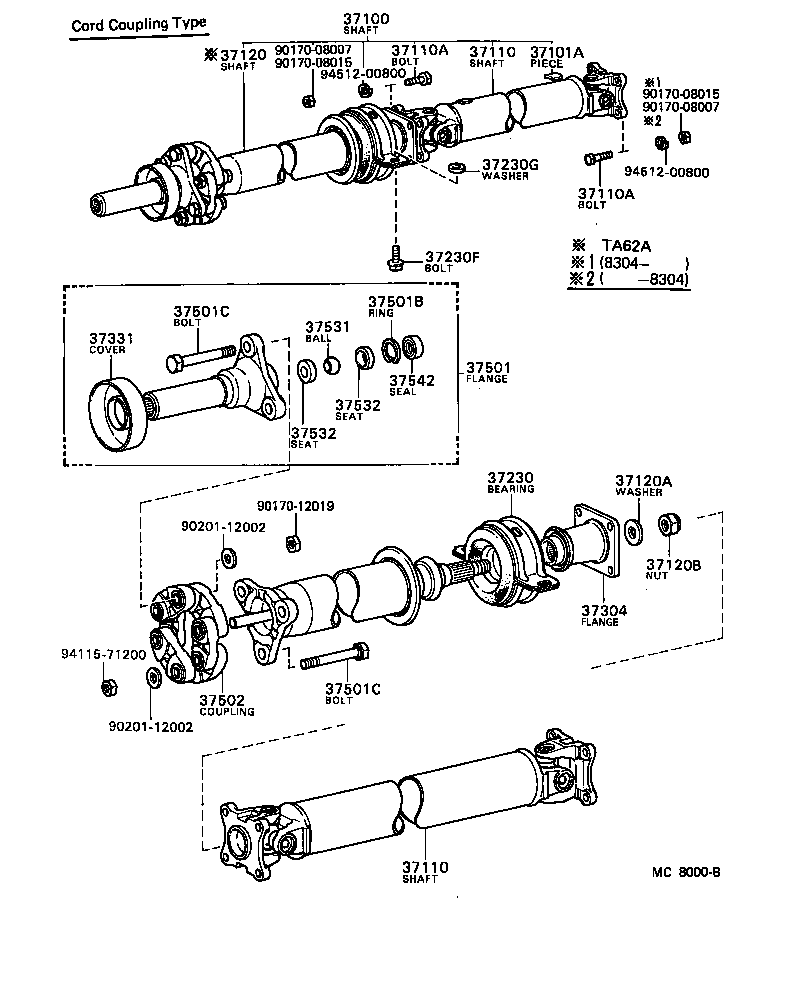

Figure MC5088F MC5088F 1981-08 → — Figure MC7344F MC7344F 1981-08 → — Figure MC8000B MC8000B 1981-08 → —

Part groups

PNCDescription
37100 Shaft Assy, Propeller W/Center Bearing
37101A Piece, Balance, NO.1 (FOR PROPELLER SHAFT)
37110 Shaft Assy, Propeller
37110A Bolt (FOR PROPELLER SHAFT)
37120 Shaft Assy, Propeller Intermediate
37120A Washer, Plate (FOR PROPELLER INTERMEDIATE SHAFT SET)
37120B Nut (FOR PROPELLER INTERMEDIATE SHAFT SETTING)
37230 Bearing Assy, Center Support, NO.1
37230F Bolt, NO.1 (FOR CENTER SUPPORT BEARING)
37230G Washer, NO.2 (FOR CENTER SUPPORT BEARING)
37302 Yoke Sub-assy, Universal Joint Sleeve
37304 Flange Sub-assy, Universal Joint
37315 Yoke, Universal Joint Flange
37331 Cover, Sliding Shaft Dust
37401 Spider Kit, Universal Joint
37401A Ring, Hole Snap (FOR SPIDER BEARING)
37402 Bearing Sub-assy, Universal Joint Spider
37501 Flange Sub-assy, Flexible Coupling Sleeve
37501B Ring, Hole Snap (FOR FLEXIBLE COUPLING SLEEVE FLANGE)
37501C Bolt (FOR FLEXIBLE COUPLING SLEEVE FLANGE)
37502 Coupling Sub-assy, Flexible
37531 Ball, Flexible Coupling Centering
37532 Seat, Flexible Coupling
37542 Seal, Centering (FOR FLEXIBLE COUPLING SLEEVE FLANGE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
