Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 2 illustrations

Illustrations

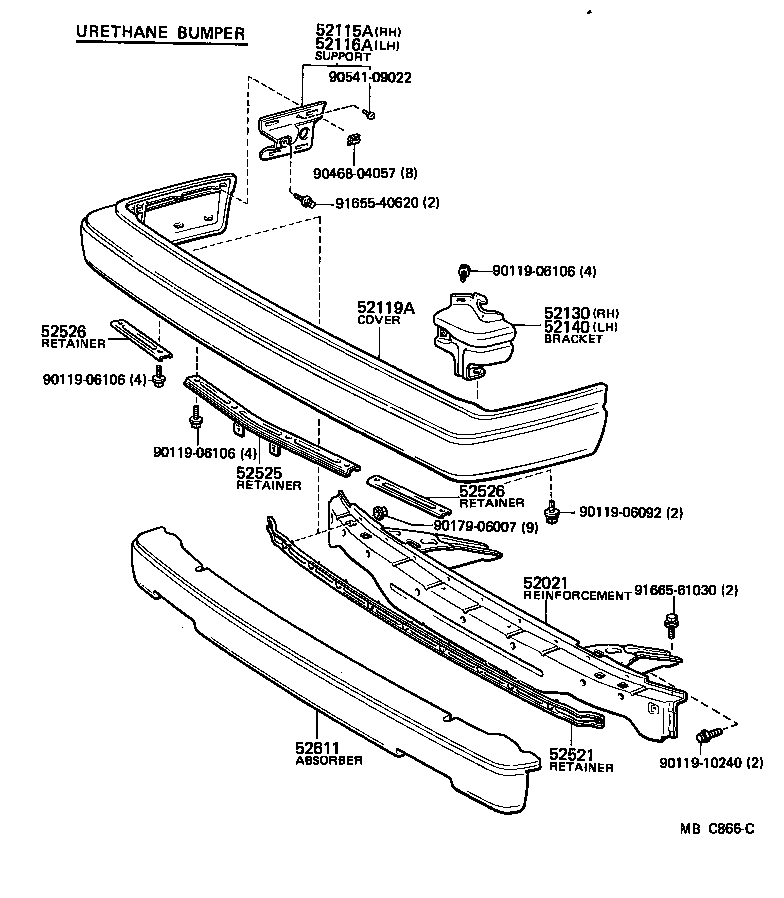

Figure MBC865C MBC865C 1981-08 → — Figure MBC866C MBC866C 1981-08 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52130 Bracket Assy, Front Bumper Side Mounting, RH
52140 Bracket Assy, Front Bumper Side Mounting, LH
52521 Retainer, Front Bumper, Upper Center
52525 Retainer, Front Bumper, Lower Center
52526 Retainer, Front Bumper, Lower Side
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
