Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

14 part groups · 3 illustrations

Illustrations

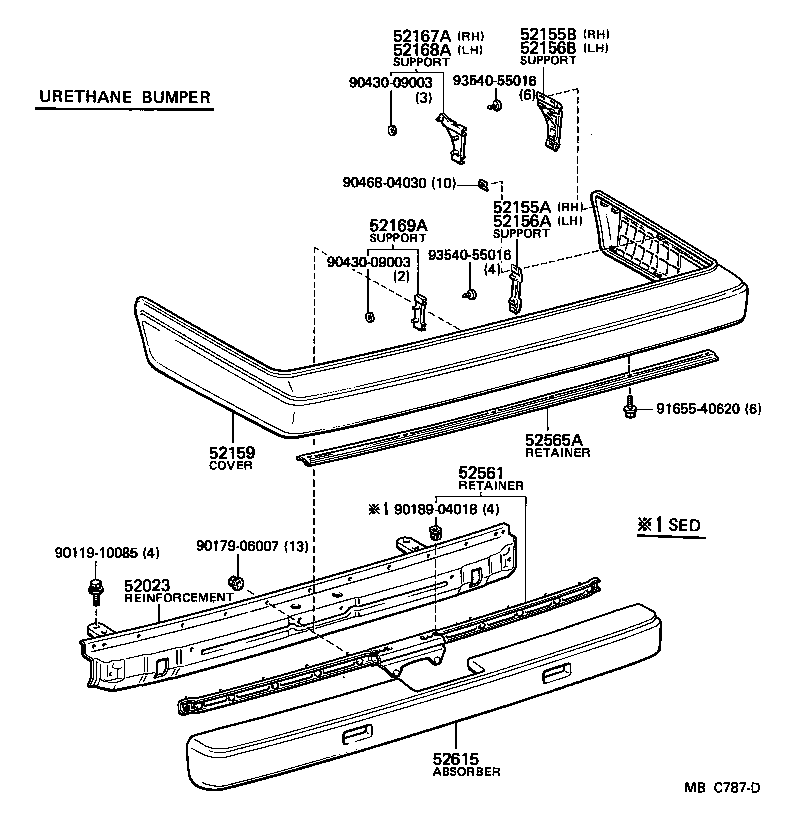

Figure MBC867D MBC867D 1981-08 → — Figure MBC787D MBC787D 1981-08 → — Figure MBC788F MBC788F 1981-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52155A Support, Rear Bumper Side, RH
52155B Support, Rear Bumper Side, NO.2 RH
52155C Support, Rear Bumper Side, NO.1 RH
52156A Support, Rear Bumper Side, LH
52156B Support, Rear Bumper Side, NO.2 LH
52159 Cover, Rear Bumper
52167A Support, Rear Bumper Side, NO.4 RH
52168A Support, Rear Bumper Side, NO.4 LH
52169A Support, Rear Bumper Side, NO.3
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
52705 Moulding Sub-assy, Rear Bumper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
