Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe
Discontinued model
Data version 1984-02

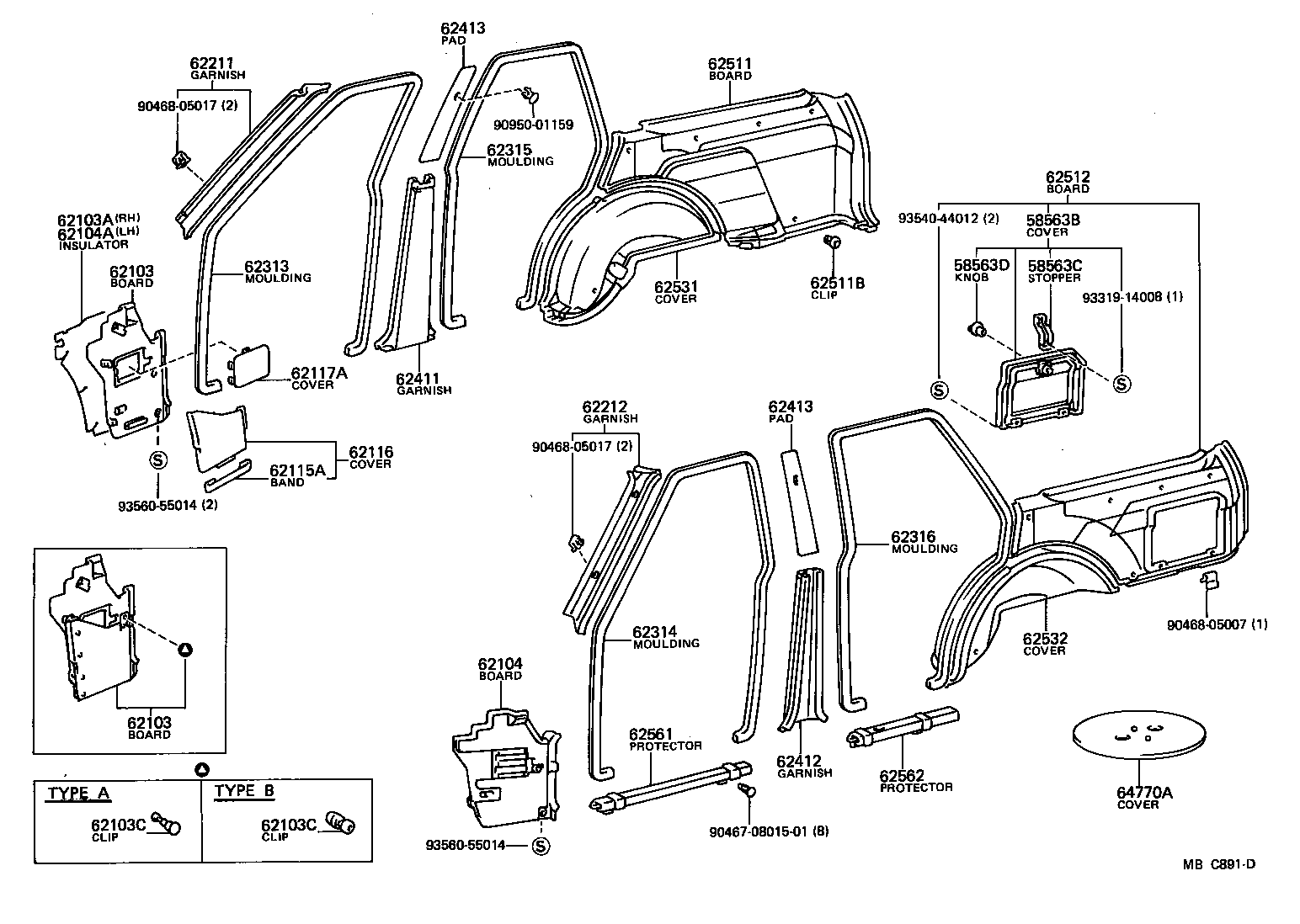

Inside Trim Board & Door Opening Trim Moulding
53 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58563B | Cover, Jack |
| 58563C | Stopper, Jack Cover |
| 58563D | Knob, Jack Cover |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62103A | Insulator Sub-assy, Cowl Side, RH |
| 62103C | Clip, Cowl Side Trim Board Set |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62104A | Insulator Sub-assy, Cowl Side, LH |
| 62115A | Band, Cowl Side Trim |
| 62116 | Cover, Cowl Side Trim, Lower |
| 62117A | Cover, Cowl Side Trim Service Hole |
| 62211 | Garnish, Front Pillar, RH |
| 62212 | Garnish, Front Pillar, LH |
| 62310 | Weatherstrip, Roof Side Rail, RH |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62320 | Weatherstrip, Roof Side Rail, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62413 | Pad, Center Pillar Garnish |
| 62416 | Garnish, Center Pillar, Upper |
| 62430 | Garnish Assy, Roof Side Rail, RH |
| 62430B | Joint, Roof Side Rail Garnish, RH |
| 62440 | Garnish Assy, Roof Side Rail, LH |
| 62440B | Joint, Roof Side Rail Garnish, LH |
| 62442 | Retainer, Roof Side Rail Garnish |
| 62461 | Garnish, Roof Side Trim, RH |
| 62462 | Garnish, Roof Side Trim, LH |
| 62475 | Pad, Roof Side Inner Garnish |
| 62475A | Pad, Roof Side Inner Garnish, NO.2 |
| 62501A | Panel Assy, Quarter Trim, RH |
| 62502A | Panel Assy, Quarter Trim, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62511B | Clip (FOR QUARTER INSIDE TRIM BOARD) |
| 62511M | Louver Sub-assy, Quarter Ventilation |
| 62512 | Board, Quarter Inside Trim, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62535 | Pad, Quarter Wheel House Trim |
| 62536 | Cover, Quarter Wheel House Trim Front, RH |
| 62537 | Cover, Quarter Wheel House Trim Front, LH |
| 62539A | Cover, Quarter Trim Upper Belt Hole |
| 62561 | Protector, Rocker Panel, Inner Front |
| 62562 | Protector, Rocker Panel, Inner Rear |
| 62565 | Garnish, Rear Seat Side, RH |
| 62565A | Clip (FOR REAR SEAT SIDE GARNISH) |
| 62566 | Garnish, Rear Seat Side, LH |
| 62571A | Garnish, Roof Side, Inner Lower RH |
| 62572A | Garnish, Roof Side Inner Lower LH |
| 62597B | Clamp, Quarter Trim |
| 64770A | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
