Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

17 part groups · 3 illustrations

Illustrations

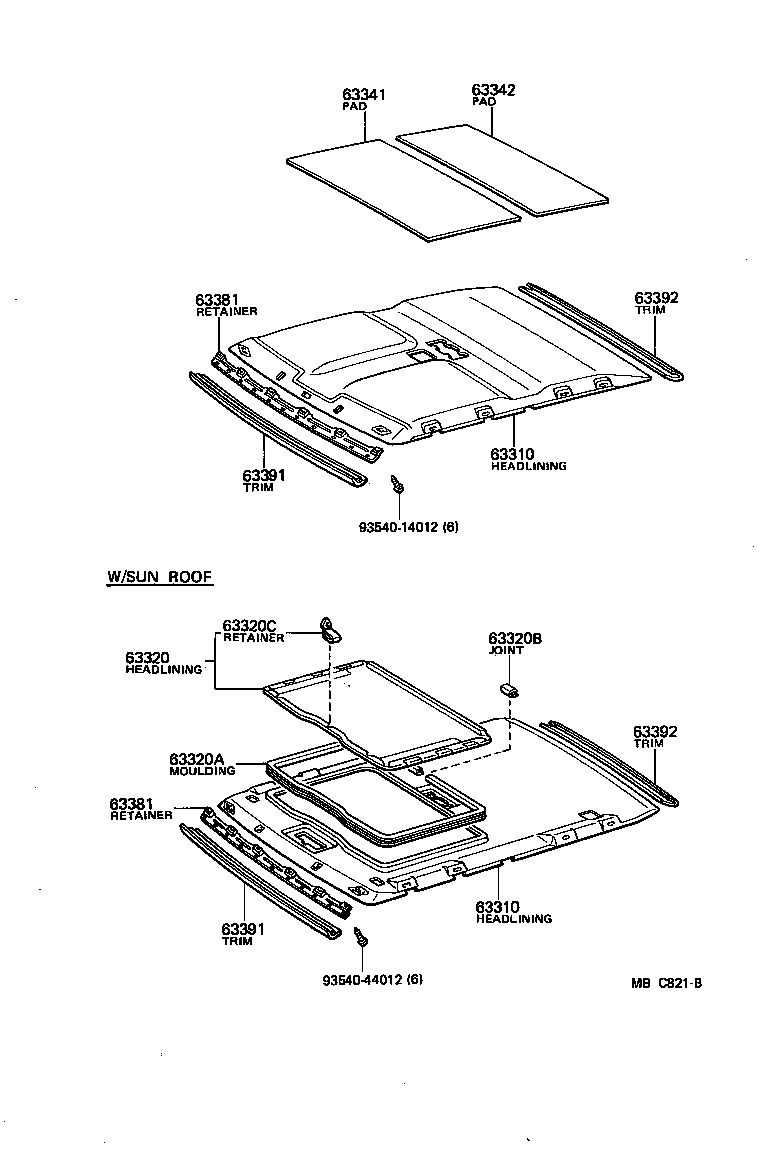

Figure MBC820C MBC820C 1981-08 → — Figure MBC821B MBC821B 1981-08 → — Figure MBC822B MBC822B 1981-08 → —

Part groups

PNCDescription
63310 Headlining Assy, Roof
63320 Headlining Assy, Sun Roof OR Removable Roof
63320A Moulding, Sun Roof OR Removable Roof Opening Trim
63320B Joint, Sun Roof Opening Trim
63320C Retainer, Trim Board(FOR SUN ROOF)
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63361 Support, Roof Headlining, NO.1
63362 Support, Roof Headlining, NO.2
63363 Support, Roof Headlining, NO.3
63364 Support, Roof Headlining, NO.4
63365 Support, Roof Headlining, NO.5
63372 Retainer, Headlining Support
63381 Retainer, Headlining, Front
63391 Trim, Roof Headlining, Front
63392 Trim, Roof Headlining, Rear
63393A Trim, Roof Headlining, Side, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
