Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe
Discontinued model
Data version 1984-02

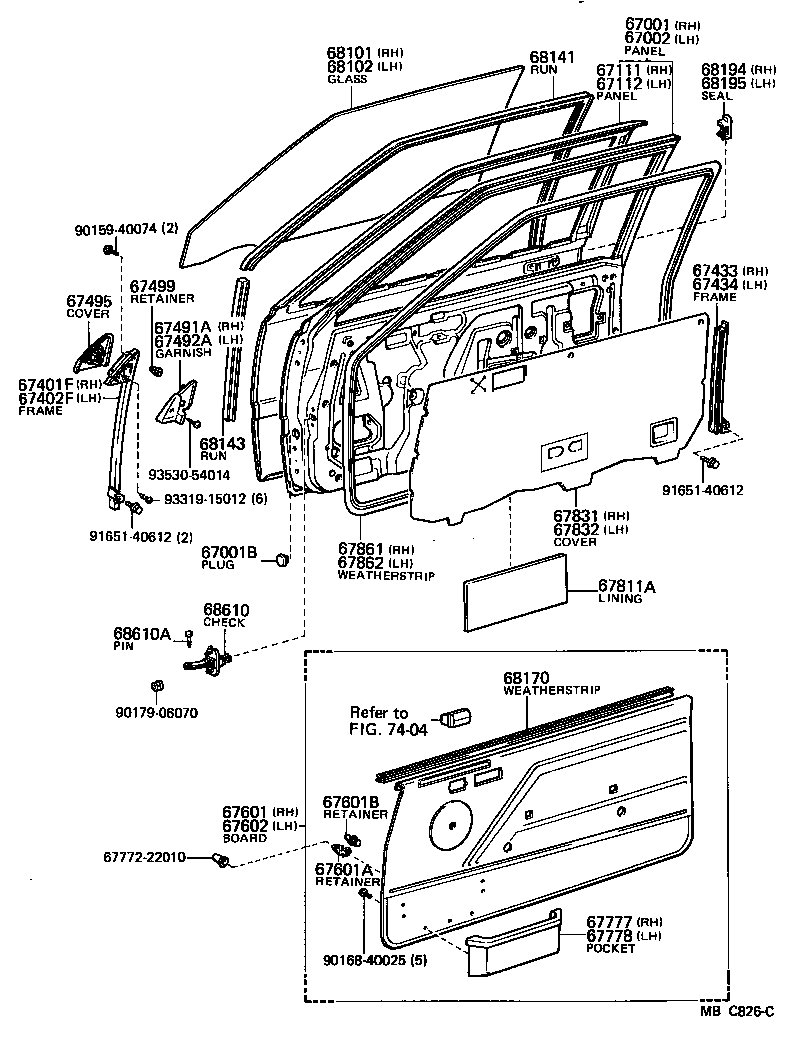

Front Door Panel & Glass
36 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67001 | Panel Sub-assy, Front Door, RH |
| 67001A | Cushion, Front Door Panel |
| 67001B | Plug, Hole(FOR FRONT DOOR PANEL) |
| 67001C | Grommet(FOR FRONT DOOR PANEL) |
| 67002 | Panel Sub-assy, Front Door, LH |
| 67111 | Panel, Front Door, Outer RH |
| 67112 | Panel, Front Door, Outer LH |
| 67401F | Frame Sub-assy, Front Door, Front Lower RH |
| 67402F | Frame Sub-assy, Front Door, Front Lower LH |
| 67433 | Frame, Front Door Window, Rear Lower RH |
| 67434 | Frame, Front Door Window, Rear Lower LH |
| 67491A | Garnish, Front Door Lower Frame Bracket, RH |
| 67492A | Garnish, Front Door Lower Frame Bracket, LH |
| 67495 | Cover, Front Door Front Lower Frame, Upper |
| 67499 | Retainer, Front Door Lower Frame Bracket Garnish |
| 67601 | Board Sub-assy, Front Door Trim, RH |
| 67601A | Retainer(FOR FRONT DOOR TRIM BOARD) |
| 67601B | Clip(FOR FRONT DOOR TRIM BOARD) |
| 67602 | Board Sub-assy, Front Door Trim, LH |
| 67777 | Pocket, Front Door Trim, RH |
| 67778 | Pocket, Front Door Trim, LH |
| 67785A | Holder, Door Locking Button Collar(FOR FRONT DOOR) |
| 67811A | Pad, Rear Door Silencer |
| 67831 | Cover, Front Door Service Hole, RH |
| 67832 | Cover, Front Door Service Hole, LH |
| 67861 | Weatherstrip, Front Door, RH |
| 67862 | Weatherstrip, Front Door, LH |
| 68101 | Glass Sub-assy, Front Door, RH |
| 68102 | Glass Sub-assy, Front Door, LH |
| 68141 | Run, Front Door Glass |
| 68143 | Run, Front Door Glass, Lower |
| 68170 | Weatherstrip Assy, Front Door Glass, Inner |
| 68194 | Seal, Front Door Belt, RH |
| 68195 | Seal, Front Door Belt, LH |
| 68610 | Check Assy, Front Door |
| 68610A | Pin(FOR FRONT DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
