Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

21 part groups · 2 illustrations

Illustrations

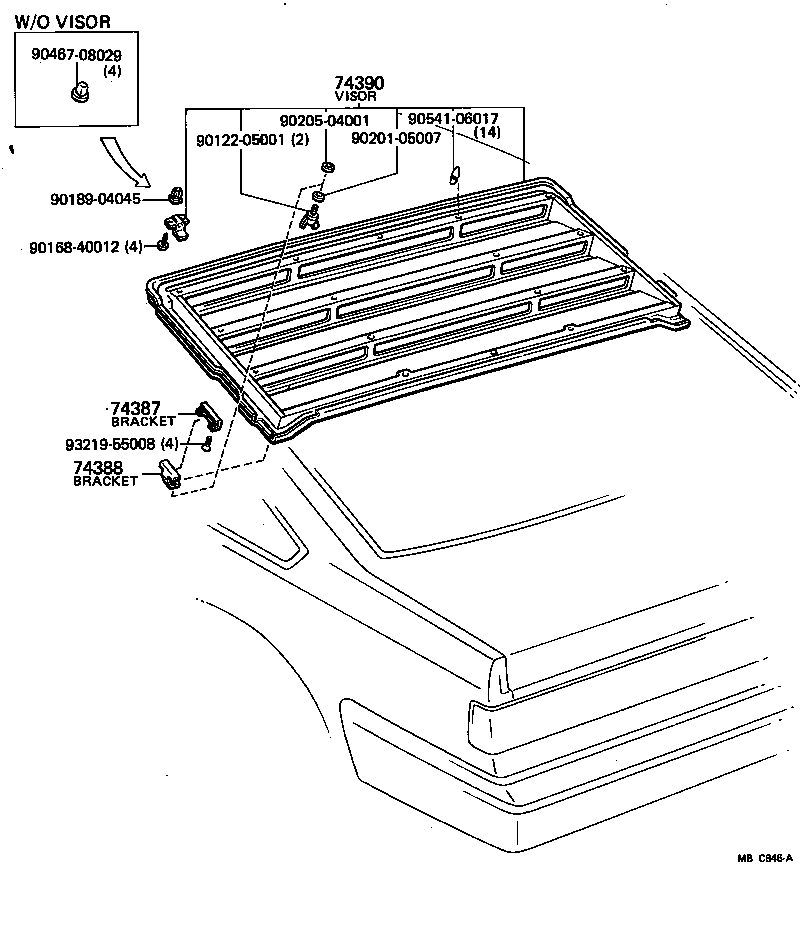

Figure MBC900C MBC900C 1981-08 → — Figure MBC846A MBC846A 1981-08 → —

Part groups

PNCDescription
74210 Armrest Assy, Front, RH
74210D Cap, Door Armrest
74220 Armrest Assy, Front, LH
74230 Armrest Assy, Rear, RH
74240 Armrest Assy, Rear, LH
74257 Spring, Armrest, NO.1
74281 Pocket, Door Armrest, RH
74282 Pocket, Door Armrest, LH
74285 Clip, Door Armrest Pocket
74286 Clip, Door Armrest Pocket, NO.2
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74387 Bracket, Rear Visor, NO.1
74388 Bracket, Rear Visor, NO.2
74390 Visor Assy, Rear, Inner
74603 Grip Sub-assy, Assist, Front
74604 Grip Sub-assy, Assist, Rear
74613 Plug, Assist Grip
74631 Hook, Coat, A
74671 Support, Assist Grip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
