Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

13 part groups · 2 illustrations

Illustrations

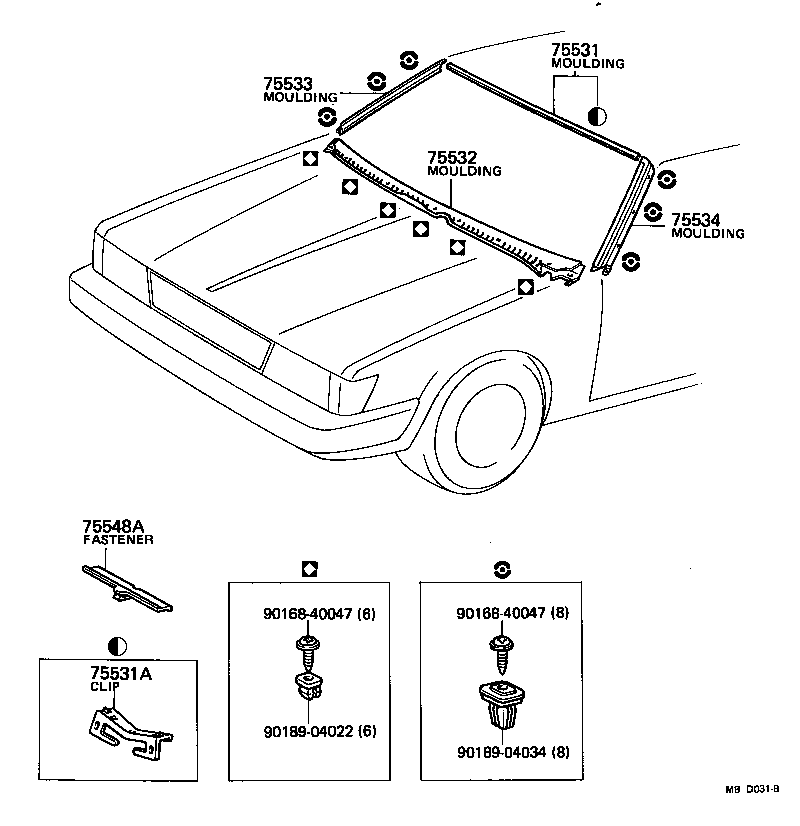

Figure MBC903A MBC903A 1981-08 → — Figure MBD031B MBD031B 1981-08 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75531A Clip, Windshield Moulding Set, NO.1
75532 Moulding, Windshield, Lower
75533 Moulding, Windshield, Outside RH
75533A Clip, Windshield Side Moulding, RH
75534 Moulding, Windshield, Outside LH
75534A Clip, Windshield Side Moulding, LH
75544 Moulding, Hood, Rear
75547 Moulding, Front Fender, RH
75548 Moulding, Front Fender, LH
75548A Fastener, Windshield Outside Moulding, NO.1
76545 Retainer, Windshield Moulding, RH
76546 Retainer, Windshield Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
