Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe
Discontinued model
Data version 1984-02

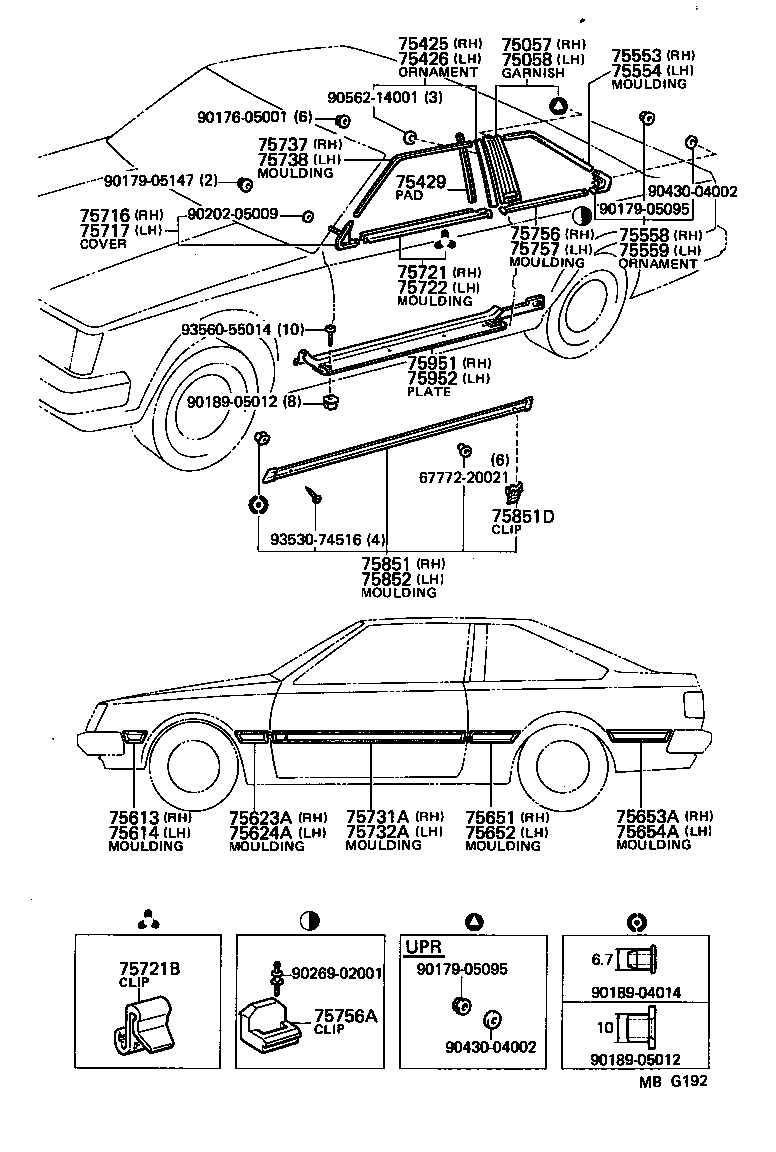

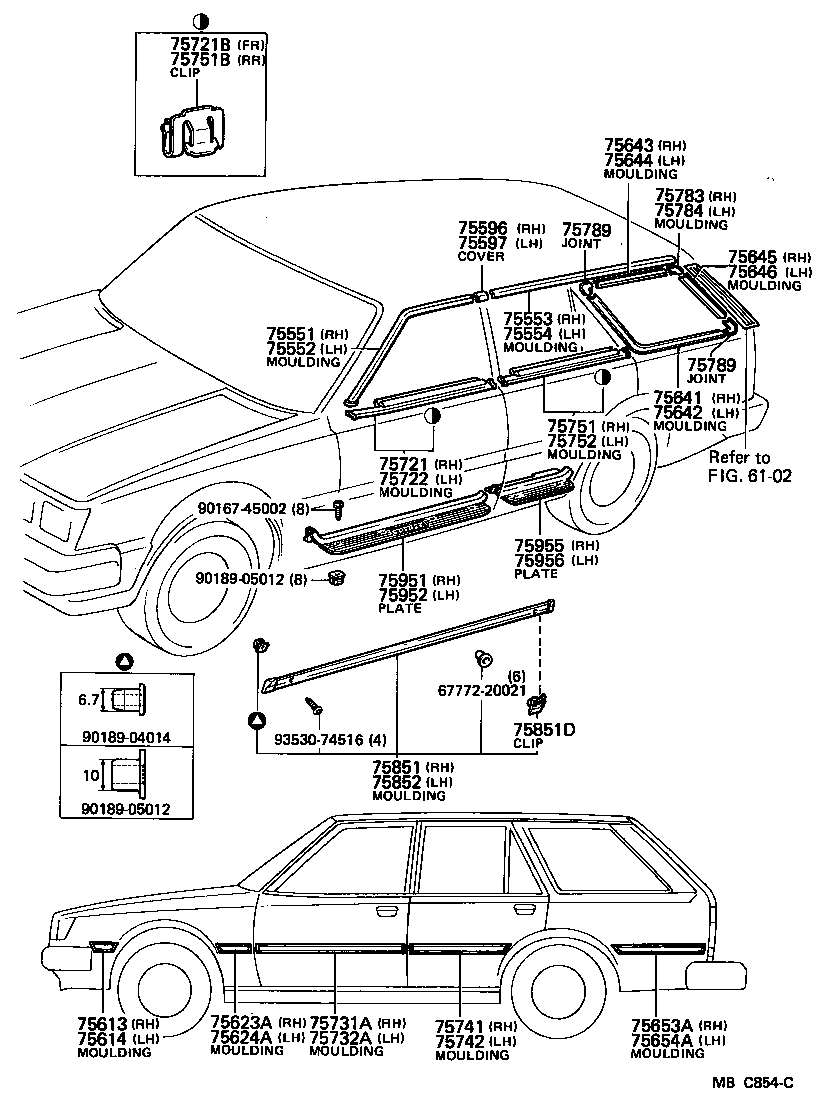

Side Moulding
54 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 75057 | Garnish Sub-assy, Center Pillar, Outer RH |
| 75058 | Garnish Sub-assy, Center Pillar, Outer LH |
| 75425 | Ornament, Front Door, RH |
| 75426 | Ornament, Front Door, LH |
| 75429 | Pad, Front Door Ornament |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553 | Moulding, Roof Drip Side Finish, RH |
| 75554 | Moulding, Roof Drip Side Finish, LH |
| 75558 | — |
| 75559 | — |
| 75596 | Cover, Roof Drip Side Finish Moulding Joint, RH |
| 75597 | Cover, Roof Drip Side Finish Moulding Joint, LH |
| 75613 | Moulding, Front Fender, Outside RH |
| 75614 | Moulding, Front Fender, Outside LH |
| 75623A | Moulding, Front Fender, Outside Rear RH |
| 75624A | Moulding, Front Fender, Outside Rear LH |
| 75641 | Moulding, Quarter Window, Outside Front RH |
| 75642 | Moulding, Quarter Window, Outside Front LH |
| 75643 | Moulding, Quarter Window, Outside Upper RH |
| 75644 | Moulding, Quarter Window, Outside Upper LH |
| 75645 | Moulding, Quarter Window, Outside Rear RH |
| 75646 | Moulding, Quarter Window, Outside Rear LH |
| 75651 | Moulding, Quarter, Outside RH |
| 75652 | Moulding, Quarter, Outside LH |
| 75653A | Moulding, Quarter, Outside Rear RH |
| 75654A | Moulding, Quarter, Outside Rear LH |
| 75716 | Cover, Front Door Belt Moulding End, Front RH |
| 75717 | Cover, Front Door Belt Moulding End, Front LH |
| 75721 | Moulding, Front Door Belt, RH |
| 75721B | Clip(FOR FRONT DOOR BELT MOULDING SET) |
| 75722 | Moulding, Front Door Belt, LH |
| 75731A | Moulding, Front Door, Outside RH |
| 75732A | Moulding, Front Door, Outside LH |
| 75737 | Moulding, Front Door Window Frame, Front RH |
| 75738 | Moulding, Front Door Window Frame, Front LH |
| 75741 | Moulding, Rear Door, Outside RH |
| 75742 | Moulding, Rear Door, Outside LH |
| 75751 | Moulding, Rear Door Belt, RH |
| 75751B | Clip (FOR REAR DOOR BELT MOULDING SET) |
| 75752 | Moulding, Rear Door Belt, LH |
| 75756 | Moulding, Quarter Belt, RH |
| 75756A | Clip, Belt Side Moulding |
| 75757 | Moulding, Quarter Belt, LH |
| 75783 | Moulding, Quarter Window, Upper RH |
| 75784 | Moulding, Quarter Window, Upper LH |
| 75789 | Joint, Quarter Window Moulding |
| 75851 | Moulding, Rocker Panel, RH |
| 75851D | Clip(FOR ROCKER PANEL MOULDING SET) |
| 75852 | Moulding, Rocker Panel, LH |
| 75951 | Plate, Front Door Scuff, Outside RH |
| 75952 | Plate, Front Door Scuff, Outside LH |
| 75955 | Plate, Rear Door Scuff, Outside RH |
| 75956 | Plate, Rear Door Scuff, Outside LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
