Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe
Discontinued model
Data version 1984-02

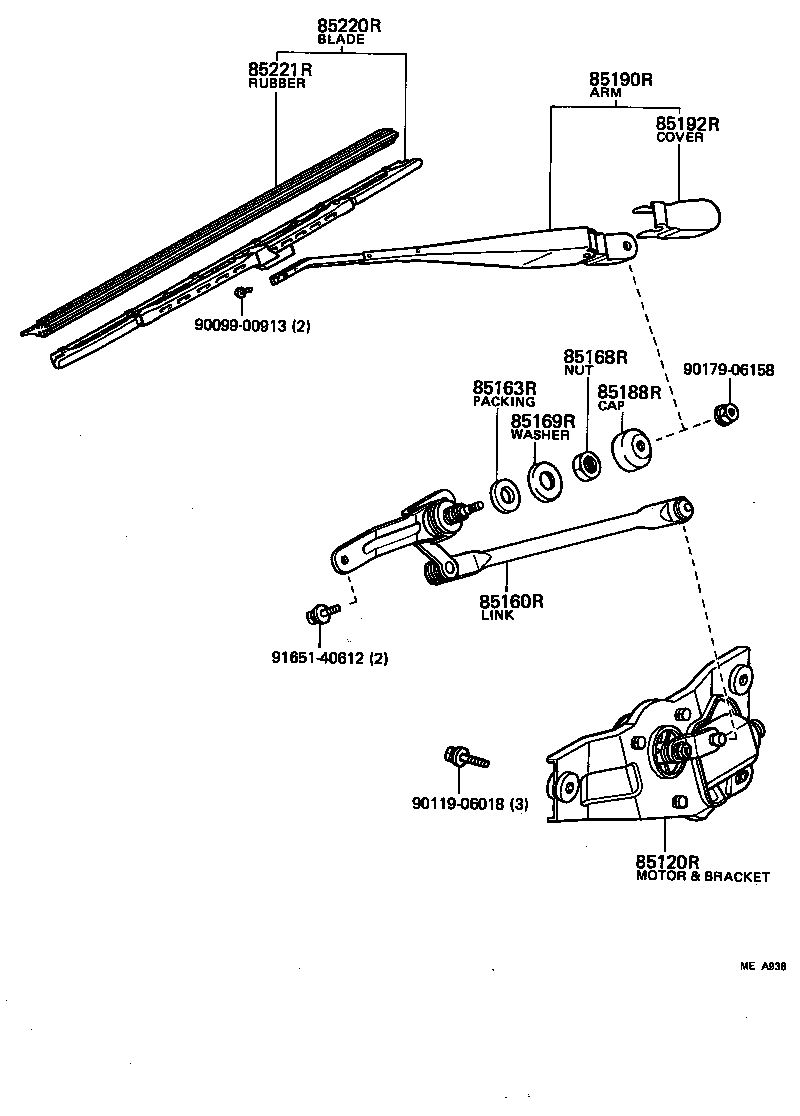

Rear Wiper
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85120R | Motor And Bracket Assy, Rear Wiper |
| 85160R | Link Assy, Rear Wiper |
| 85163R | Packing, Rear Wiper Pivot, NO.1 |
| 85168R | Nut, Rear Wiper Link Pivot, NO.1 |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85188R | Cap, Rear Wiper Pivot, NO.1 |
| 85190R | Arm Assy, Rear Wiper |
| 85192R | Cover, Rear Wiper Arm |
| 85220R | Blade Assy, Rear Wiper |
| 85221R | Blade, Rear Wiper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
