Toyota Carina
1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe
Discontinued model
Data version 1984-02

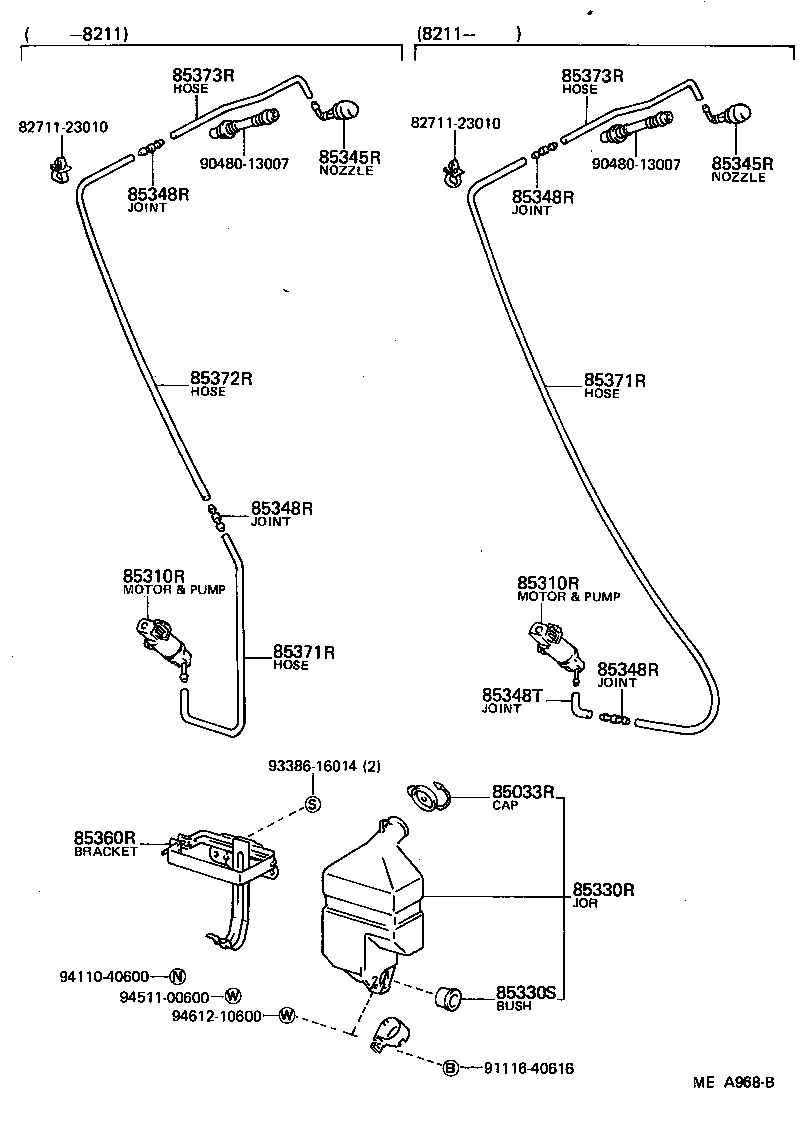

Rear Washer
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85033R | Cap Assy, Rear Washer |
| 85310R | Motor Assy, Rear Washer |
| 85330R | Jar Assy, Rear Washer |
| 85330S | Bush, Rear Washer Jar |
| 85345R | Nozzle, Rear Washer |
| 85348R | Joint, Rear Washer Hose, NO.1 |
| 85348T | Joint, Rear Washer Hose, NO.2 |
| 85348U | Joint, Rear Washer Hose, NO.3 |
| 85360R | Bracket Assy, Rear Washer |
| 85361R | Holder, Rear Washer |
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 85372R | Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE) |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
