Toyota Carina

1981-08 → 1983-09 · chassis TA6#,CA60 · catalogue 221230 · Europe

Discontinued model Data version 1984-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp Cleaner

14 part groups · 2 illustrations

Illustrations

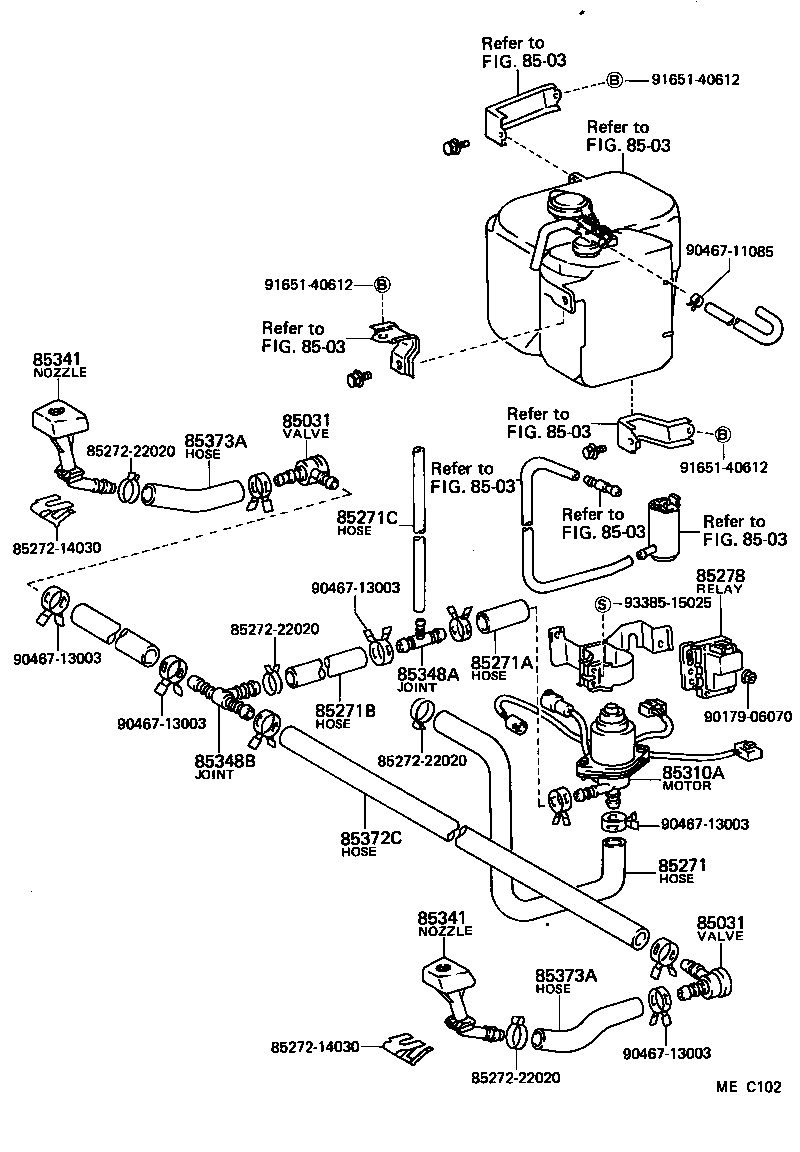

Figure MEA939C MEA939C 1981-08 → — Figure MEC102 MEC102 1982-04 → —

Part groups

PNCDescription
85031 Valve, Headlamp Cleaner Washer Hose
85230C Bracket Assy, Headlamp Cleaner
85271 Hose, Headlamp Cleaner, NO.1
85271A Hose, Headlamp Cleaner, NO.2
85271B Hose, Headlamp Cleaner, NO.3
85271C Hose, Headlamp Cleaner, NO.4
85278 Relay Assy, Headlamp Cleaner Control
85285 Jar, Headlamp Cleaner Washer
85310A Motor And Pump Assy, Headlamp Cleaner Washer
85341 Nozzle, Headlamp Cleaner Washer
85348A Joint, Headlamp Cleaner Hose, NO.1
85348B Joint, Headlamp Cleaner Hose, NO.2
85372C Hose, Headlamp Cleaner Washer (FROM JOINT TO VALVE)
85373A Hose, Headlamp Cleaner Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
