Toyota Prius
2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe
Discontinued model
Data version 2004-01

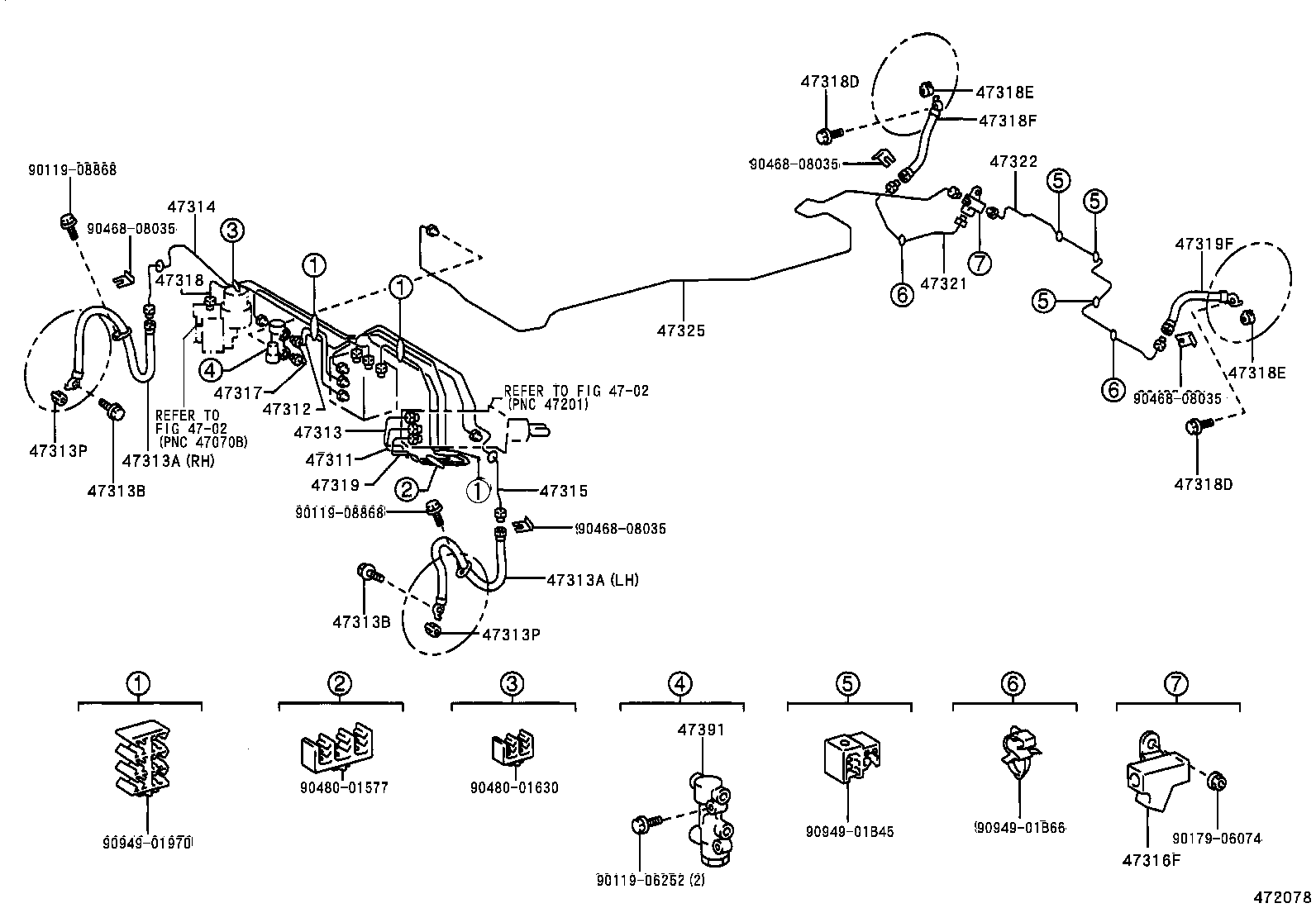

Brake Tube & Clamp
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 44510 | Actuator Assy, Brake |
| 44546A | Cushion, Brake Actuator Bolt |
| 44590 | Bracket Assy, Brake Actuator |
| 44591 | Bracket, Brake Actuator, NO.1 |
| 44593 | Bracket, Brake Actuator, NO.3 |
| 47159B | Bracket, Proportioning & By-pass Valve |
| 47311 | Tube, Front Brake, NO.1 |
| 47311B | Way, NO.1(FOR FRONT BRAKE TUBE) |
| 47312 | Tube, Front Brake, NO.2 |
| 47313 | Tube, Front Brake, NO.3 |
| 47313A | Hose, Flexible, NO.1(FOR FRONT) |
| 47313B | Bolt, Union(FOR FRONT FLEXIBLE HOSE) |
| 47313P | Gasket(FOR FRONT FLEXIBLE HOSE) |
| 47314 | Tube, Front Brake, NO.4 |
| 47315 | Tube, Front Brake, NO.5 |
| 47316 | Tube, Front Brake, NO.6 |
| 47316F | Way, 3(FOR REAR BRAKE TUBE) |
| 47317 | Tube, Front Brake, NO.7 |
| 47318 | Tube, Front Brake, NO.8 |
| 47318D | Bolt, Union(FOR REAR FLEXIBLE HOSE) |
| 47318E | Gasket(FOR REAR FLEXIBLE HOSE) |
| 47318F | Hose, Flexible(FOR REAR RH) |
| 47319 | Tube, Front Brake, NO.9 |
| 47319F | Hose, Flexible(FOR REAR LH) |
| 47321 | Tube, Rear Brake, NO.1 |
| 47322 | Tube, Rear Brake, NO.2 |
| 47325 | Tube, Rear Brake, NO.5 |
| 47371A | Clamp, Brake Tube, NO.1 |
| 47372 | Clamp, Brake Tube, NO.2 |
| 47391 | Way, Brake Tube |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
