Toyota Prius

2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 13 illustrations

Illustrations

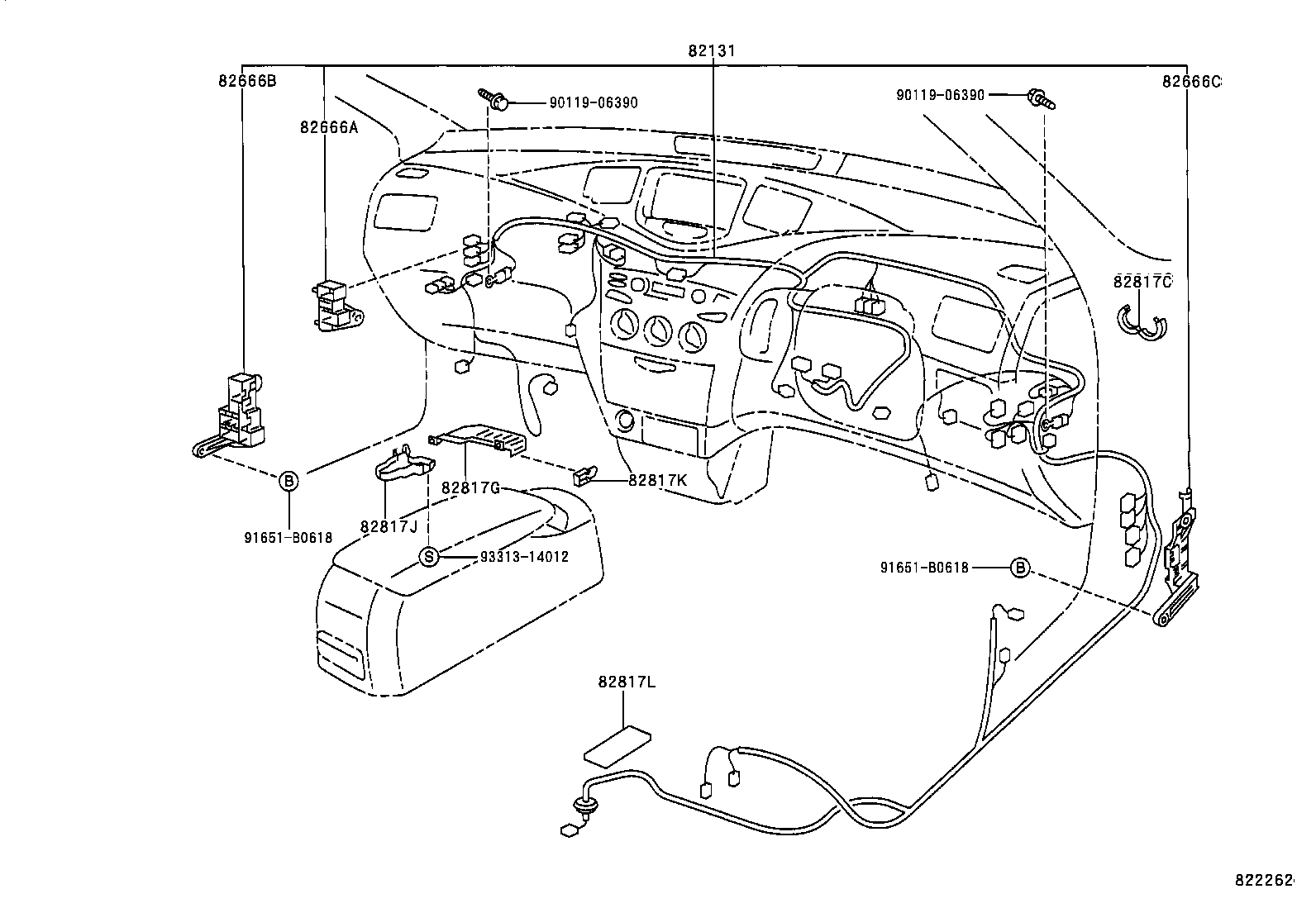

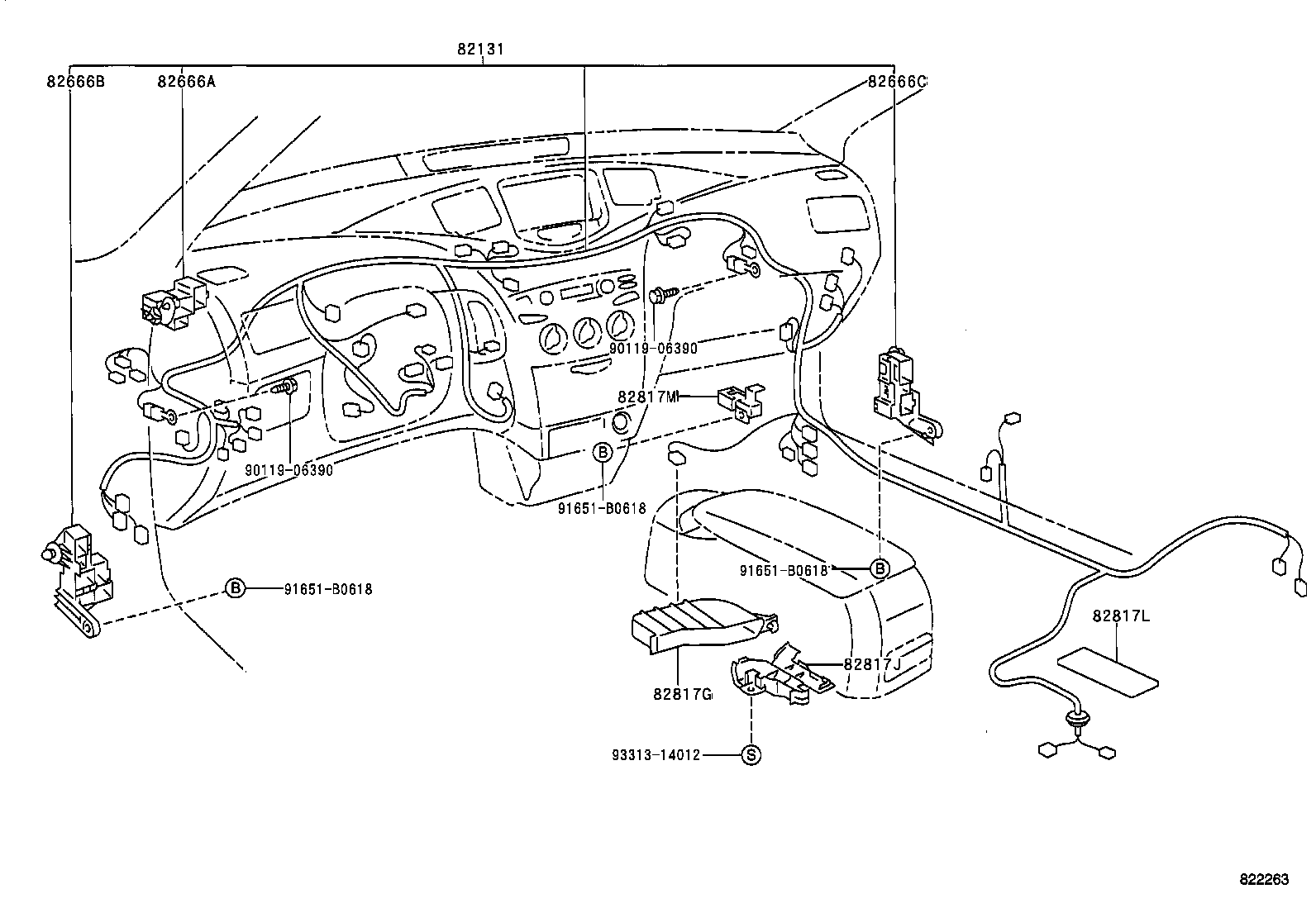

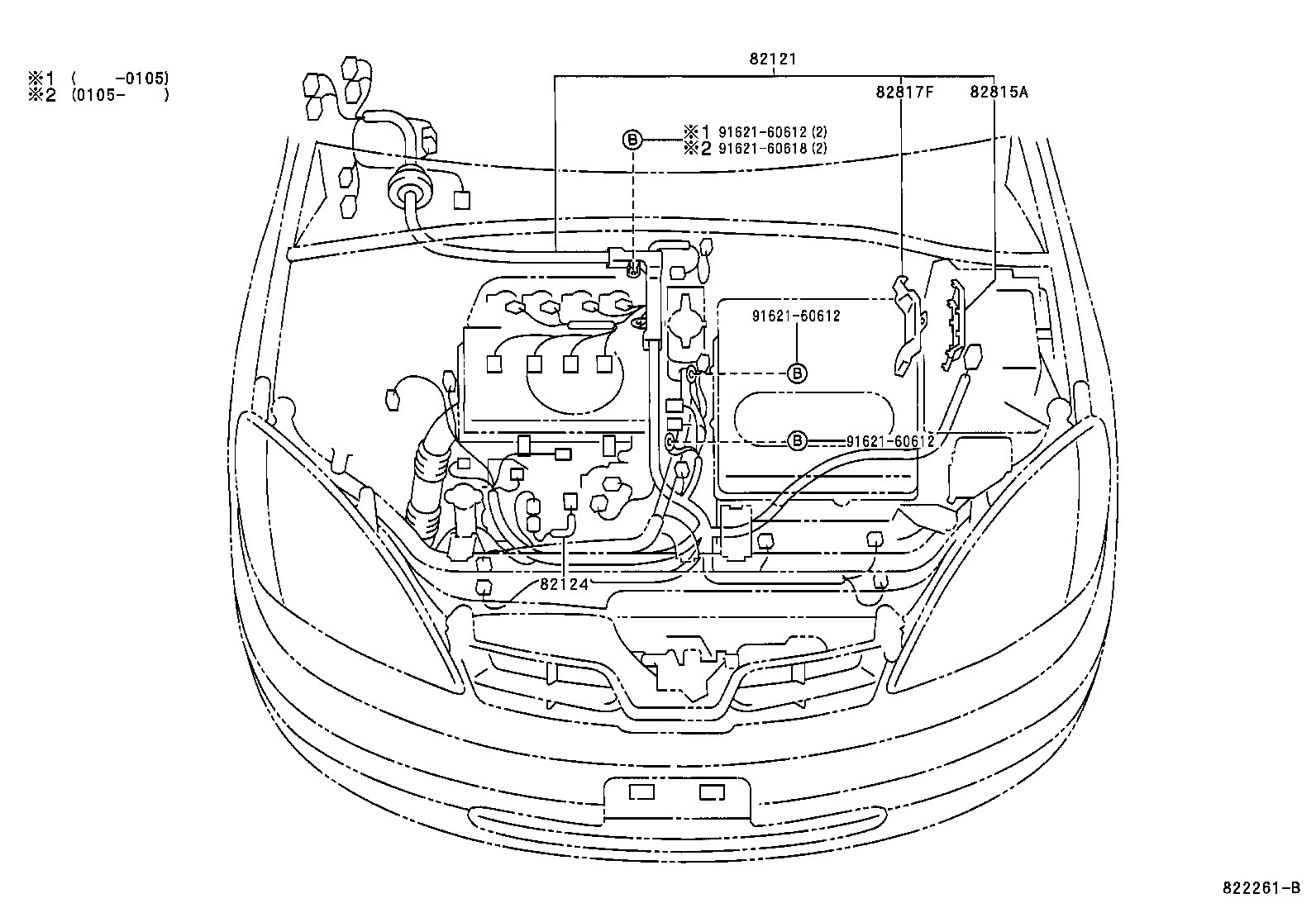

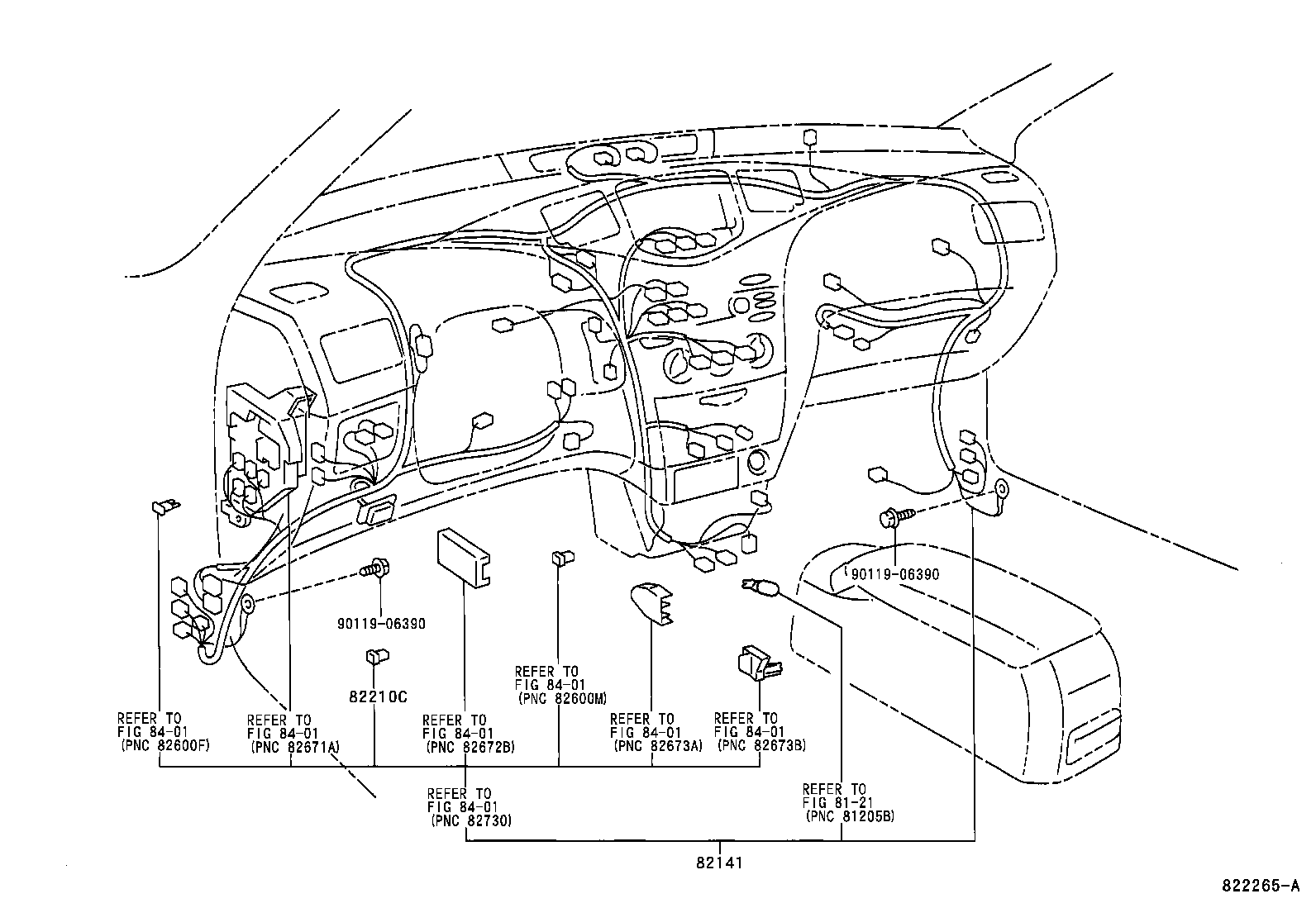

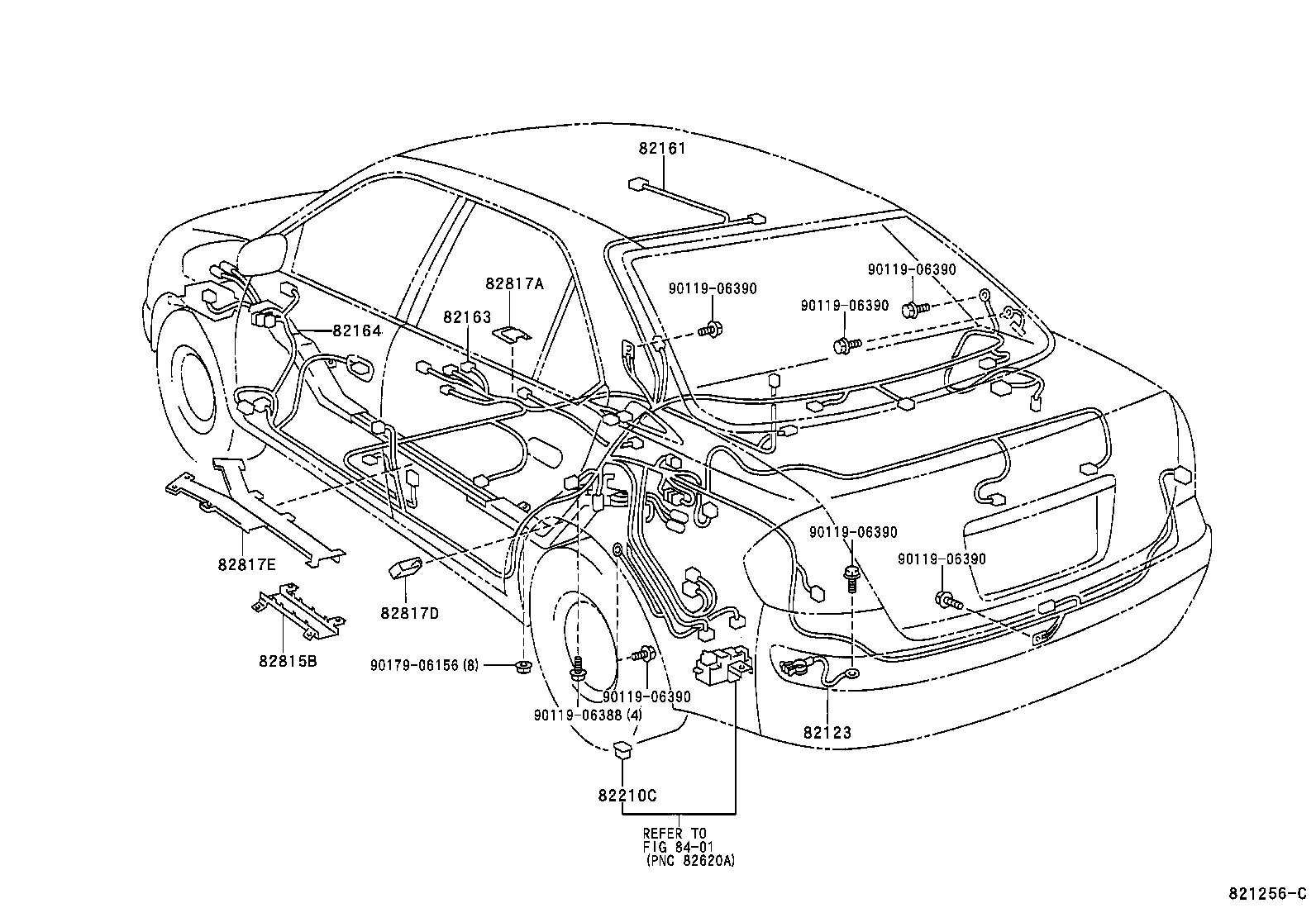

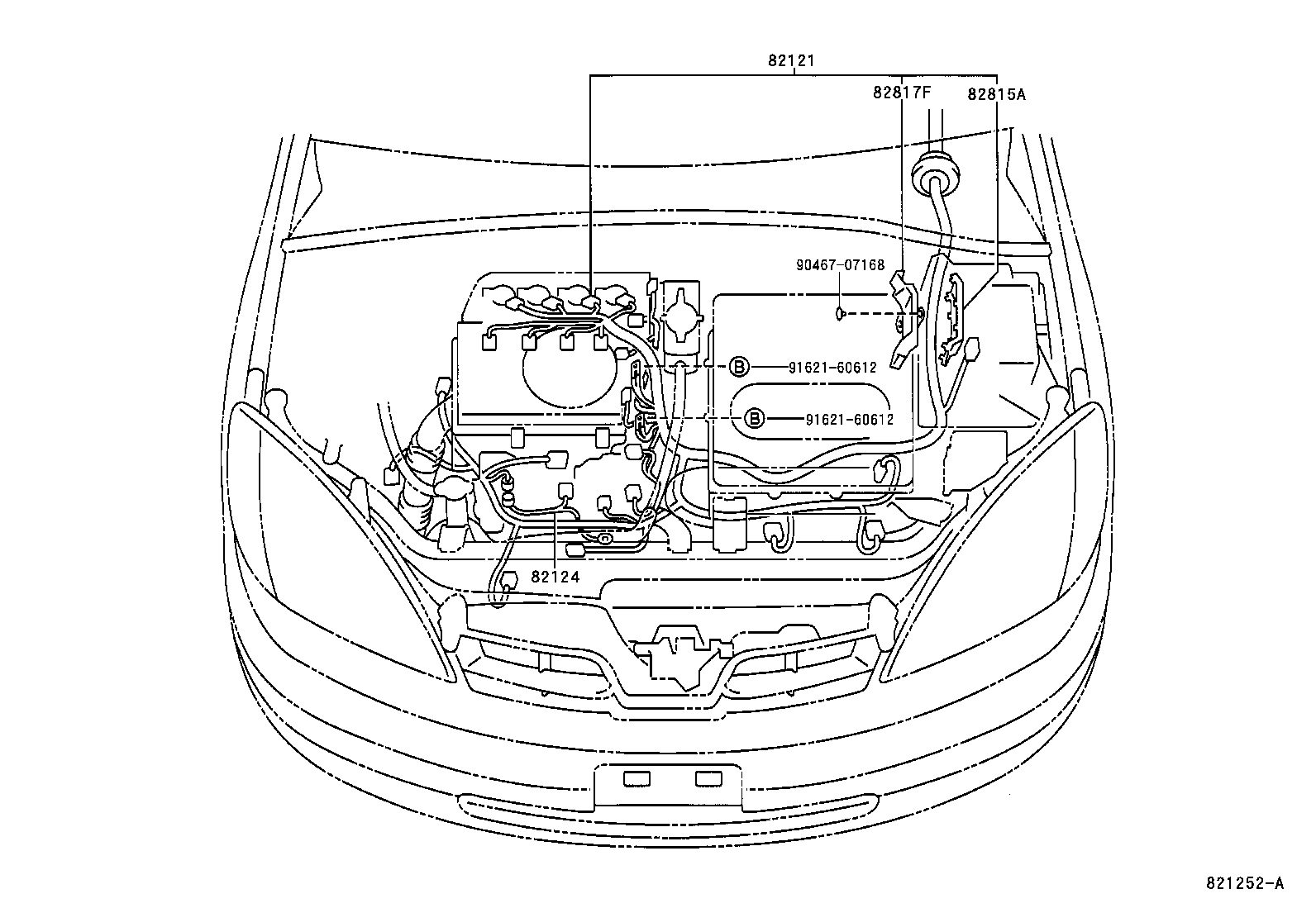

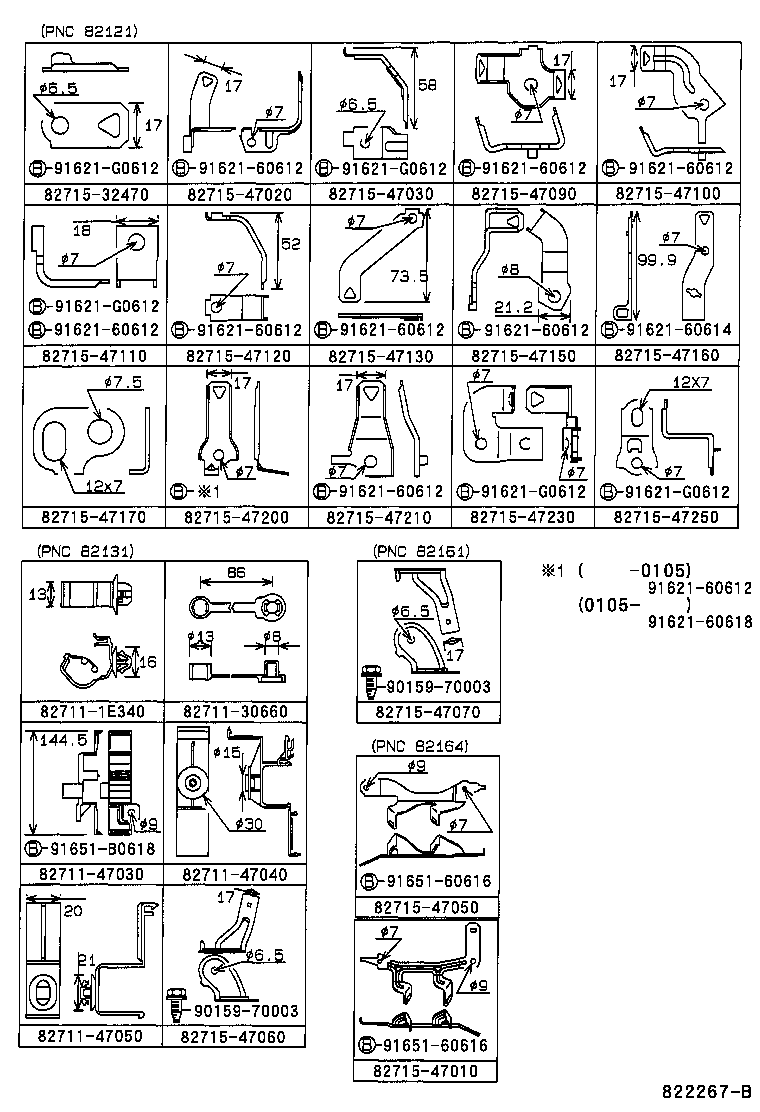

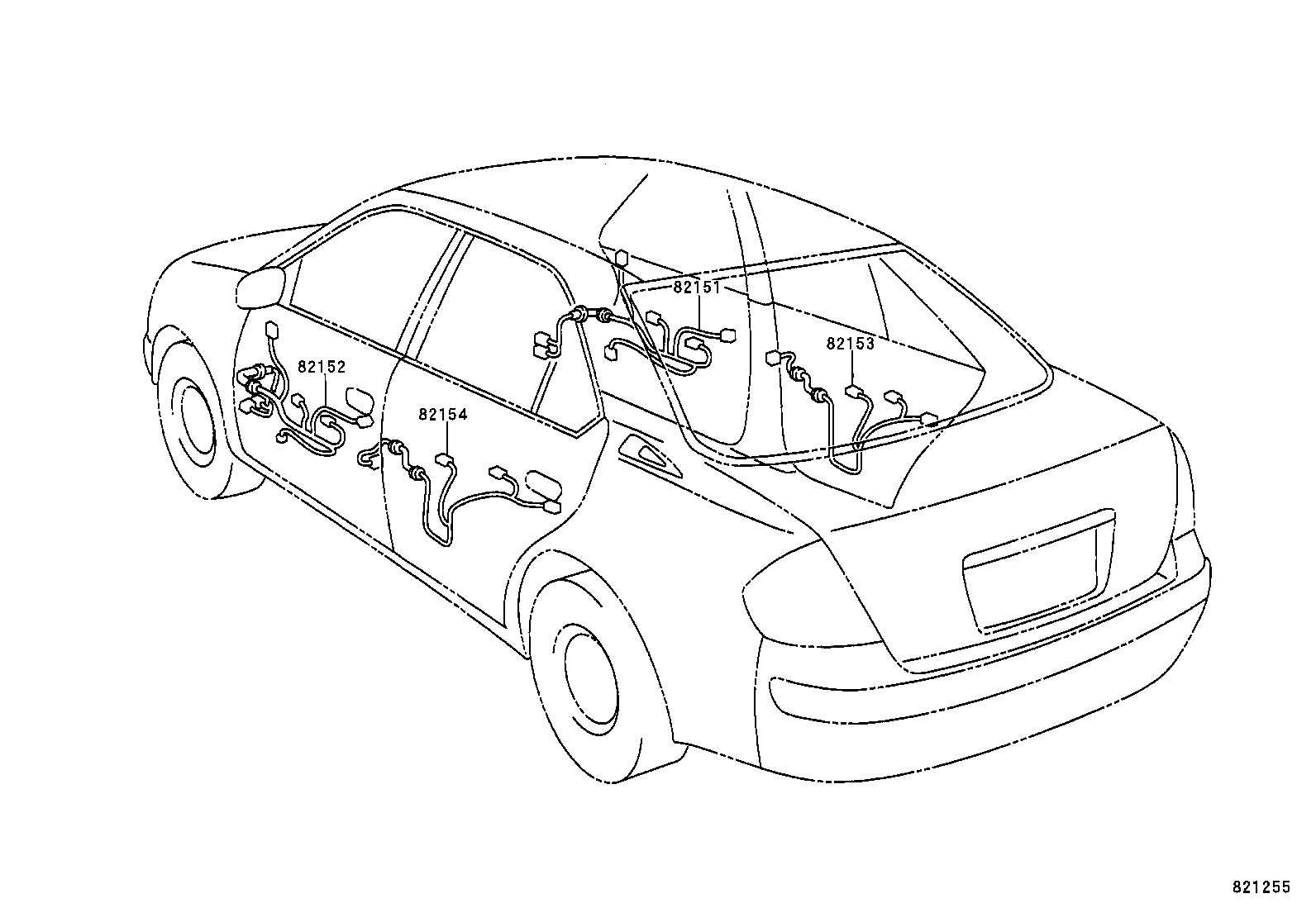

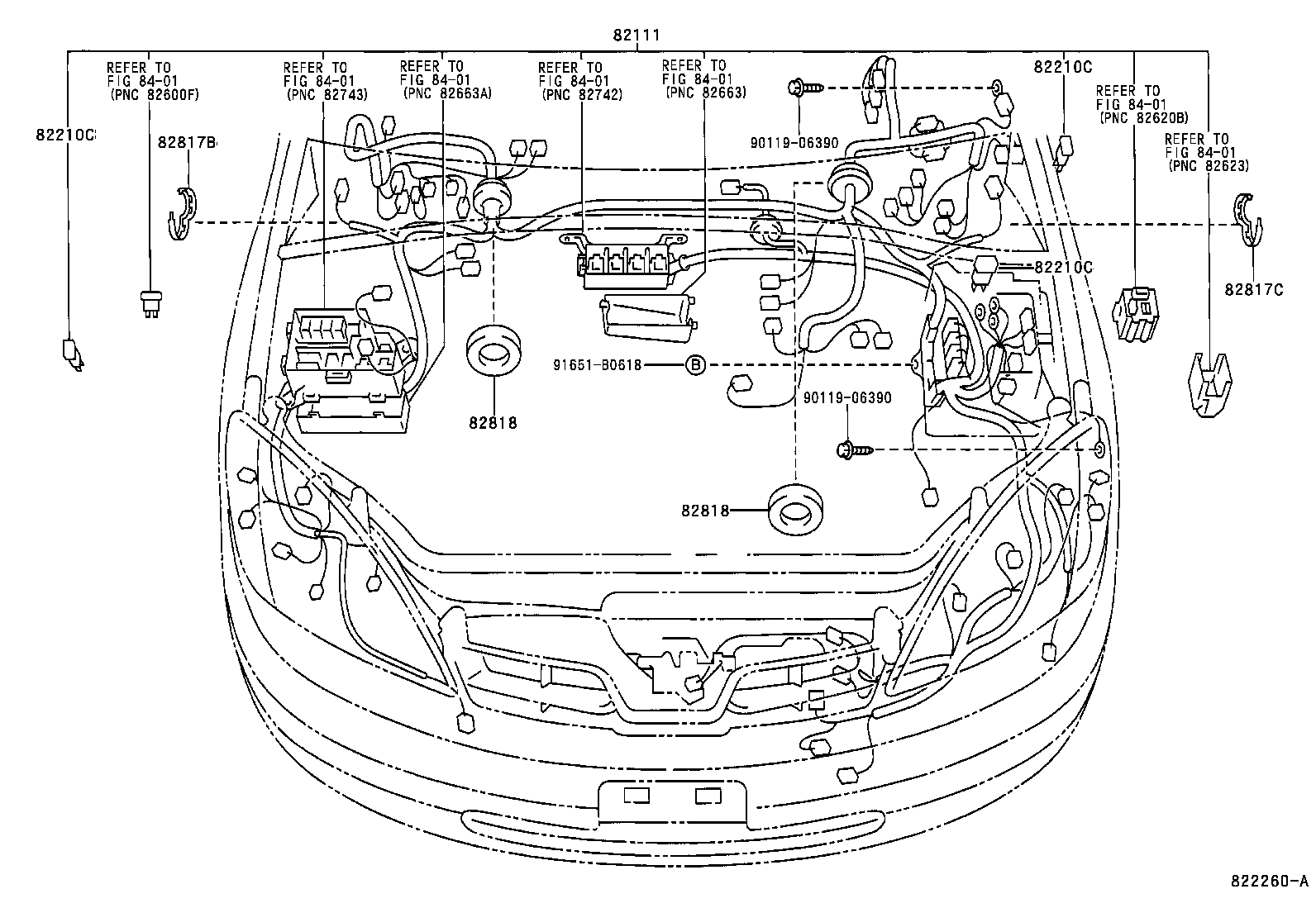

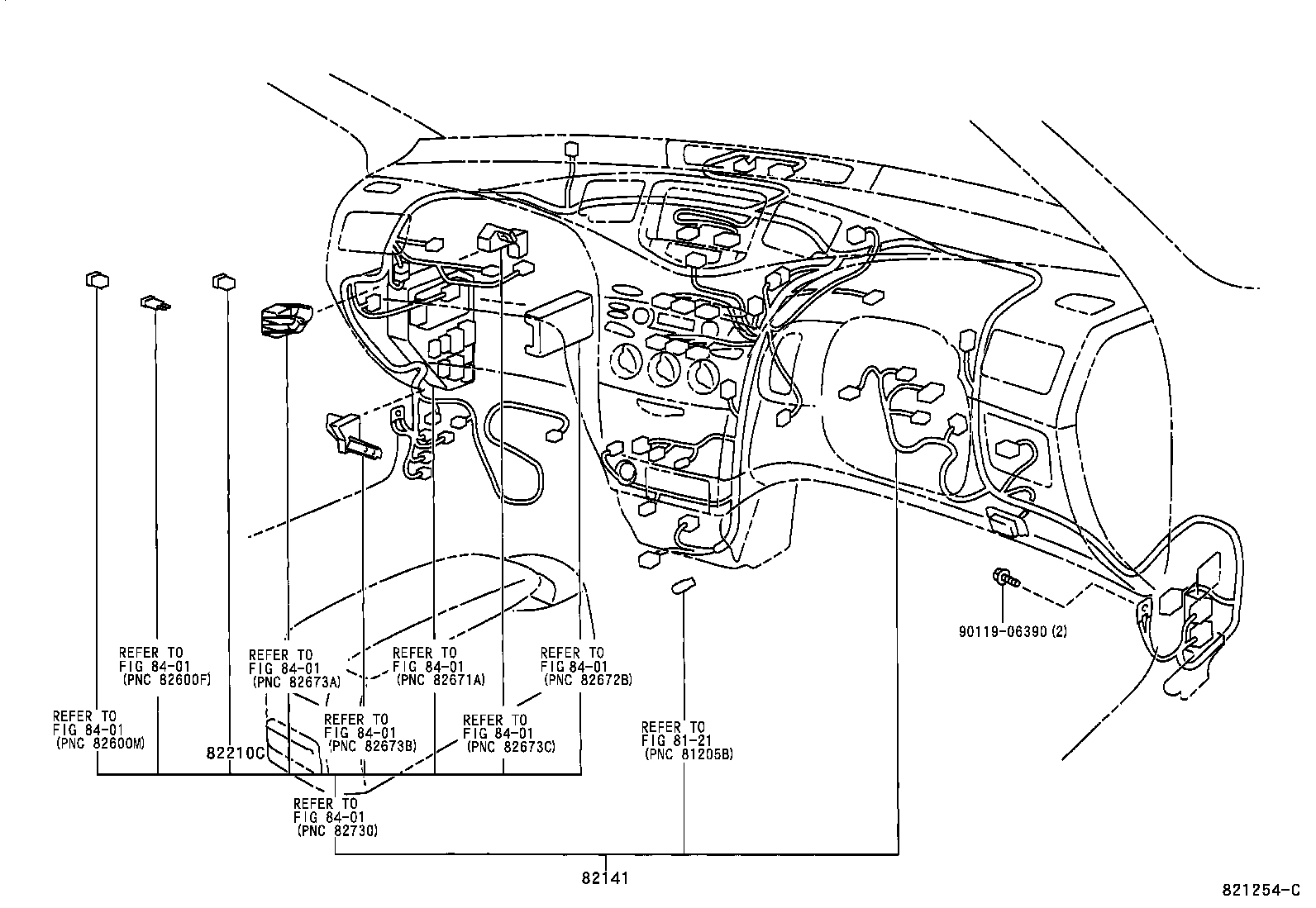

Figure 822259A 822259A 2000-05 → — Figure 822260A 822260A 2000-05 → — Figure 821252A 821252A 2000-05 → — Figure 822261B 822261B 2000-05 → — Figure 822262 822262 2000-05 → — Figure 822263 822263 2000-05 → — Figure 821254C 821254C 2000-05 → — Figure 822265A 822265A 2000-05 → — Figure 821255 821255 2000-05 → — Figure 821256C 821256C 2000-05 → — Figure 822267B 822267B 2000-05 → — Figure 822740 822740 2000-05 → — Figure 823420 823420 2000-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82001C Cable, Bond, NO.2
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82163 Wire, Floor, NO.3
82164 Wire, Frame
82210C Fusible Link
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817J Protector, Wiring Harness, NO.9
82817K Protector, Wiring Harness, NO.10
82817L Protector, Wiring Harness, NO.11
82817M Protector, Wiring Harness, NO.12
82818 Protector, Wiring Harness, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
