Toyota Prius
2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe
Discontinued model
Data version 2004-01

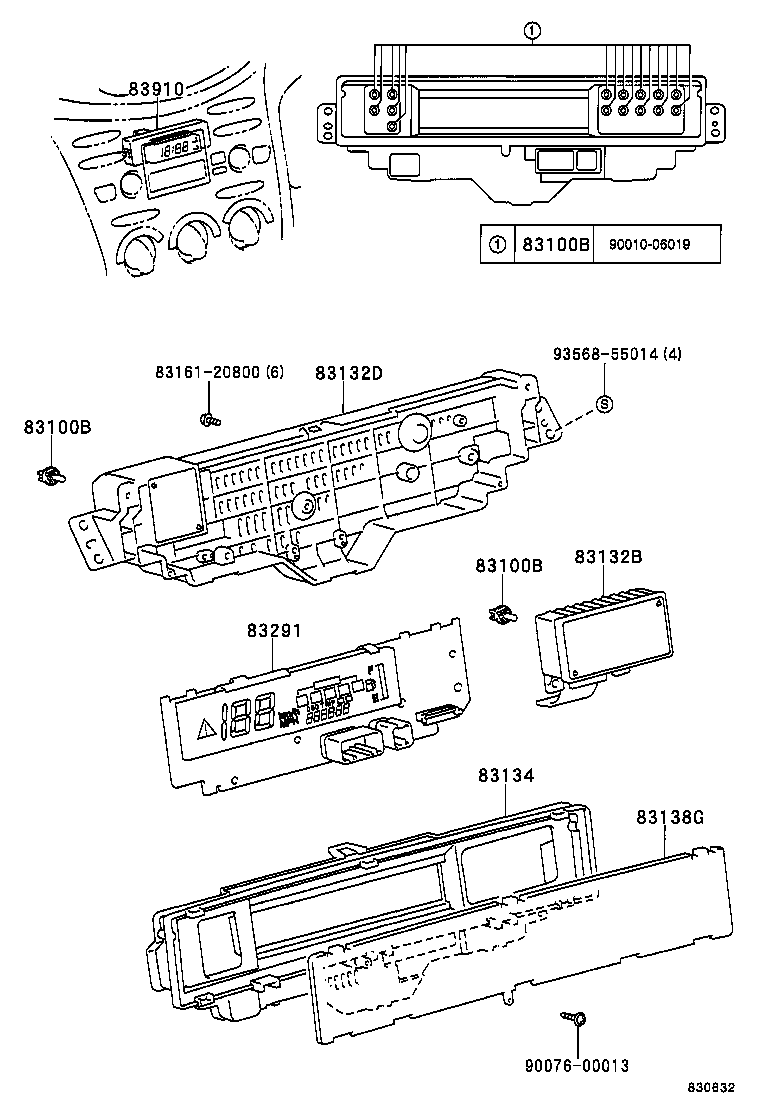

Meter
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83132 | Case, Combination Meter |
| 83132B | Case, Combination Meter NO.3 |
| 83132D | Case, Combination Meter, NO.2 |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138G | Glass, Combination Meter |
| 83291 | Computer, Combination Meter |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
