Toyota Prius
2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe
Discontinued model
Data version 2004-01
Abs & Vsc

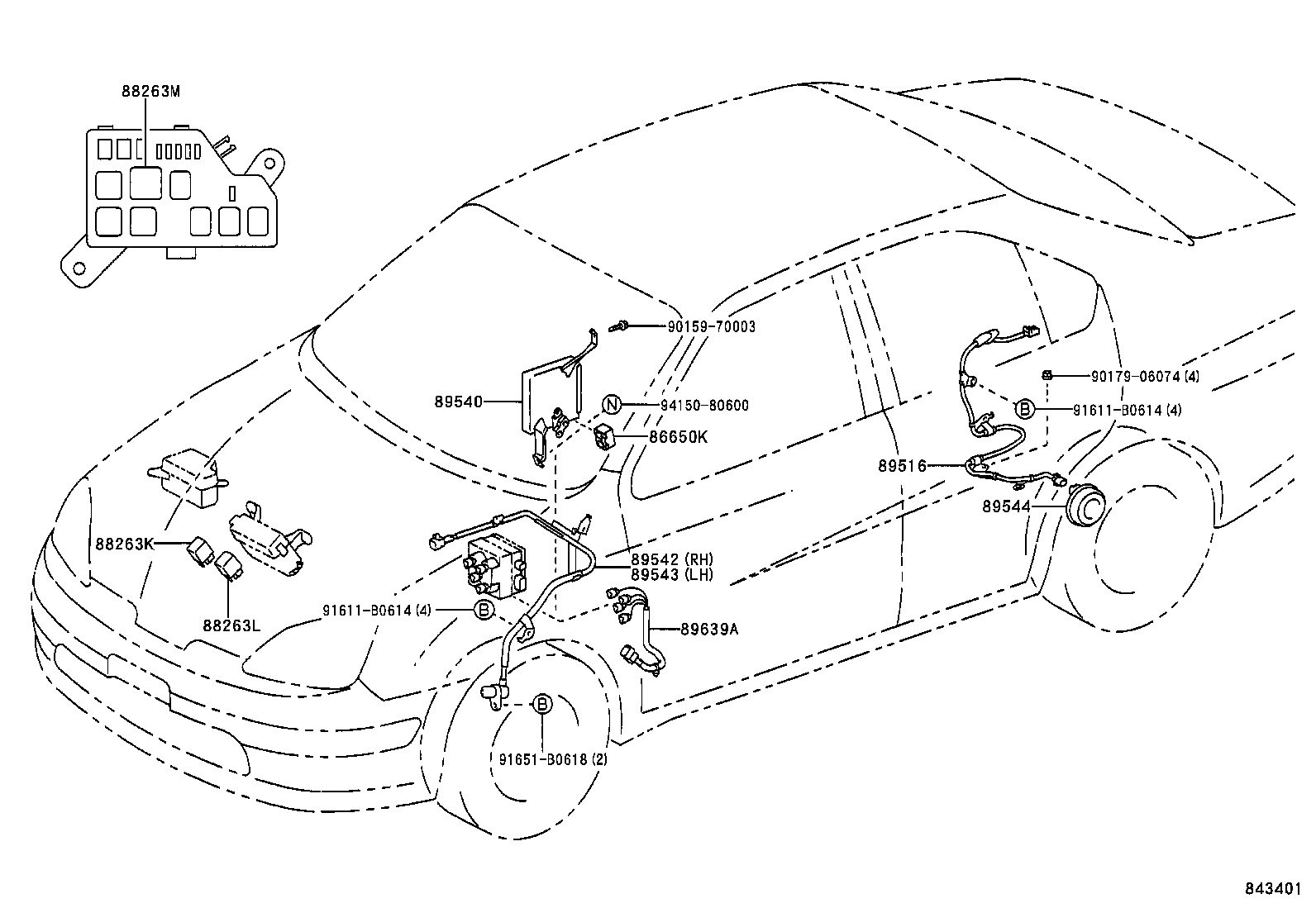

10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86650K | Buzzer Assy, Skid Control |
| 88263K | Relay, Hydro Motor, NO.1 |
| 88263L | Relay, Hydro Motor, NO.2 |
| 88263M | Relay, Abs Solenoid |
| 89516 | Wire, Skid Control Sensor |
| 89540 | Computer Assy, Skid Control |
| 89542 | Sensor, Speed, Front RH |
| 89543 | Sensor, Speed, Front LH |
| 89544 | Sensor, Skid Control |
| 89639A | Wire, Brake Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
