Toyota Prius

2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hev Control Computer

8 part groups · 2 illustrations

Illustrations

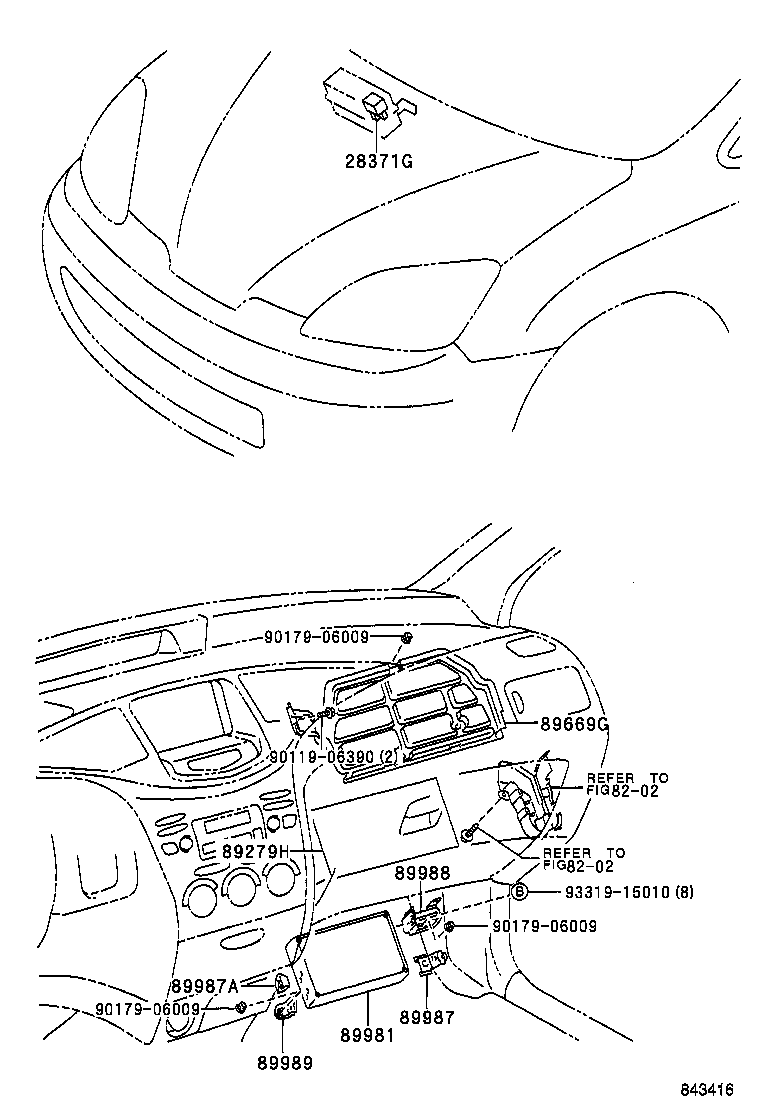

Figure 843415 843415 2000-05 → — Figure 843416 843416 2000-05 → —

Part groups

PNCDescription
28371G Relay, Ignition Contact
89279H Cover, Computer
89669G Bracket, Hybrid Vehicle Control
89981 Computer, Hybrid Vehicle Control
89987 Bracket, Computer, NO.1
89987A Bracket, Computer
89988 Bracket, Computer, NO.2
89989 Bracket, Computer, NO.3
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
