Toyota Prius

2000-05 → 2003-08 · chassis NHW11 · catalogue 222210 · Europe

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Computer

4 part groups · 2 illustrations

Illustrations

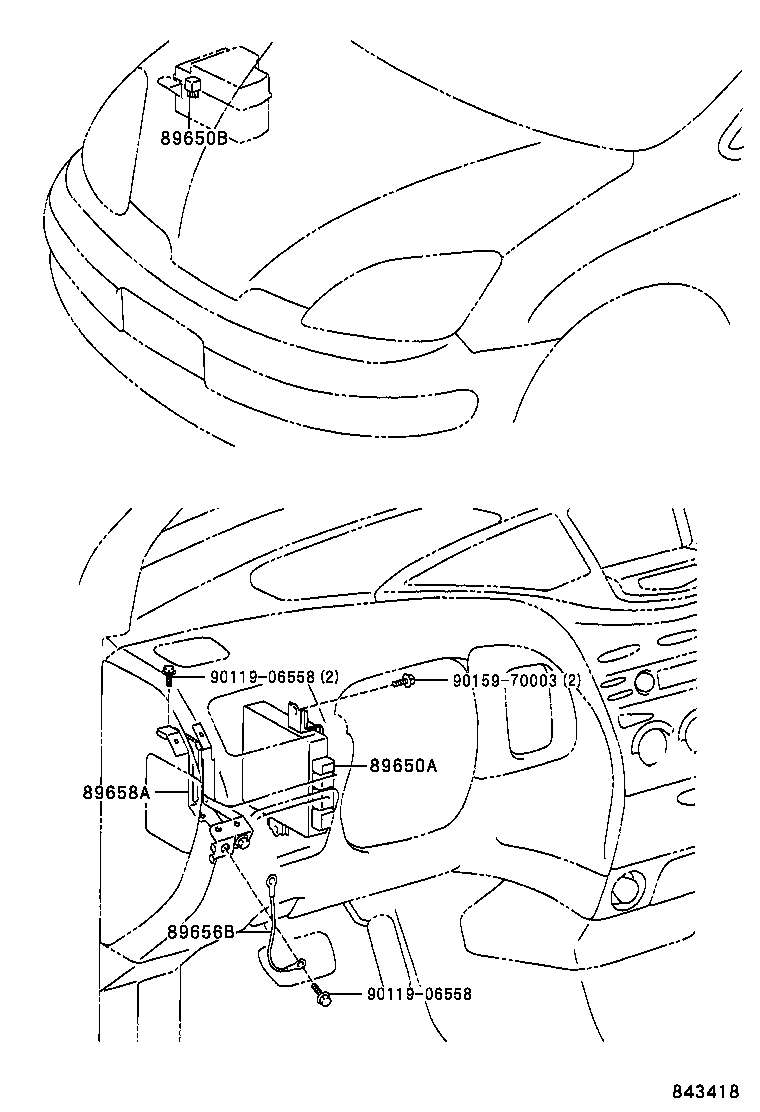

Figure 843417 843417 2000-05 → — Figure 843418 843418 2000-05 → —

Part groups

PNCDescription
89650A Computer Assy, Power Steering
89650B Relay, Power Steering
89656B Wire, Power Steering Earth
89658A Bracket, Power Steering Computer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
